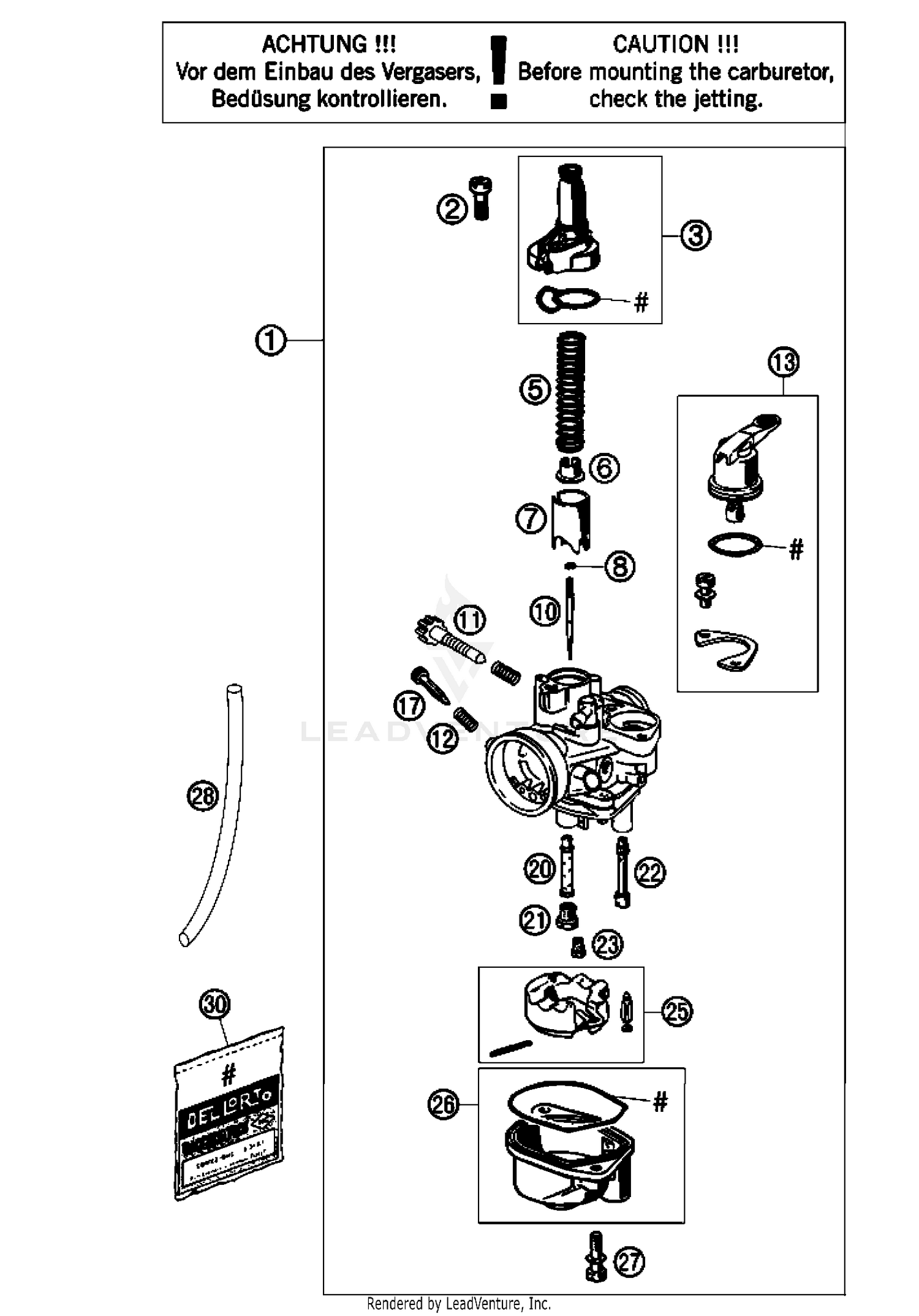

2008 KTM SX 50 MINI Carburetor OEM Parts Diagram
Air & Fuel
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Carburetor Dellorto PHVA 12XS 15
45131001300
Superseded by 45231001400
|
$356.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CYL.HEAD SCREW DIN0084-M 5X16A
0084050163
|
$0.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CARBURETOR COVER DELLOR. 12-14
45131527000
|
$20.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPRING
45131530000
|
$3.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPRING CAP
45131531000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
THROTTLE VALVE 40
45131535000
|
$44.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CLAMP SPRING
45131545000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
JET NEEDLE A10
45131534010
|
$18.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
IDLE ADJUST SCREW
45131517000
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING
45131516000
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STARTING LEVER CPL. DELL.12-14
45131548000
|
$49.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
ADJUST SCREW
45131617000
|
$4.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
ATOMIZER 211FA
45131536000
|
$19.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
MAIN JET 65 DELLORTO
45131023065
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
MAIN JET 70 DELLORTO
45131023070
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
MAIN JET 75 DELLORTO
45131023075
|
$8.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
MAIN JET 80
57031523080
|
$7.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
JET 60 DELLORTO M6X0,75
59030054000
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STARTING JET 60
45131551060
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
IDLING JET 35
45131507035
|
$6.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
IDLING JET 38
45131507038
|
$5.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
IDLING JET 45
45131507045
|
$6.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
FLOAT CPL.
45131509000
|
$31.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
FLOAT BOWL DELLORTO 12-14
45131511000
|
$11.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
CYL.SCREW DIN0084-M 4X20 A
0084040203
|
$0.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
PVC-HOSE 3X5MM
52031137001
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
GASKET SET DELLORTO 12-14 PHVA
45131599000
|
$19.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
