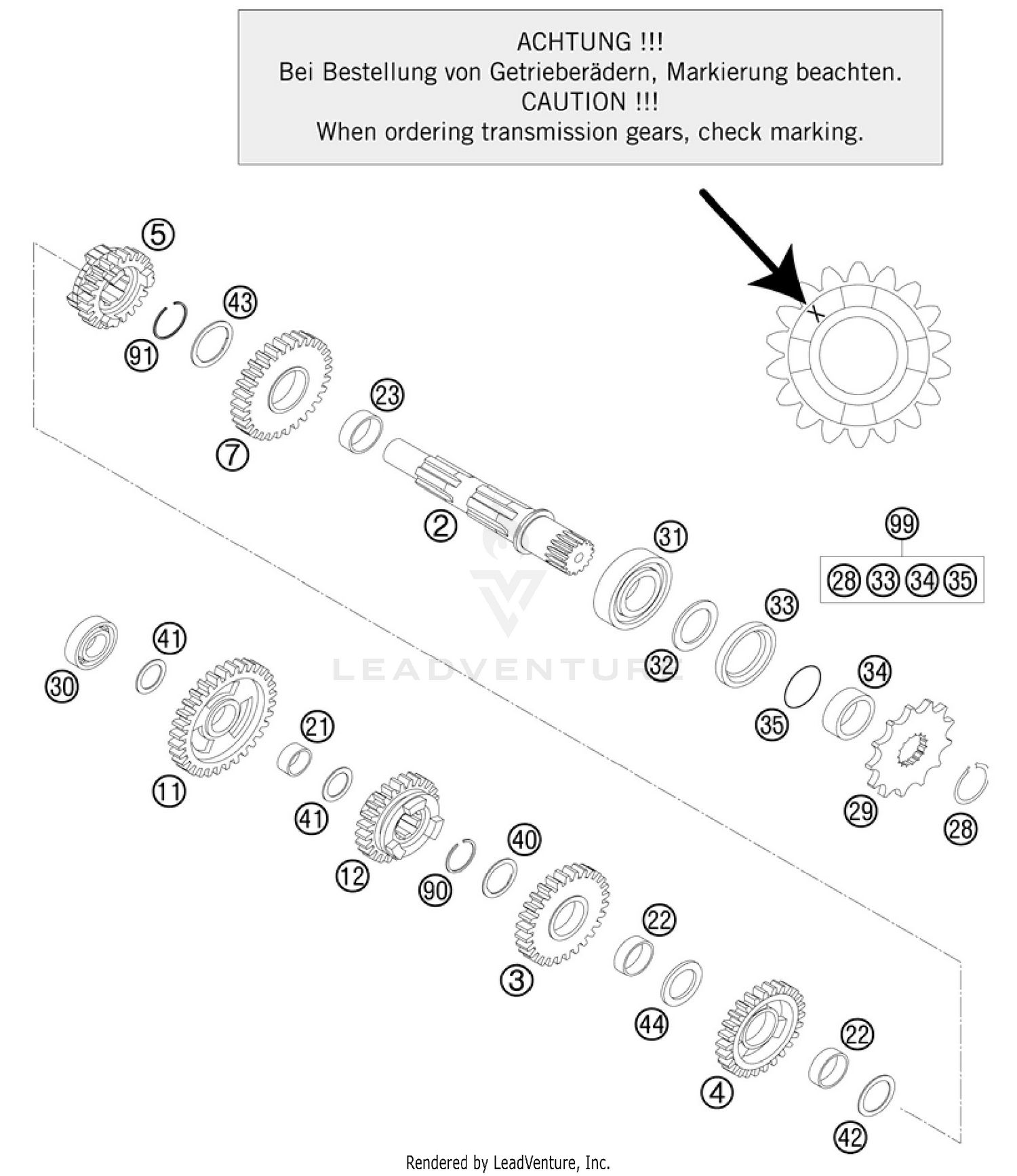

2013 KTM SX 125 Transmission II - Countershaft OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
COUNTER SHAFT 125/200 '98
50333002000
|
$183.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
IDLE G.3RD G.28-T ''3S28H'' 04
50333003100
|
$93.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
IDLE GEAR 4TH G. 4S28 SX 06
50333004100
|
$94.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SLIDING GEAR 6TH G. 6S24 SX 06
50333005600
|
$113.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
IDLER G. 2ND G. 30-T ''2S30'''98
50333006000
|
$98.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
IDLER GEAR 1.G 32-T
50333011600
|
$103.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SLIDING GEAR 5TH G.5S23H SX 06
50333012100
|
$109.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLER GEAR BUSHING 17X20X9,7 B
50333021000
|
$21.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
IDLER GEAR BUSHING 22X25X8,1 C
50333022000
|
$19.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
IDLER GEAR BUSHING 25X28X9,7 D
50333023000
|
$28.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
LOCK RING DIN0471-25X1,64SD
52033096000
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPROCKET 13T
50033029013
Superseded by 79233029013
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPROCKET 14T
50033029014
Superseded by 79233029014
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
BALL BEARING 6003 TN9 C4
0625060031
|
$23.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BALL BEARING 6205 C3 NTN
0625062054
|
$20.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
STOP RING
56033020000
|
$6.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SHAFT SEAL RING 32X45X7 BSLNBR
0760324571
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SPACER BUSHING 12MM
54633014100
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
O-RING 23,00X2,00 NBR70
0770230020
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
STOP DISC 22,2X27,8X1 A
50333040000
|
$4.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
STOP DISC 17,2X26X1 B
50333041000
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
STOP DISK 22,2X28X1 C
50333042000
|
$4.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Stop disk
50333043000
Superseded by 79333043000
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
STOP DISC 22,2X30X2,5
50333044000
|
$6.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#90
LOCK RING 22X1,2
50133090000
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#91
CIRCLIP SW25
52033090100
Superseded by 0417025000
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Counter shaft repair kit
00050000943
Superseded by 50333002010
|
$19.95 | ||
|
Unavailable |
|||
