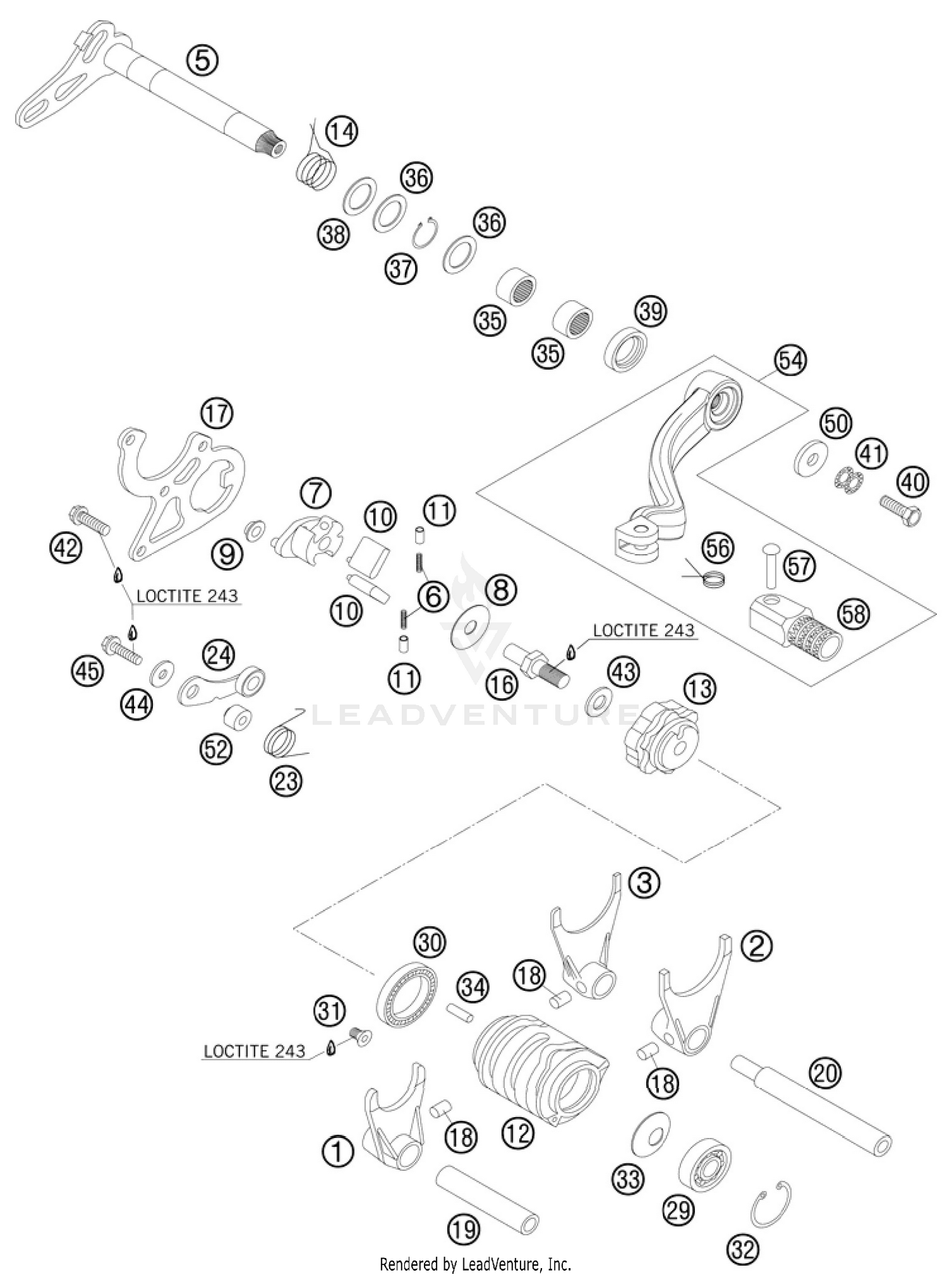

2013 KTM SX 125 Shifting Mechanism OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTING FORK 5TH/6TH GEAR
50334001200
|
$51.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SHIFTING FORK 2ND/4TH GEAR
50334002200
|
$54.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHIFTING FORK 1ST/3RD GEAR
50334003200
|
$51.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SHIFTING SHAFT CPL.
50334005000
Superseded by 50334005100
|
$80.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPRING FOR RATCHET 0,5X11,5
50334007052
|
$2.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
RATCHET SUPPORT 125/200'98
50334007000
|
$79.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
STOP DISK 8,2X26X0,7
50334007054
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BUSHING 6X8X12X4,5
50334007053
|
$6.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SHIFTING RATCHET 125/200
50334007050
Superseded by 50334007150
|
$9.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PRESSURE END PAD 4,1X5,6X8,4
50334007051
|
$14.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SHIFTING DRUM 06
50334012300
|
$105.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
LOCATING DRUM 125/200'98
50334013000
|
$84.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
RETURN SPRING 3MM
50334014000
|
$6.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPECIAL SCREW M8X21,5 WS=12
50334016000
|
$10.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SHIFTING GATE 3MM 125/200'98
50334017000
|
$21.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NEEDLE ROLLER ZRB 6X10
0402061000
|
$6.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SHIFTING ROD DRIVE 11,8X67,5
50334019000
|
$9.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SHIFT. ROD DRIVE END 11,8X94,5
50334020000
|
$26.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
LOCATING LEVER SPRING 2,5MM'98
50334023000
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
LOCATING LEVER CPL. 08
50334024144
|
$13.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BALL BEARING 6000 RS1 C3
0625060006
|
$20.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
BALL BEARING 61805 C3
0625618050
|
$43.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
FLAT H.SCEW DIN7991-M5X10 10.9
0991050102
|
$1.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
LOCK RING DIN0472-26X1,2
0472260120
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SPRING WASHER 12,2X25X0,9
0093251209
|
$2.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$2.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
needle sleeve HK 1412 14x20x12
54632095000
|
$6.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
STOP DISK 14,3X20X1
49033031000
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
retaining ring DIN 471 14x1
0471140100
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
STOP DISK 14,2X22X1,5
49033031015
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
radial shaft seal 14x24x6 B
0760142460
|
$8.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
washer DIN 125 A -8.4
0125080003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
WASHER DIN7349-5X15X2
0349000050
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
HH collar screw M5x20 TX30
0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
STEEL WASHER 6,4X17X3
50232050001
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
SLEEVE FOR LOCKING LEVER
54634052300
|
$2.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
SHIFT LEVER CPL. 2-STROKE 2001
54734031000
|
$79.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#56
SHIFTING LEVER SPRING 250
54634032100
|
$2.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#57
BOLT 6X25 FOR SHIFT LEVER
54634031050
|
$7.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#58
STEP PLATE FOR SHIFT LEVER 250
54634131000
|
$31.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
