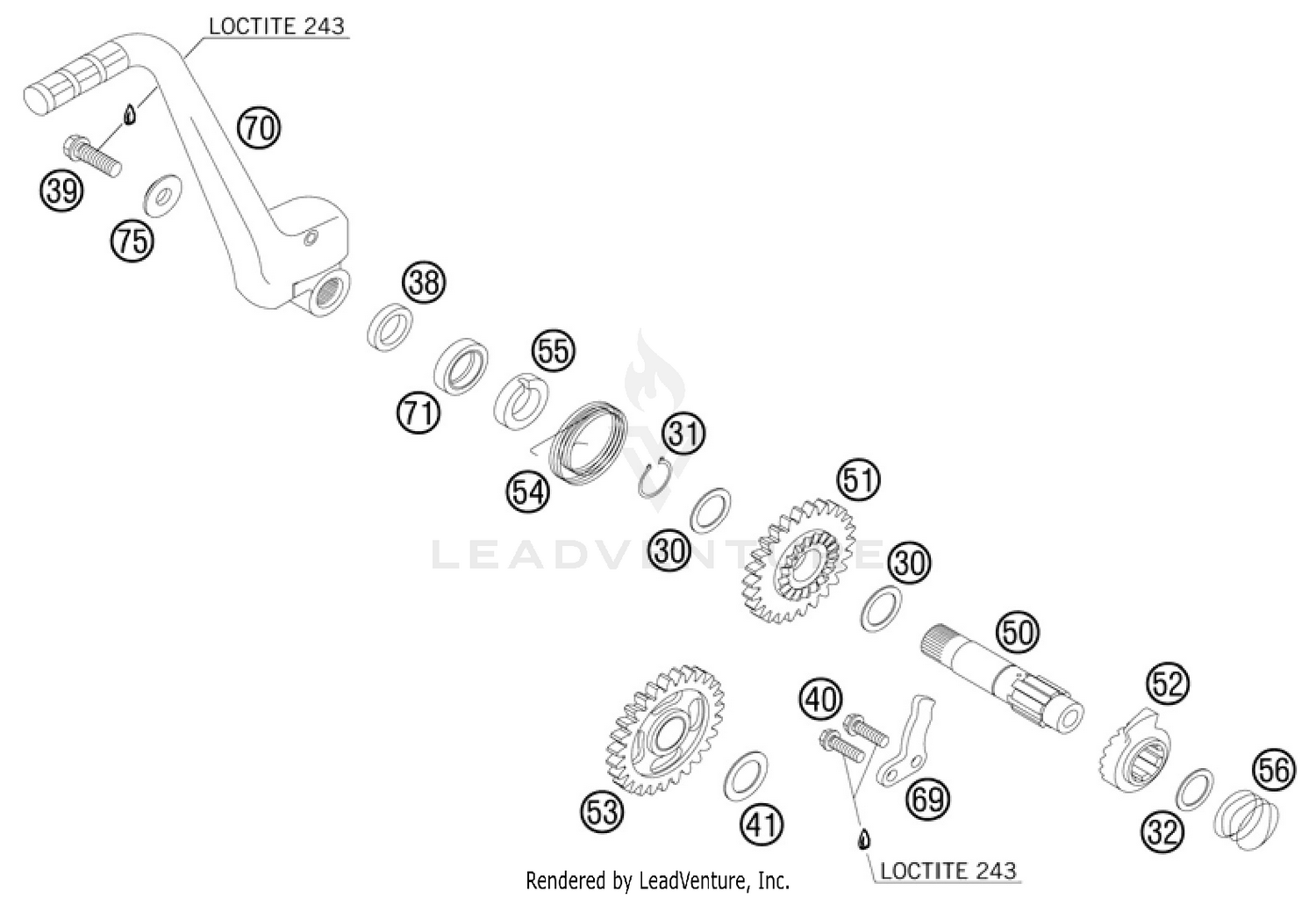

2013 KTM SX 125 Kick Starter OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#30 STOP DISK 17,2X24X1 50333030000	$4.26
Available: Ships in 7-12 days. Add to View Price
#31 CIRCLIP DIN0471-17X1 0471170010	$1.18
Available: Ships in 7-12 days. Add to View Price
#32 THRUST WASHER DIN0988-16X22X1 0988162210	$1.28
Available: Ships in 7-12 days. Add to View Price
#38 SPACER BUSHING 16X23X26X6,1 50333038100	$7.59
Available: Ships in 7-12 days. Add to View Price
#39 HH collar screw M8x20 0025080206	$1.09
Available: Ships in 7-12 days. Add to View Price
#40 HH collar screw M6x16 TX30 0025060166	$2.02
Available: Ships in 7-12 days. Add to View Price
#41 STOP DISC 17,2X26X1 B 50333041000	$2.13
Available: Ships in 7-12 days. Add to View Price
#50 KICKSTARTER SHAFT 125/200'98 50333050000	$90.75
Available: Ships in 7-12 days. Add to View Price
#51 KICKSTART.GEAR 26-T 125/200'98 50333051026	$109.65
Available: Ships in 7-12 days. Add to View Price
#52 KICKSTARTER RATCHET 50333052000	$101.62
Available: Ships in 7-12 days. Add to View Price
#53 INTERMEDIATE GEAR 27-T 04 50333053127	$70.32
Available: Ships in 7-12 days. Add to View Price
#54 KICKSTARTER SPRING 2,6MM '98 50333054000	$9.06
Available: Ships in 7-12 days. Add to View Price
#55 DRIVING HUB 125/200'98 50333055000	$5.35
Available: Ships in 7-12 days. Add to View Price
#56 SPRING 1,4MM '98 50333056000	$2.84
Available: Ships in 7-12 days. Add to View Price
#69 STOP MET.SHEET 4MM 125/200'98 50333069000	$15.87
Available: Ships in 7-12 days. Add to View Price
#70 KICK STARTER CPL. 50333070244	$199.69
Available: Ships in 7-12 days. Add to View Price
#71 SHAFT SEAL RING 17X28X7 B 0760172870	$7.98
Available: Ships in 7-12 days. Add to View Price
#75 WASHER 8,2X22X4,5 '98 50333075000	$5.67
Available: Ships in 7-12 days. Add to View Price
