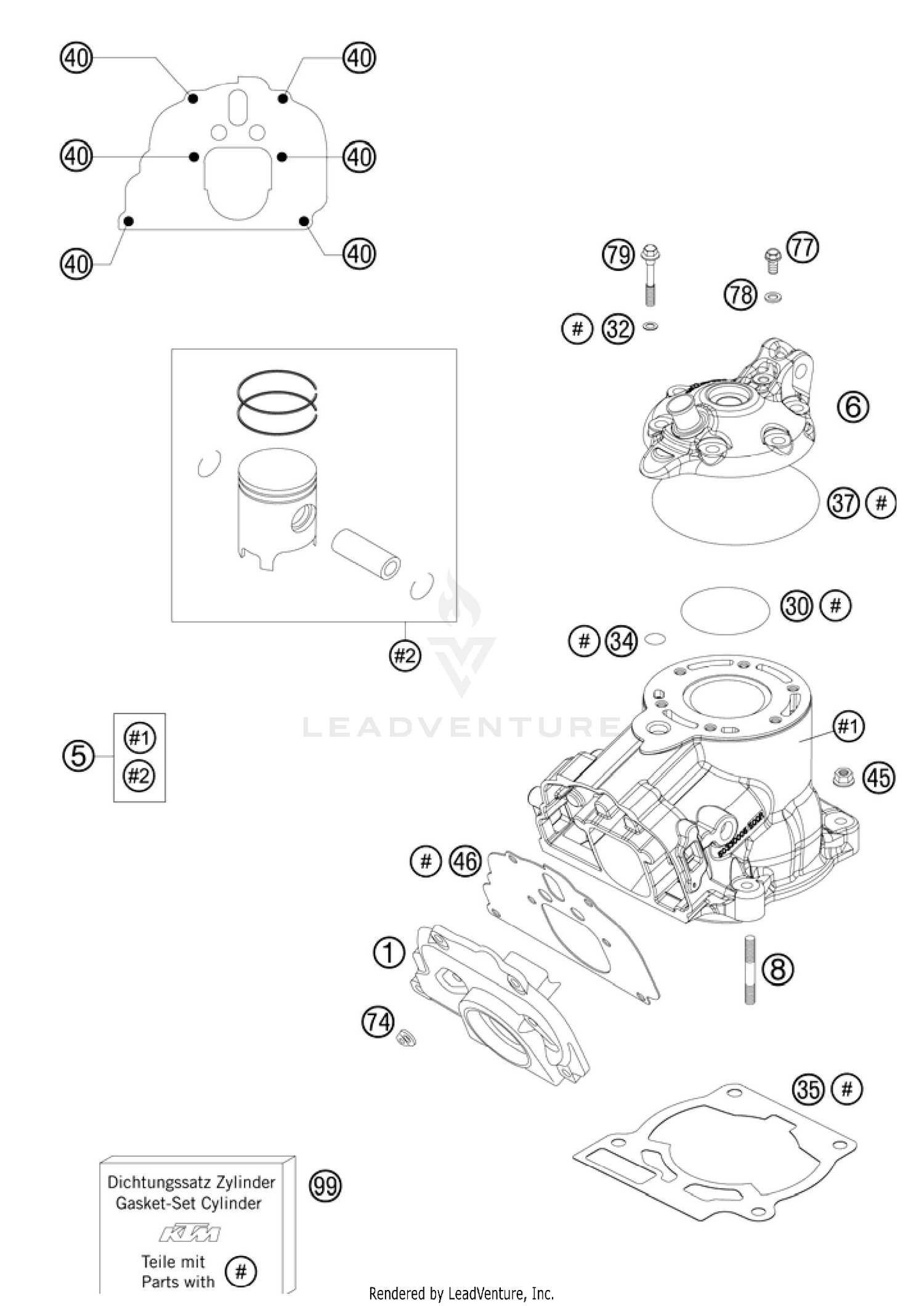

2013 KTM SX 125 Cylinder, Cylinder Head OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INTERMEDIATE FLANGE 125 06
50337001200
|
$47.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CYLINDER+PISTON CPL.
50330038600
|
$884.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CYLINDERHEAD 125 SX/EXC 2011
50330006600
|
$163.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
STUD DIN0835-M 8X27
0835080276
|
$2.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
O-RING 62,00X2,00 VITON
0770062020
|
$9.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
CU-SEAL RING DIN7603- 7,3X12X1
0603070121
|
$0.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
O-RING 12X2 VITON GREEN
0770012021
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,20MM
50330035020
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,25MM
50330035025
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,40MM
50330035040
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,50MM
50330035050
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,75MM
50330035075
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
O-RING 86X2 VITON75SHORE GREEN
0770086020
|
$6.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
HH COLLAR SCREW M 5X20 WS=6
0014050203
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
HH COLLAR NUT M 8 WS=12
50330045000
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
INTERMEDIATE FLANGE GASKET
50337046200
Superseded by 50337046300
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#74
RETAINING PLATE
51005074000
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#77
HH collar screw M6x10 TX30
0025060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#78
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#79
CYLINDER HEAD SCREW
50330079000
Superseded by 50430079000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
CYLINDER GASKET SET 125/200 07
50330097100
|
$53.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
