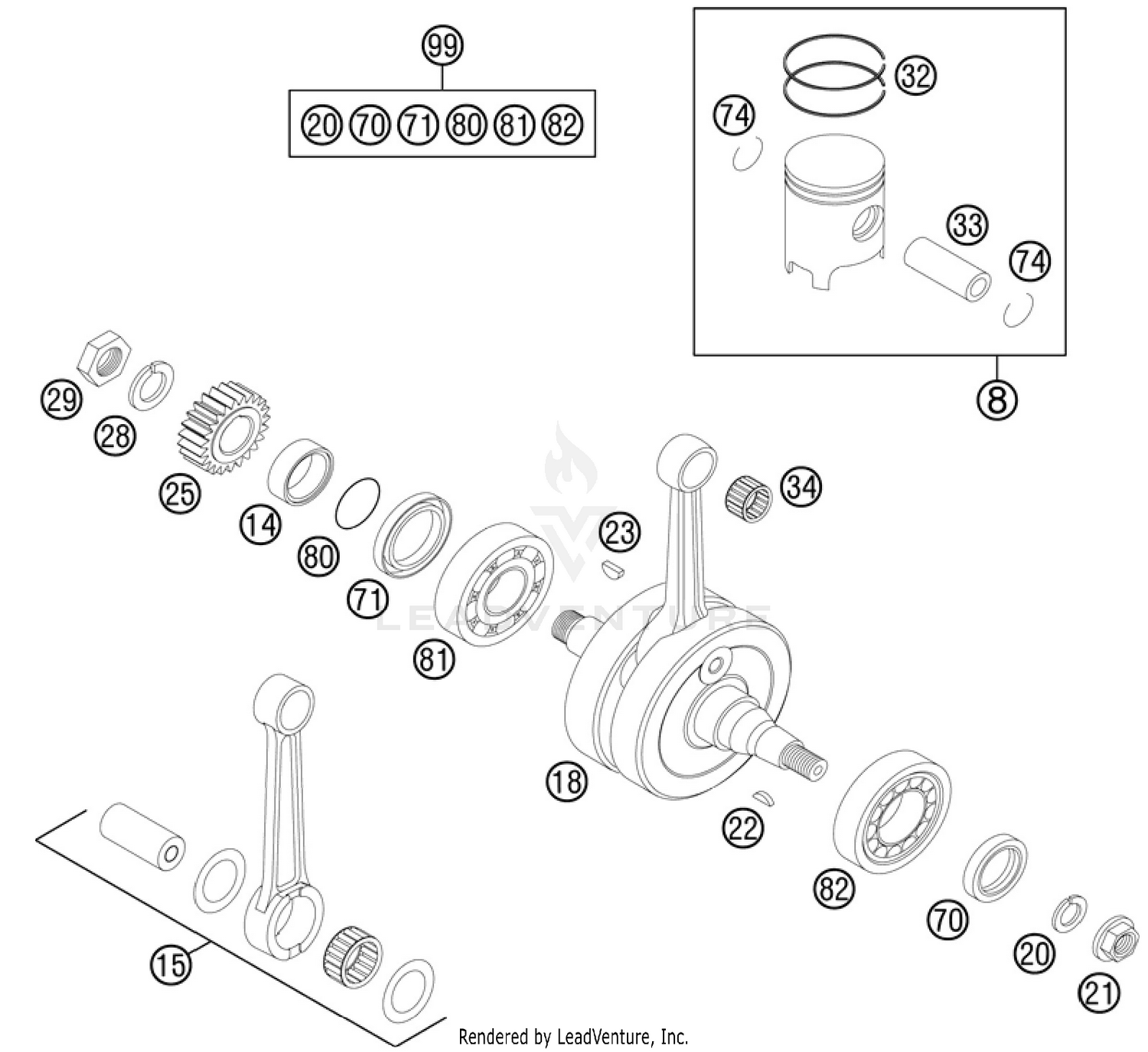

2013 KTM SX 125 Crankshaft, Piston OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#8
Piston I cpl. 125 MX
50330207000 I
Superseded by 50530007000 I
|
$191.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Piston II cpl. 125 MX
50330207000 II
Superseded by 50530007000 II
|
$191.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPACER BUSHING 12MM
54633014100
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CON.ROD REPAIR KIT 125'07
50330015100
|
$367.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CRANKSHAFT CPL. 125 SX 2007
50330018400
|
$594.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
LOCKING RING VSK 12
50230029012
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COLLAR NUT M12X1 R/S
49030021000
|
$9.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WOODRUFF KEY DIN6888-3X5X13
0888030050
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WOODRUFF KEY 5X6,5 HARDED
6946005
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PRIM. PINION 23-T 125/200'98
50332023023
|
$90.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
LOCKING RING VSK 16
50230029016
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
Hex nut M 16x1.5 left
50330029000
Superseded by 0009361600800S
|
$9.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
TRAPEZOID RING 125 2008
50330032600
|
$42.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
PISTON PIN 15X45,2 125 2001
50330033500
|
$17.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
NEEDLE BEARING KBK 15X19X20
51030034000
|
$24.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#70
SHAFT SEAL RING 25X35X7 BTSL
0760253570
|
$17.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#71
Shaft seal ring 32x45x6.5
0760324564
Superseded by 0760324566
|
$12.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#74
WIRE LOCK RING 15X1
50330074500
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
O-RING 25,00X2,00 NBR 70
0770250020
|
$2.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#81
BALL BEARING 6305 JR2 CS36
0625063055
|
$43.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#82
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
|
$83.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Crankshaft repair kit
00050002300
Superseded by 52330018288
|
$107.29 | ||
|
Unavailable |
|||
