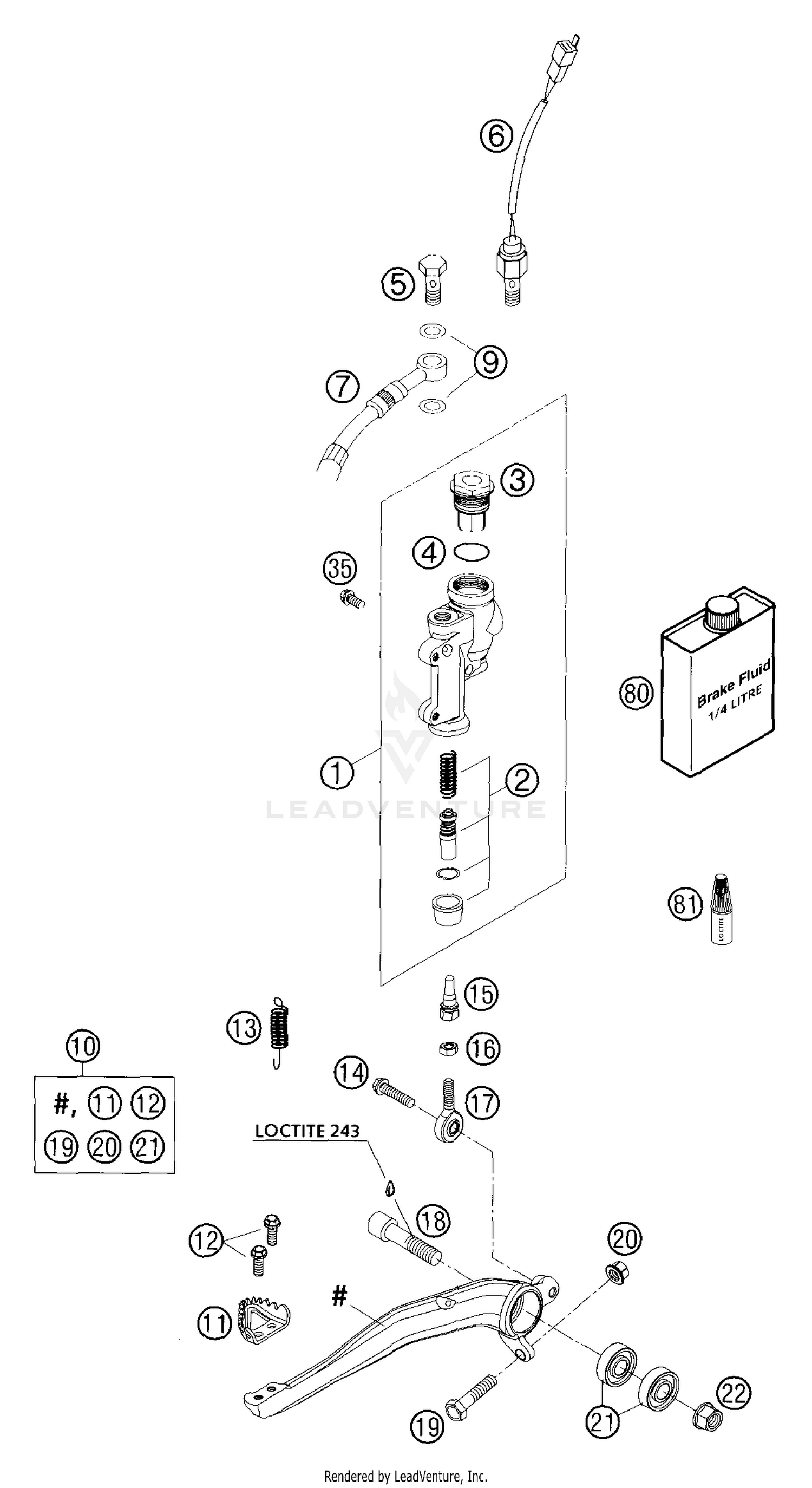

2004 KTM MXC 300 Rear Brake Control OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR BRAKE CYLINDER CPL.SX 09
54813060000
Superseded by 77013060044
|
$296.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
REAR BRAKE CYLINDER CPL.SX 09
54813060100
Superseded by 77013060044
|
$296.89 | ||
|
Unavailable |
|||
|
#2
REPAIR KIT PISTON 13MM 06
54813061000
Superseded by 54813061200
|
$54.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
REAR BRAKE CYL. COVER CPL. 04
54813062000
Superseded by 54813062100
|
$45.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
REAR BRAKE CYL. COVER CPL. 04
54813062100
|
$45.03 | ||
|
Unavailable |
|||
|
#4
FOOT-BRAKE CYL. GASKET SX 03
54813063000
|
$9.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
banjo bolt M10x1x19 black
54813020100
|
$9.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$34.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Brake hose rear 655 mm
54813070000
Superseded by 54813070200
|
$103.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FOOT BRAKE LEVER CPL. 03
54813050044
|
$120.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STEP PLATE FOR BRAKE LEVER
54813051000
|
$10.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PUSH ROD L=28MM 03
54813056000
|
$15.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Joint head CMP6
54813055000
Superseded by 54813055100
|
$18.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
AH-COLLAR SCREW M10X40 ISA45
0912100406
Superseded by 0032100406S
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPECIAL SCREW M8X26 WS=10
59001037000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
flanged nut M8 WS10
46030045000
|
$7.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BALL BEARING 6000/C3
0625060001
|
$13.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
BRAKE FLUID DOT 5.1
306054
|
|||
|
Unavailable |
|||
|
#81
LOCTITE 243 BLUE 5 ML
6899785
|
$27.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
