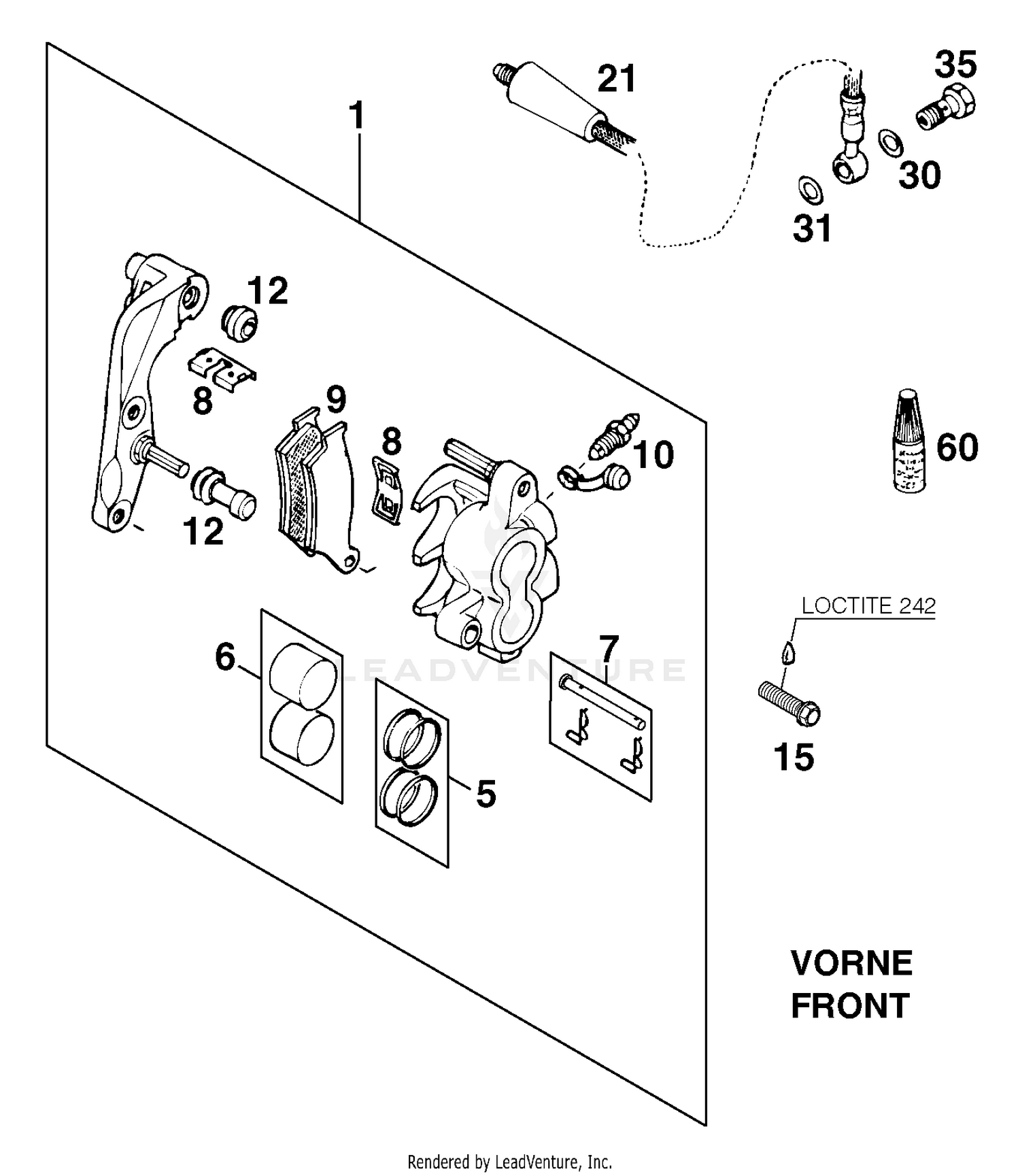

1999 KTM EXC 125 Brake Caliper Front OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 BRAKE CALIPER FRONT BREMBO '99 50313015044
Unavailable
#5 REPAIR KIT 28MM 54613205000	$20.19
Available: Ships in 7-12 days. Add to View Price
#6 REPAIR KIT PISTON 28MM 54613206000	$43.47
Available: Ships in 7-12 days. Add to View Price
#7 BOLT CPL. 6X56 54613210100	$18.89
Available: Ships in 7-12 days. Add to View Price
#8 RETAINING PLATE SET BREMBO 54613212000	$21.37
Available: Ships in 7-12 days. Add to View Price
#9 BRAKE PAD SET FR. TOSHIBA H38 50313030000	$65.26
Available: Ships in 7-12 days. Add to View Price
#9 BRAKE PAD SET FERODO ID450FF 54613209044 Superseded by 54613209244	$34.46
Available: Ships in 7-12 days. Add to View Price
#10 BLEEDER SCREW WITH CAP 54513214000 Superseded by 60013020000	$6.88
Available: Ships in 7-12 days. Add to View Price
#12 CUP SET SHORT 54613218000 Superseded by 54613218100	$22.25
Available: Ships in 7-12 days. Add to View Price
#15 HH collar screw M8x35 TX40 0015080353 Superseded by 0025080356	$3.79
Available: Ships in 7-12 days. Add to View Price
#21 BRAKE HOSE FR.MARZ. 1290MM '98 50313011100	$83.26
Available: Ships in 7-12 days. Add to View Price
#21 BRAKE HOSE FRONT WP 1195MM '97 58313010000	$56.59
Available: Ships in 7-12 days. Add to View Price
#21 BRAKE HOSE FRONT WP 1290MM 97 58313010100	$75.39
Available: Ships in 7-12 days. Add to View Price
#30 CU-SEAL RING DIN7603-10X16X1 42013226000	$1.79
Available: Ships in 7-12 days. Add to View Price
#31 CU-SEAL RING DIN7603-10X16X1,5 42013026000	$1.89
Available: Ships in 7-12 days. Add to View Price
#35 HOLLOW SCREW M10X1X19 50213025000	$6.05
Available: Ships in 7-12 days. Add to View Price
#60 LOCTITE 243 BLUE 5 ML 6899785	$27.99
Available: Ships in 7-12 days. Add to View Price
