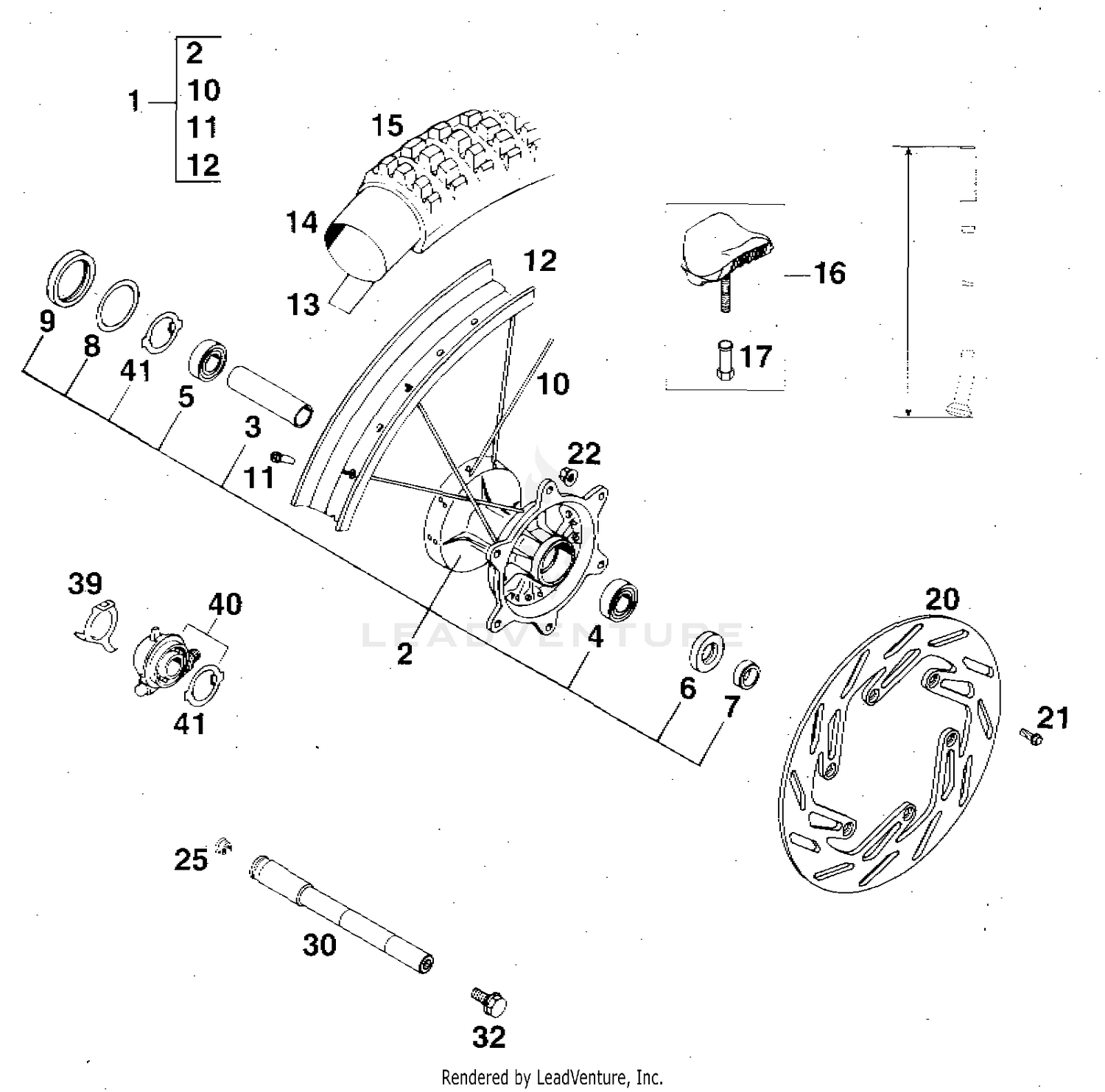

1997 KTM EXC 125 Front Wheel EXC, EGS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Electrical
+
Exhaust
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL 1,6x21'' DID '93
5800900114490
|
$470.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FRONT WHEEL HUB CPL. SIL.17MM
5460901004490
Superseded by 5460911004490
|
$251.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEAR.SPACER TUBE 17,5X22X64,5
54609011000
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR. 6003-2RSH/C3HMTF
0625060037
|
$30.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GR.BALL BEAR. 6203-2RSHC3HMTF
0625062032
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SEAL RING
0760253571
|
|||
|
Unavailable |
|||
|
#7
SPACER
54609051000
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER 40 X 52 X 0,15 '92
58111054000
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SHAFT SEAL RING 40X52X7 B
0760405270
|
$11.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPOKE M5X234-15G 21'' DDE
58309071234
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NFPLE M5
56509072000
|
|||
|
Unavailable |
|||
|
#12
RIM FRONT 1,6X21'' EXCEL AL7
54609070200
Superseded by 78109070000
|
$205.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RIM BAND
51009073000
|
|||
|
Unavailable |
|||
|
#14
TUBE
51009075000
|
|||
|
Unavailable |
|||
|
#15
TUBE
54609074700
|
|||
|
Unavailable |
|||
|
#15
TUBE
54609174000
|
|||
|
Unavailable |
|||
|
#16
Tyre locker 1,60"
51009100100
Superseded by 78109090200
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT FOR WHEEL HOLDER
50310090050
Superseded by 77110090050
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BRAKE DISC FRONT D=260MM 05
56509060700
Superseded by 54809060200
|
$223.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SELF ROCKING NLT
56509064000
|
|||
|
Unavailable |
|||
|
#25
PLUG SFL13
55009086000
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
FRONT AXLE
58009181600
|
|||
|
Unavailable |
|||
|
#32
HH COLLAR SCREW M10X20 WS=17
49032011000
|
$5.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
BRACKET FOR SPEEDOMETER DRIVE
58111052150
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPEEDOMETER DRIVE 748217(3,0)
58111052100
|
$47.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#
SPEEEDOMETER DRIVE
58111152100
|
|||
|
Unavailable |
|||
|
#41
DRIVING DOG F.SPEEDOM.DRIVE'92
58111053100
|
$6.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
