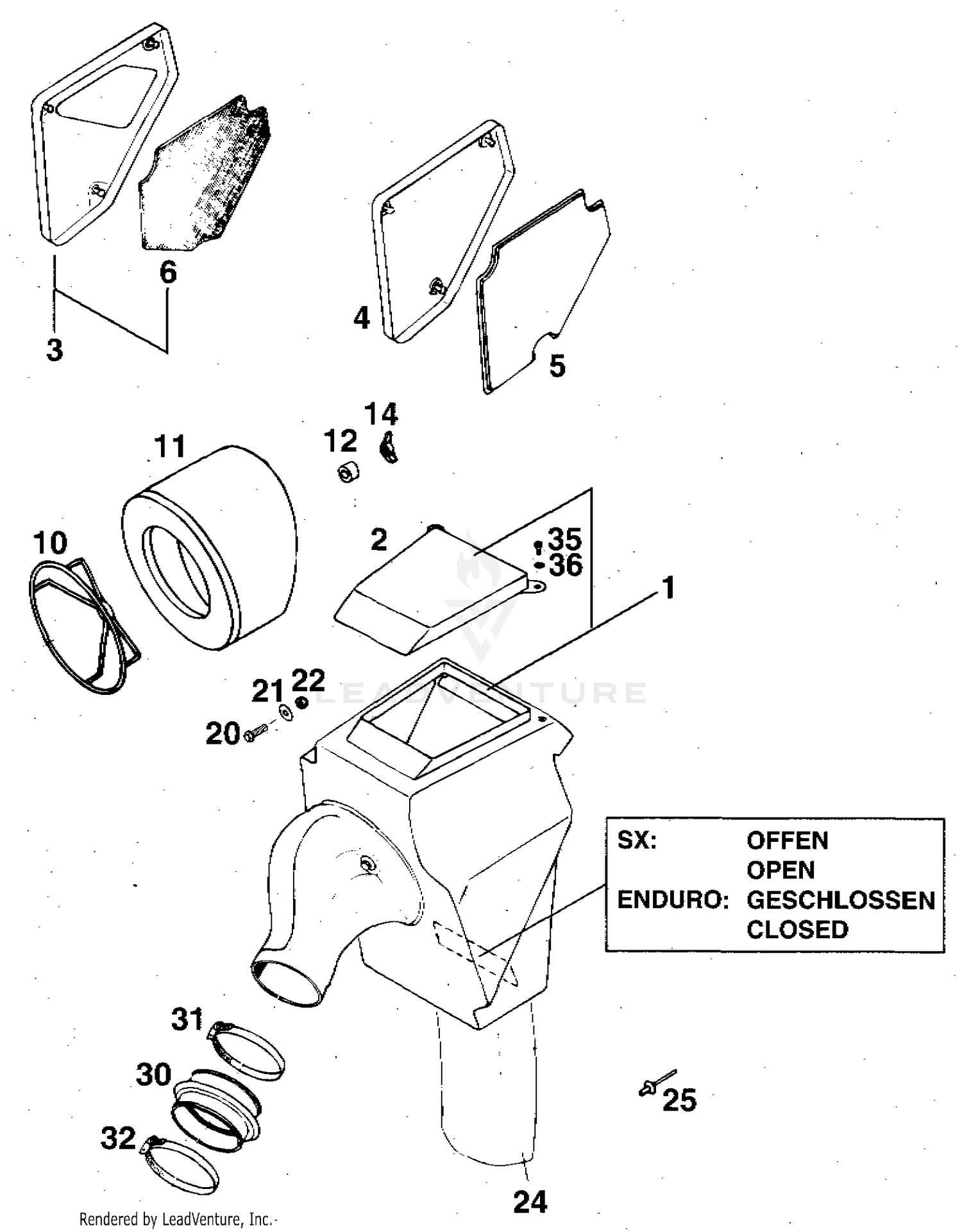

1997 KTM EXC 125 Air Filter Box OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Electrical
+
Exhaust
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR FILTER 60X
50206001100
|
|||
|
Unavailable |
|||
|
#1
AIR FILTER SOX
50206501100
|
|||
|
Unavailable |
|||
|
#2
AIR FILTER COVER
50206003000
|
|||
|
Unavailable |
|||
|
#3
AIR FILTER COVER
50206002100
|
|||
|
Unavailable |
|||
|
#4
AIRFILTER COVER
50206502050
|
|||
|
Unavailable |
|||
|
#5
AIRFILTER COVER
50206502051
|
|||
|
Unavailable |
|||
|
#6
FOAM RUBBER
50206002052
|
|||
|
Unavailable |
|||
|
#10
FILTER SUPPORT 125/500 '89
50106016100
|
$26.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
AIRFILTER
56506015100
|
$29.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BUSHING 6,5X15X10 ALU
50206017050
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WING NUT
56003076000
|
|||
|
Unavailable |
|||
|
#20
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER DIN9021-A 6,4
0021060003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
FENDER
50206010000
|
|||
|
Unavailable |
|||
|
#25
BLIND RIVET
43206043000
|
|||
|
Unavailable |
|||
|
#30
CARBURETOR CONNECTION BOOT 125
50106026000
|
$16.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
HOSE CLAMP 60-80MM
55006028000
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
HOSE CLAMP 50-70MM
51006027000
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYL.HEAD SCREW DIN0084-M 4X8 A
0084040083
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
WASHER DIN0125-A 4,0
0125040003
|
$0.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
