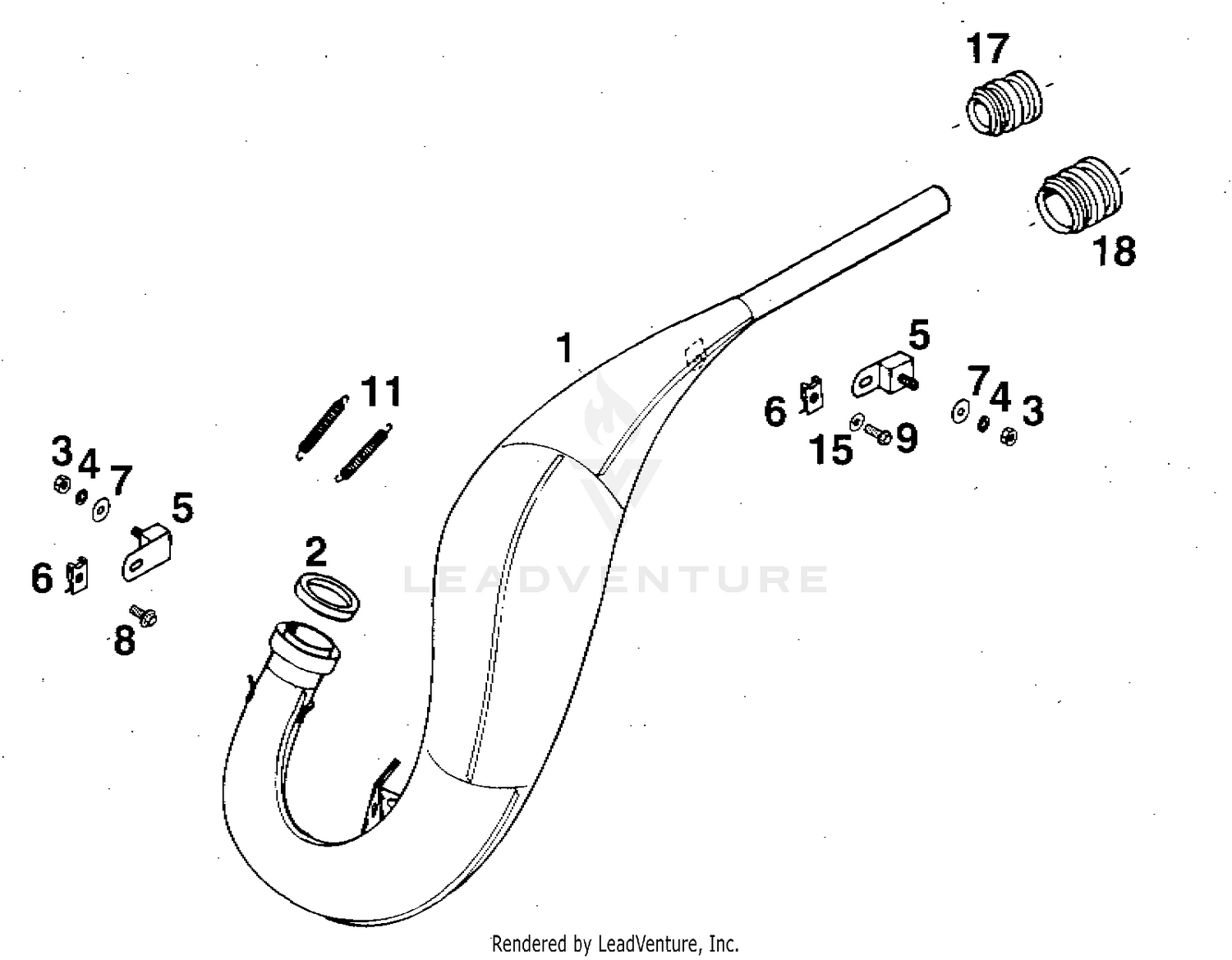

1996 KTM EXC 125 Exhaust Pipe OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE '94/95 NICKEL
50205070400
|
$300.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
EXHAUST PIPE '94 NICKEL '94
50205170400
|
$333.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
EXHAUST PIPE 125 EGS
50205670400
|
|||
|
Unavailable |
|||
|
#1
EXHAUST PIPE 125 EGS
50205670600
|
|||
|
Unavailable |
|||
|
#2
SILIC. GASKET
50205050000
|
|||
|
Unavailable |
|||
|
#3
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SWINGELEMENT
54605262000
|
|||
|
Unavailable |
|||
|
#6
clip nut M6
54603048100
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
washer DIN 9021 A - 5.3
0021050003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TENSION SPRING L=55MM
51005063000
|
$5.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
spring washer DIN 137 B - 6
0137060003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
RUBBER SLEEVE D=21MM/23MM '93
54605057000
|
$20.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SILICON SLEEVE D=29/31MM
50205057000
|
$32.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
