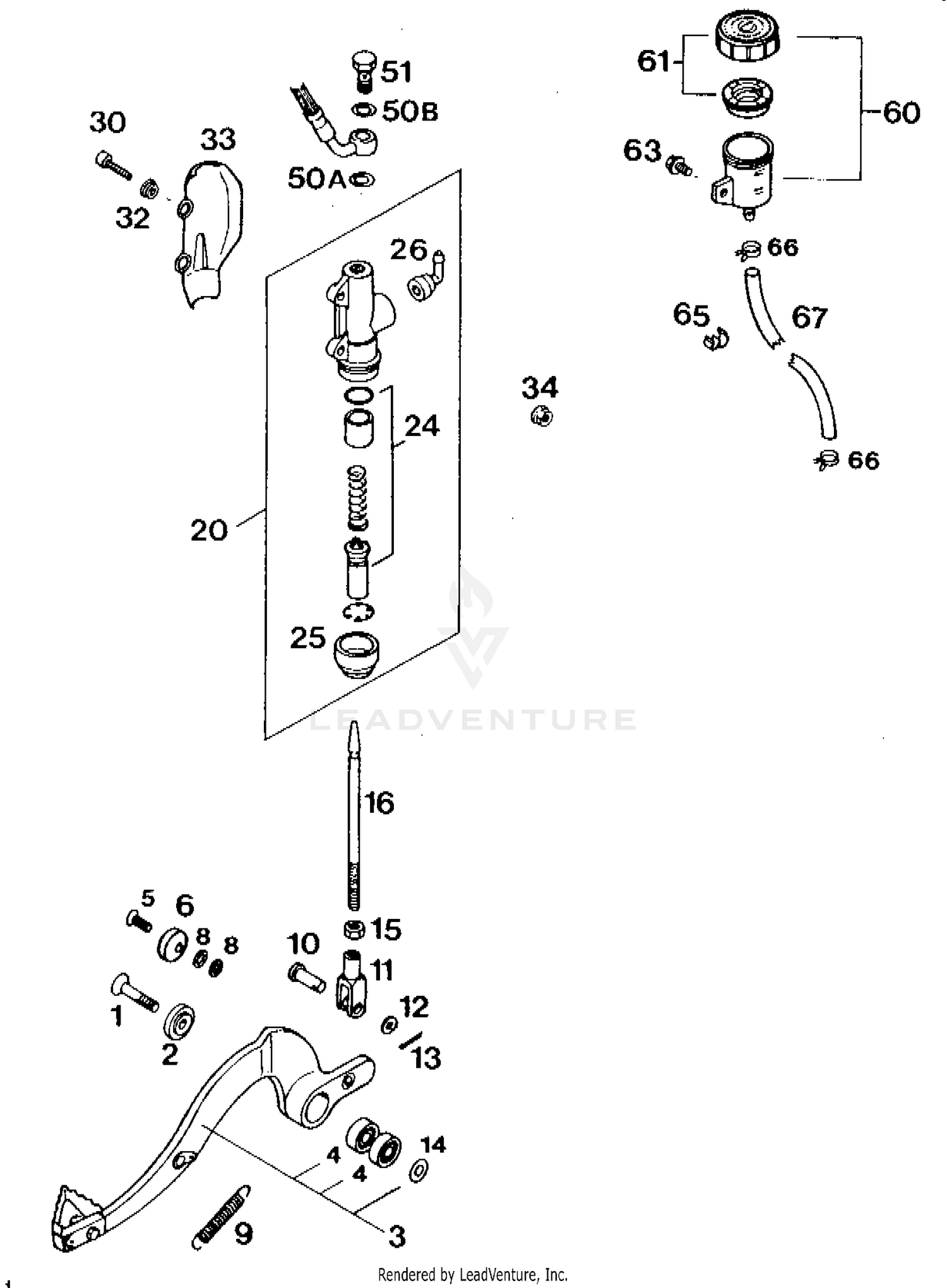

1994 KTM EXC 125 Rear Brake Control OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLAT HEAD SCREW DIN7991-M 8X40
0991080403
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER FOR BRAKE LEVER
56503061300
|
$2.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BRAKE PEDAL CPL,MX
50203060544
|
|||
|
Unavailable |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$21.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
FLAT HEAD SCR. DIN7991-M 6X16
0991060163
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRAKE STOP LEVER
50203063000
|
$5.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RETURN SPRING FOR BRAKE LEVER
54503062000
|
$3.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT FOR FORK 4STR.
58003067000
|
$7.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
FORK F.BRAKE PEDAL
58003069000
|
$20.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WINDOW PANE 8,4X14X1MM
50203028000
|
$0.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PIN
094020203
|
|||
|
Unavailable |
|||
|
#14
washer DIN 125 A -8.4
0125080003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PRESSURE ROD ALU L=120 MM'89
54503068000
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN BRAKE CYLINDER '89
54513101044
|
$126.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$43.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
RUBBER SLEEVE
54513151000
|
$17.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
ANGLE PIECE
54513155000
|
$14.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
AH SCREW DIN0912-M 6X25
0912060253
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
COLLAR BUSHING
50213161000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
BRAKE CYL. PROTECTOR ''BREMBO''
54513038000
|
$6.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SELF LOCKING NUT
56509064000
|
|||
|
Unavailable |
|||
|
#50A
CU-SEAL RING DIN7603-10X16X1,5
42013026000
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50B
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
HOLLOW SCREW M10X1X19
50213025000
|
$6.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$19.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
SCREW CAP
54513031044
|
|||
|
Unavailable |
|||
|
#63
H H COLLAR SCREW
014060103
|
|||
|
Unavailable |
|||
|
#65
CLAMP D=6/8MM, BLACK
55011022100
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#67
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$15.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
