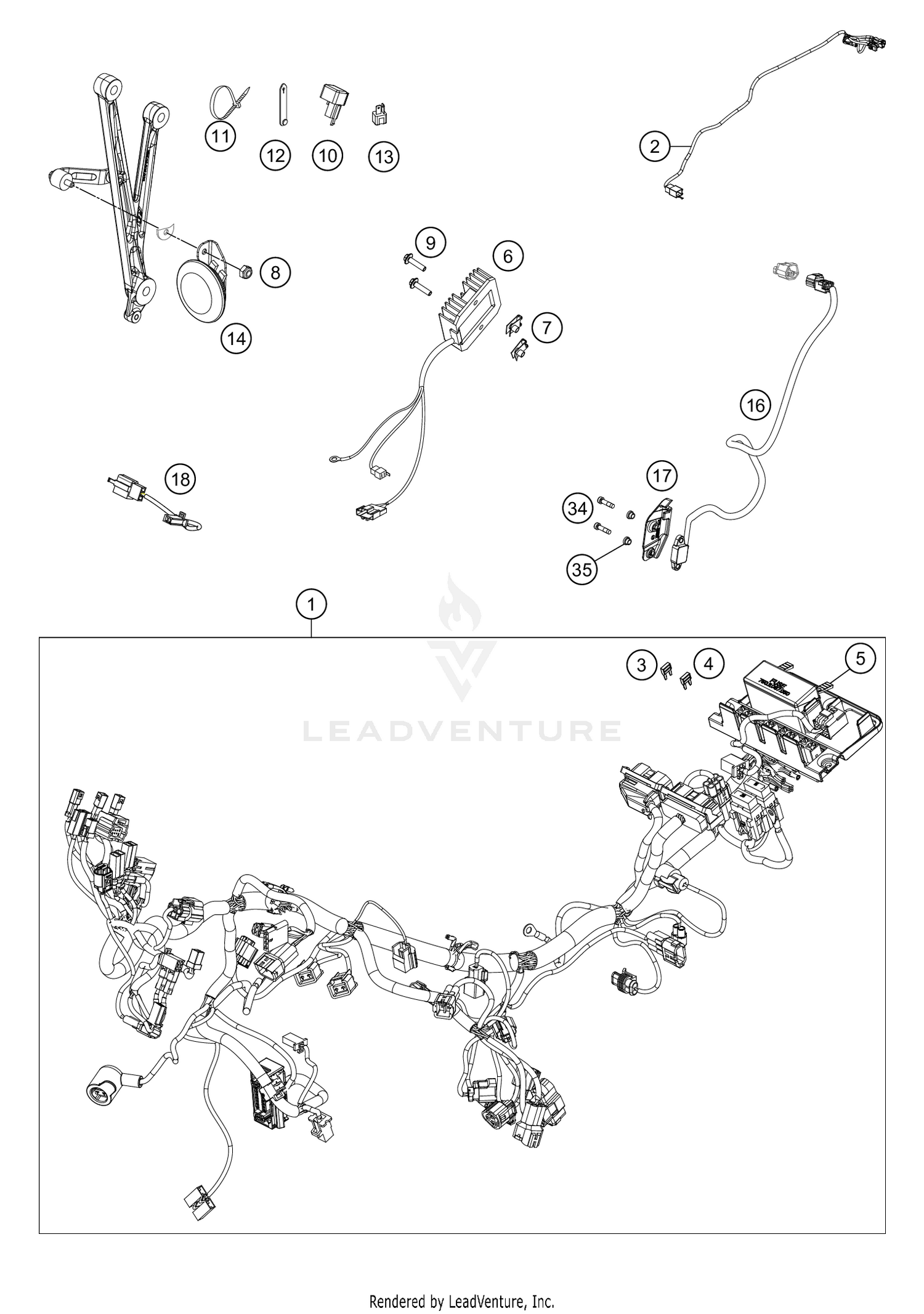

2021 KTM 690 ENDURO R WIRING HARNESS OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
main harness
76911075000
|
$813.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Rear part, wiring harness
76911076000
|
$41.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FUSE 10A 07
75011088010
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FUSE 15A 07
75011088015
|
$3.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RUBBER CASING FOR FUSE BOX
75011087050
|
$10.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
VOLTAGE REGULATOR
62511034100
|
$154.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
clip nut M6
54603048100
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH COLLAR SCREW M6X25 TX30
0024060256
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FLASHER UNIT
76511030000
|
$21.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CABLE TIE 140/2,5MM BLACK
44011076140
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CABLE TIE 200/3,6MM BLACK
44011076200
|
$0.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CABLE TIE 300/4,8MM BLACK
44011076305
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RUBBER CABLE TIE 45MM 03
60011093045
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
DIODE S3H-15 97
58411096100
|
$9.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Direct current horn complete
64111060033
|
$32.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Shift shaft sensor
61434051000
|
$123.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Quickshifter sensor cover
76834052000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Cable for flasher
27011080000
|
$13.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
Cap hd. screw DIN14580 M5x20 Precote30
014580050203S
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
Spacing tube spring retaining bracket
78003123070
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
