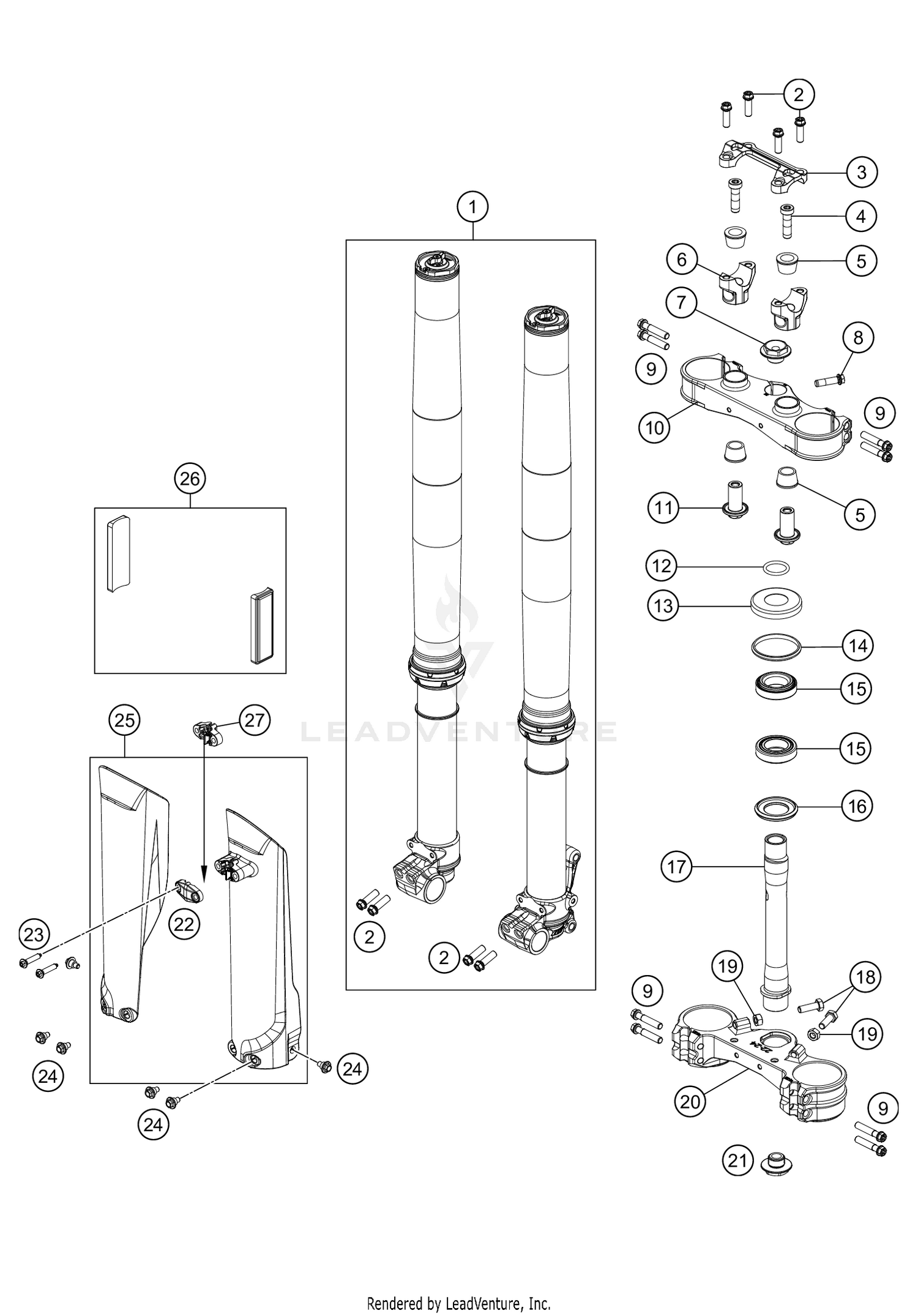

2021 KTM 690 ENDURO R FRONT FORK, TRIPLE CLAMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork KTM 690 Enduro R 19
14188S1001
|
$2,877.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Handlebar clamp 28mm
79001038000C1
|
$57.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$3.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RUBBER BUSH
83001040000
|
$4.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Handlebar receptive D28mm-H36mm
79001039136C1
Superseded by 79001039236C1
|
$38.99 | ||
|
Unavailable |
|||
|
#7
Steering head screw M20x1,5 WS_27
54801036000C1
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH COLLAR SCREW M8X40 TX40
0025080406
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Upper triple clamp 22-24 offset
2700103422330
Superseded by 27001134223C1
|
$318.79 | ||
|
Unavailable |
|||
|
#11
HANDLEBAR SUPPORT LOWER PART
79001037034
|
$60.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O-RING 25X3,55 NBR70 05
0770025035
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STEERING HEAD COVER
78101086000
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
STEARING HEAD GASKET TOP
54601184000
|
$7.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$49.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
O-RING SUPPORT W. SEALING LIP
77701084000
|
$19.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Excentric head tube
76501033100
Superseded by 76501033200
|
$120.39 | ||
|
Unavailable |
|||
|
#18
HH SCREW DIN0933-M 8X25
0933080253
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Lower triple clamp 22-24 offset
2700103112330
Superseded by 27001131123C1
|
$388.89 | ||
|
Unavailable |
|||
|
#21
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Clamp for brake hose
77701085100C1
|
$1.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SPECIAL SCREW K60X30 WS=6
0017060305
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
Fork protection kit 690 Enduro 21
77701094100C1F
|
$79.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
REFLECTOR YELLOW ''CEV''
58412080300
|
$7.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
Spacer, brake line clamping
76901085050C1
|
$2.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
