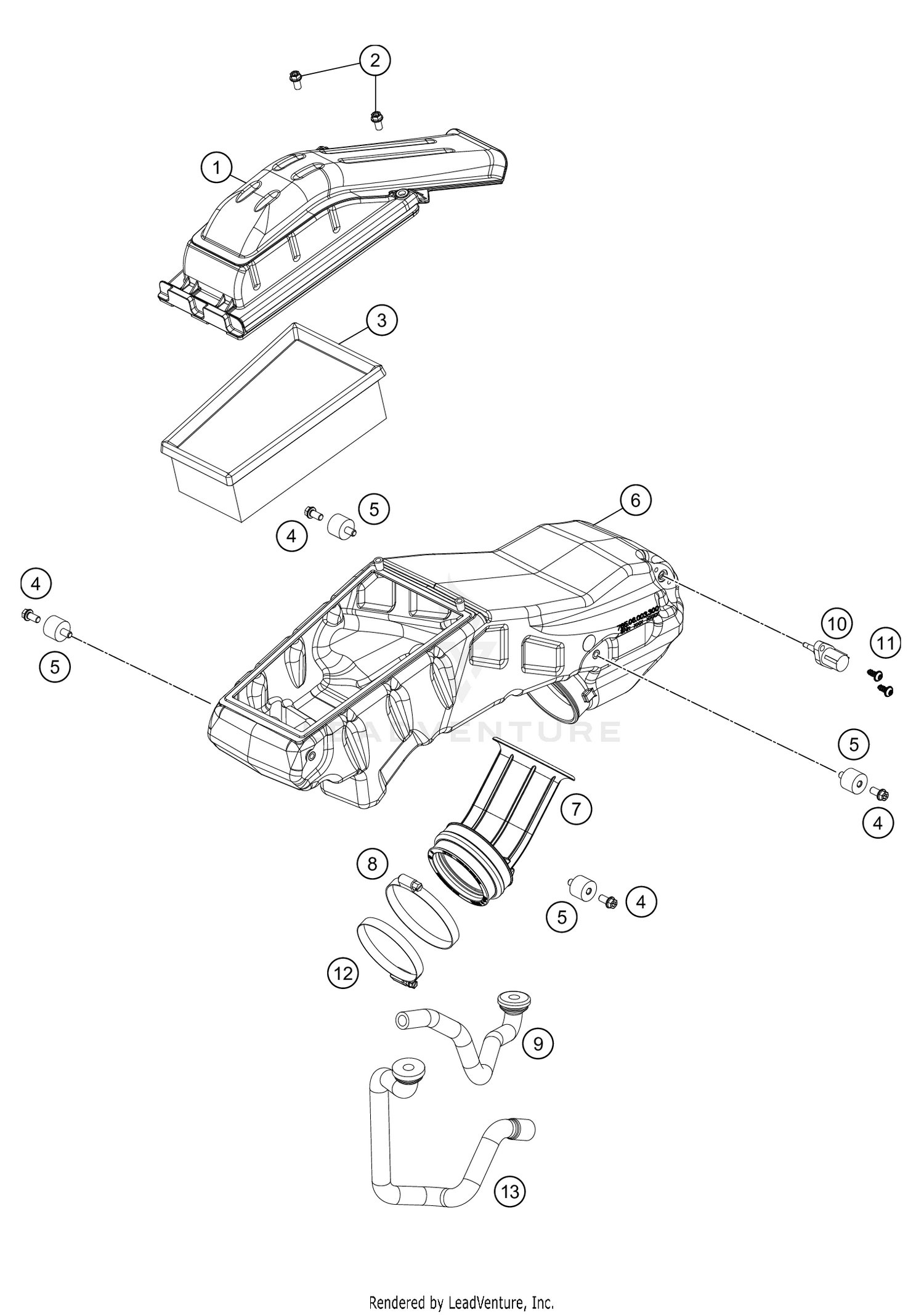

2021 KTM 690 ENDURO R AIR FILTER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER BOX-TOP PART 08
76506002000
|
$41.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
AIRFILTER PAPER 200X120
76506015100
|
$22.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HH collar screw M6x10 TX30
0025060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
silentbloc 20x15-M6x10-(1)
43205062100
|
$13.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
FILTER BOX WITH INTAKE FLANGE
76506003344
|
$126.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
INTAKE FLANGE
76506026100
|
$31.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HOSE CLAMP 60-80MM
55006028000
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
oil separator vent
76930088030
|
$25.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
AMBIENT-AIR TEMPERATURE SENSOR
61041080000
|
$22.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
EJOT PT screw K50x12
0081050121
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HOSE CLAMP 50-70MM
51006027000
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SAS hose to airbox
27005026000
|
$36.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
