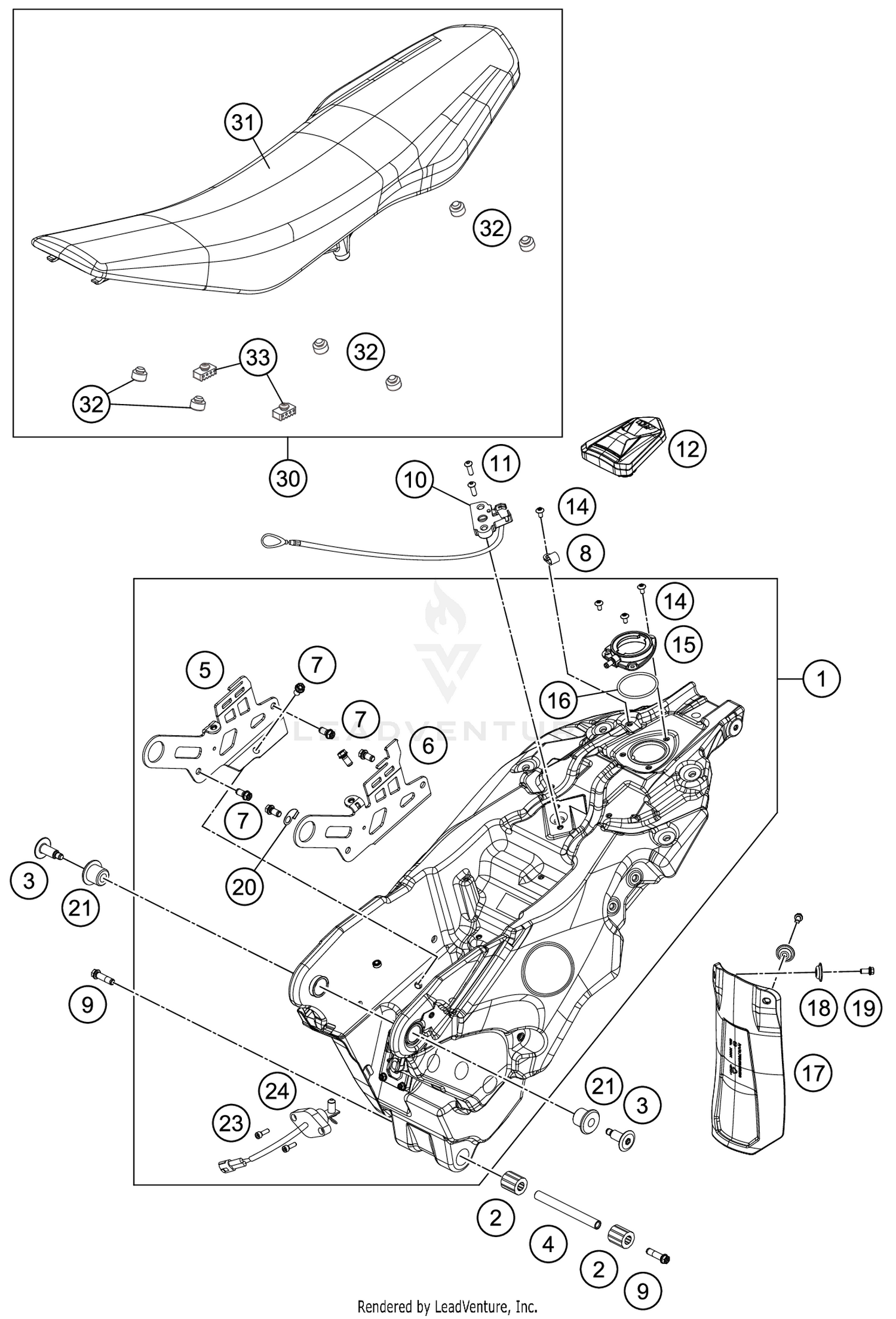

2020 KTM 690 ENDURO R TANK, SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fuel tank cpl.
76907013044
|
$1,854.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
RUBBER BUSHING 11,7X24,7 L=26
76507065100
|
$15.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
attachement bolt top
76507060100
|
$34.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Bearing sleeve, bottom
76507061100
|
$20.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RIGHT FUEL-TANK SUPPORT PLATE
27007028000
|
$45.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Retaining bracket tank left
27007027100
|
$42.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH COLLAR SCREW M8X16 TX40
0025080166
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PVC-CLAMP 7/16'' HEYCO 3377
57013070000
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$2.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SEAT LOCK
76507050000
|
$39.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BHCS ISO 7380 M6X18
0738060181
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Fuel tank cap
76907008000
|
$251.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW TORX M5X10 05
58605083010
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLOSING FLANGE
76507108050
|
$11.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
O-RING 50,00X3,00 VITON
0770050030
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPLASH PROTECTOR
76506010100
|
$9.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BUCKET
72210079000
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
HH collar screw M6x10 TX30
0025060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP FOR SEAT LOCK LINKAGE
27007053000
|
$12.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
RUBB.BEAR.BOX 12x24x35 L=24,5
76507066000
|
$13.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
AH SCREW DIN0912-M 5X16
0912050163
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
GAS-LEVEL SENSOR ADV. 2006
58207080100
|
$75.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
Front rider's seat CPL
76907040000
|
$239.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Seat cover
76907040050
|
$97.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Seat rubber
76907040045
|
$0.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
rubber support
28503002010
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
