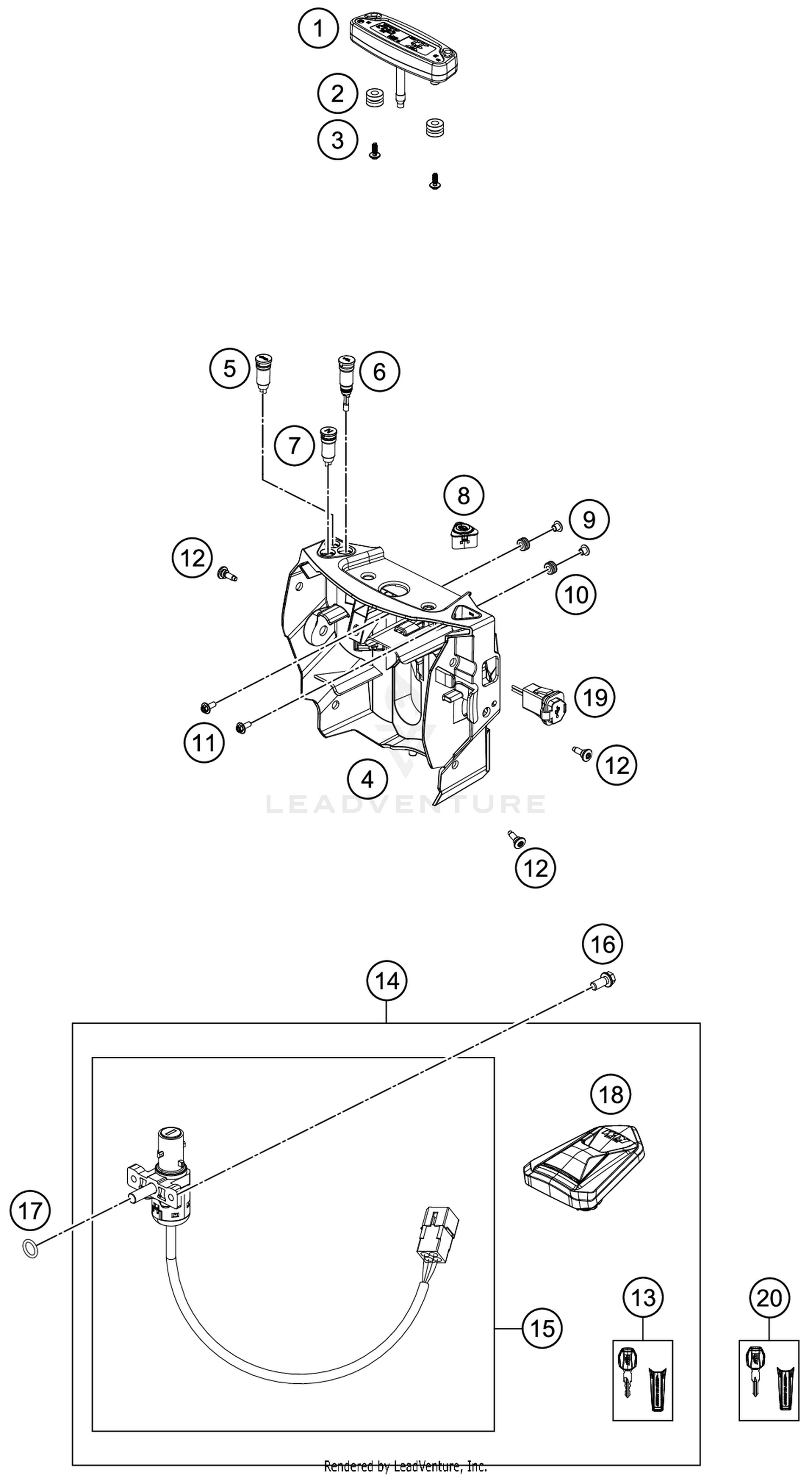

2020 KTM 690 ENDURO R INSTRUMENTS / LOCK SYSTEM OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 Dashboard 27014069200	$218.23
Available: Ships in 7-12 days. Add to View Price
#2 rubber grommet 16x10.8x3 58214069051	$4.09
Available: Ships in 7-12 days. Add to View Price
#3 EJOT DELTA PT SCREW 45X12-Z 0081645121	$0.83
Available: Ships in 7-12 days. Add to View Price
#4 Combination instrument, bracket 76914060000	$39.92
Available: Ships in 7-12 days. Add to View Price
#5 FLASHER CONTROL LIGHT 27014081000	$30.13
Available: Ships in 7-12 days. Add to View Price
#6 Oil pressure warning indicator 76914082000	$39.29
Available: Ships in 7-12 days. Add to View Price
#7 neutral led pilot assembly 27014083000	$27.48
Available: Ships in 7-12 days. Add to View Price
#8 SWITCH ABS 60142070100	$78.51
Available: Ships in 7-12 days. Add to View Price
#9 COLLAR BUSHING 6,1X8,1X14X8 07 75014010050	$3.38
Available: Ships in 7-12 days. Add to View Price
#10 rubber grommet D=8mm open 31008060000	$1.09
Available: Ships in 7-12 days. Add to View Price
#11 HH collar screw M6x15 TX30 0024060156	$2.08
Available: Ships in 7-12 days. Add to View Price
#12 special screw M5x12 69008021160	$3.79
Available: Ships in 7-12 days. Add to View Price
#13 KTM ignition key 76911067000	$129.99
Available: Ships in 7-12 days. Add to View Price
#14 Lock kit cmpl. 76911066044	$214.60
Available: Ships in 7-12 days. Add to View Price
#15 Ignition Switch with key 27011066100	$150.87
Available: Ships in 7-12 days. Add to View Price
#16 SPECIAL SCREW M6X13 WS=8 10.9 59009062013	$1.18
Available: Ships in 7-12 days. Add to View Price
#17 o-ring 10.00x2.00 silicone 0770100020	$1.83
Available: Ships in 7-12 days. Add to View Price
#18 Fuel tank cap 76907008000	$251.43
Available: Ships in 7-12 days. Add to View Price
#19 USB power socket 12 V 64111043000	$47.69
Available: Ships in 7-12 days. Add to View Price
#20 Ignition lock 76911067010	$15.06
Available: Ships in 7-12 days. Add to View Price
