2020 KTM 690 ENDURO R FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|

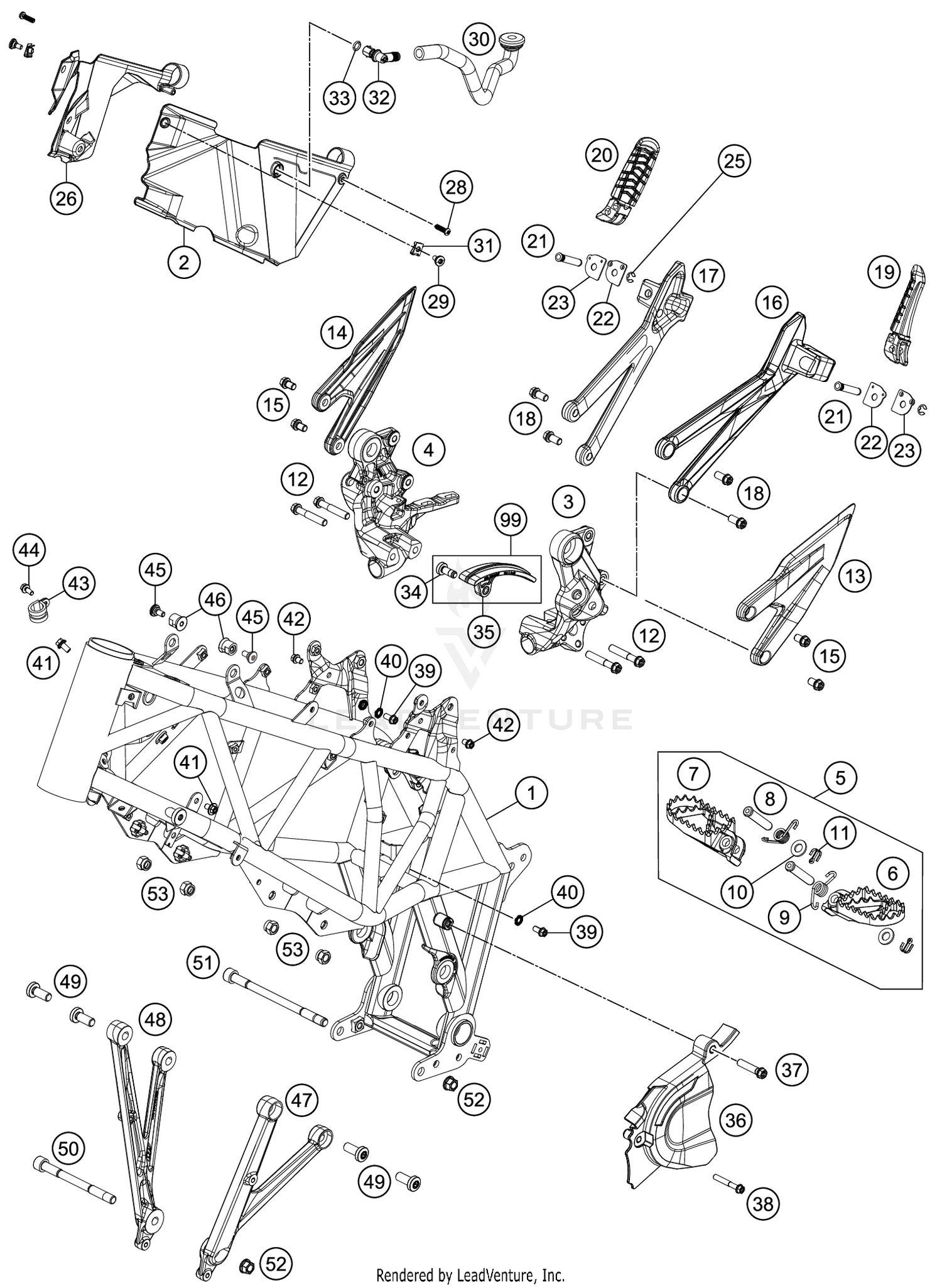

#1
Frame 769 el. orange
76903001000EB
|
$2,049.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Frame cover left
76903092000
|
$32.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Front footpeg bracket left cmpl.
7690303804401
|
$188.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Footpeg bracket right cmpl.
7690303904401
|
$282.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
FOOTREST L/S + R/S CPL. 09
78003040033
|
$115.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
FOOTREST L/S 08
78003040050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FOOTREST R/S 08
78003041050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$12.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
FOOTREST SPRING L/S & R/S
54603041000
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
washer DIN 125 A 10.5
0125100003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIN DIN0094-3,2X25 STEEL
0094032253
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HH collar screw M8x45 TX40
0025080456
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Heel protector, left
76903038050
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Heel protector, right
76903039050
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HH collar screw M8x12 TX40
0025080126
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Rear footpeg bracket left
7690304800001
|
$113.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Rear footpeg bracket right
7690304900001
|
$113.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
HH COLLAR SCREW M8X16 TX40
0025080166
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
FOOTREST CPL. L/S REAR 03
60003050000
|
$57.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
FOOTREST CPL. R/S REAR 03
60003051000
|
$58.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT FOR FOOTREST REAR 03
60003044000
|
$8.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
retaining washer DIN 6799 - 6
0799060003
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Frame cover right
76903086000
|
$20.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
SCREW FOR PLASTIC 50X18 T20
0081250181
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
special screw M5x12
69008021160
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
oil separator vent
76930088030
|
$25.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
clip nut M5
69008021080
|
$2.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
ANGLE CONNECTOR LC8 03
60038082000
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
O-RING 8X2 SILICONE
0770080020
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SHCS M8x20 TX45
0035080206S
|
$5.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CHAIN SLID. GUARD 08
76504067000
|
$6.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
CHAIN GUARD CPL. 08
76530060044
|
$13.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
HH collar screw M8x35 TX40
0025080356
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
HH collar screw M6x40 TX30
0025060406
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
CONTACT WASHER M6 VSV-K6
58411098100
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
HH COLLAR SCREW M6X10 TX30
0024060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
HH collar screw M6x8 TX30
0025060086
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
CLAMP RSGU 15/12
49007439000
|
$4.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
HH collar screw M5x12 TX30
0025050126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
special screw M6x14
69008021040
|
$1.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
Seat holder
76907026000
|
$4.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
ENGINE SUPPORT L/S BLACK
7650300500033
|
$108.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
ENGINE SUPPORT R/S BLACK
7650300600033
|
$112.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
SHCS M10x24 TX45
0035100249
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
SPECIAL SCREW M10X115 ISK8 07
75003015000
|
$6.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
SPECIAL SCREW M10X152 ISK8 07
75003014000
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
CHAIN SLIDING BELOW 08-13
76504067010
|
$19.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
