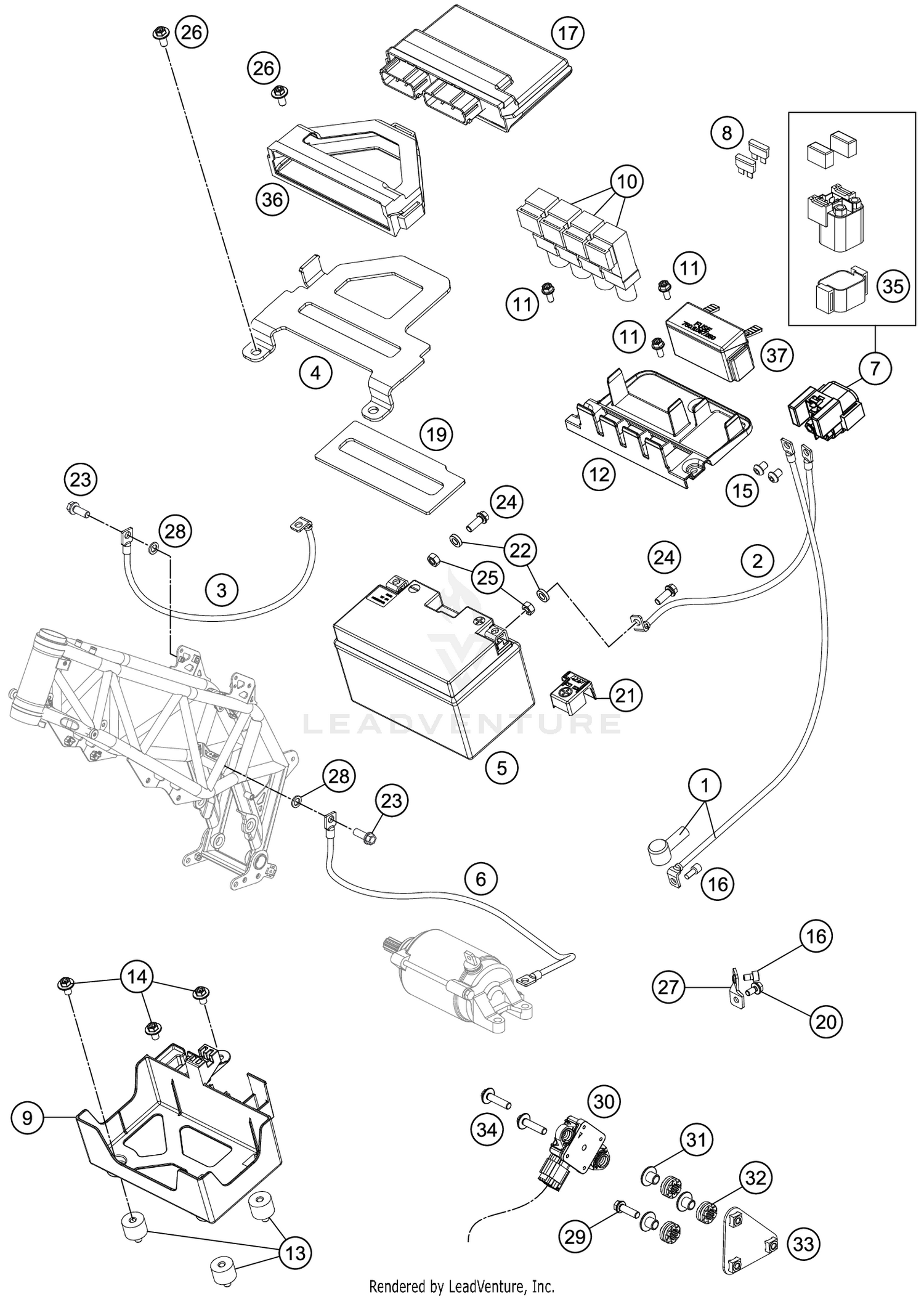

2020 KTM 690 ENDURO R BATTERY OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER-CABLE L=570MM 08
76511059000
|
$15.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BATTERY-CABLE L=170MM
75011059150
|
$12.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GROUND CABLE
76211097000
|
$20.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Retaining bracket
27011056044
|
$29.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BATTERY 12V 8,6AH 03
58411053100
|
$309.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$8.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
STARTER RELAY 12V '99
58211058000
|
$72.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FUSE 30 A
58011109130
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FUSE 25 A
58011109125
|
$1.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FUSE 15 A
58011109115
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BATTERY BRACKET
76511054100
|
$8.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
RELAY CM1A-R-12V-H80 07
61111057000
|
$15.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH collar screw M5x12 TX30
0025050126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HOLDER F.ELECTRIC 08
76511055000
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
silentbloc 20x15-M6x10-(1)
43205062100
|
$13.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HH COLLAR SCREW M6X10 TX30
0024060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SHCS DIN 912 M5x8
0912050083
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Control unit EFI
61341031300
|
$588.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
absorber f. battery retaining
27011056050
|
$3.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
HH collar screw M5x10 TX30
0025050106
|
$0.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER POSITIVE POLE
62111059060
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WASHER 6 X 12 X 3
12011016000
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
HH collar screw M6x13 TX30
0024060136
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
RETAINING PLATE STARTER CABLE
76511059061
|
$9.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CONTACT WASHER M6 VSV-K6
58411098100
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
HH collar screw M6x20 TX30
0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
inertial sensor
60342090100
|
$466.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
DAMP. COMPONENT ABS MODUL
62142041000
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Collar bushing 6,5x9x18x8,5
61342041000
Superseded by 61342041100
|
$0.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Retaining bracket, angle sensor cmpl.
76903001061
|
$30.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
HH COLLAR SCREW M6X25 TX30
0024060256
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
BRACKET RUBBER F.STARTRELAY 07
58211058050
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
ECU RUBBER BRACKET
60341031050
|
$16.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
RUBBER CASING FOR FUSE BOX
75011087050
|
$10.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
