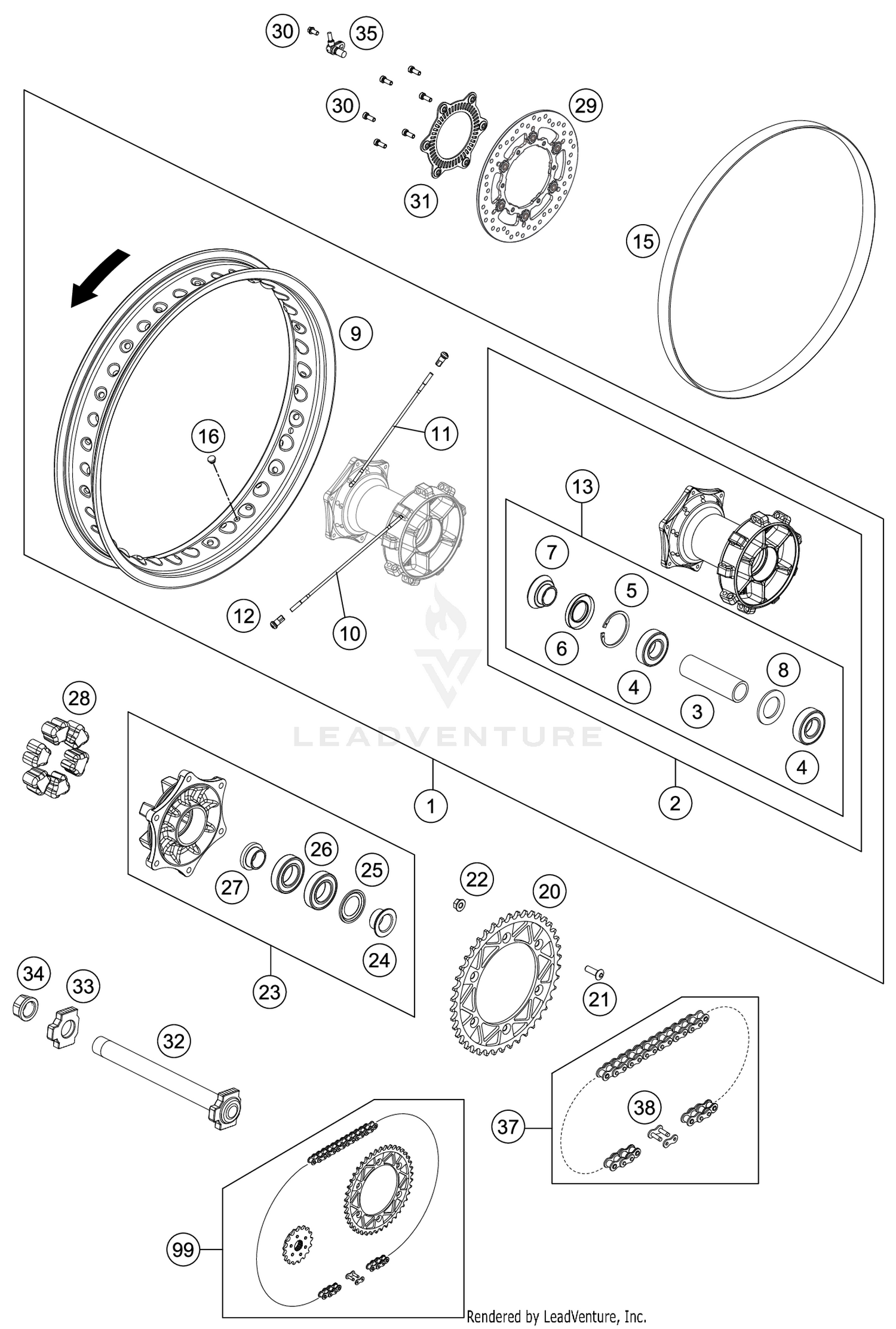

2019 KTM 690 ENDURO R REAR WHEEL OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 REAR WHEEL CPL. 2,50X18'' 16 7651010104430	$838.83
Available: Ships in 7-12 days. Add to View Price
#2 REAR WHEEL HUB CPL. 7531001004491	$303.25
Available: Ships in 7-12 days. Add to View Price
#3 BEARING SPACER TUBE L=106MM 07 75310011000	$20.08
Available: Ships in 7-12 days. Add to View Price
#4 GR.BALL BEAR. 6205-2RSHC3HMTF7 0625062052	$30.78
Available: Ships in 7-12 days. Add to View Price
#5 CIRCLIP DIN0472-52X2 0472052200	$2.15
Available: Ships in 7-12 days. Add to View Price
#6 SHAFT SEAL RING 30X52X7 0760305271	$4.16
Available: Ships in 7-12 days. Add to View Price
#7 SPACER BUSH. REAR WHEEL R/S 06 60110013000	$21.61
Available: Ships in 7-12 days. Add to View Price
#8 SPACER RING 03 60010015000	$10.47
Available: Ships in 7-12 days. Add to View Price
#9 RIM 2,50X18'' DID BLACK 08 7651007000030	$317.64
Available: Ships in 7-12 days. Add to View Price
#10 SPOKE M5X217 -17G 18'' INOX 75310073217	$3.45
Available: Ships in 7-12 days. Add to View Price
#11 SPOKE M5X207-27G 18'' INOX 75310173207	$3.45
Available: Ships in 7-12 days. Add to View Price
#12 Spoke nipple Quadrax M5 58309072100 Superseded by 60310072200	$1.53
Available: Ships in 7-12 days. Add to View Price
#13 REAR WHEEL REP. KIT 75010015000	$82.79
Available: Ships in 7-12 days. Add to View Price
#15 RIM BAND REAR 2MM 2003 58410073200	$8.78
Available: Ships in 7-12 days. Add to View Price
#16 PLUG FOR RIM 55003135000	$1.18
Available: Ships in 7-12 days. Add to View Price
#20 SPROCKET T=46 STEEL 75010051046	$64.88
Available: Ships in 7-12 days. Add to View Price
#20 SPROCKET STEALTH 42T 07 75010051042	$68.01
Available: Ships in 7-12 days. Add to View Price
#21 COUNTER-SUNK SCREW ISA45 M8X26 0019080266S	$2.02
Available: Ships in 7-12 days. Add to View Price
#22 hex nut EN 1661 M8 WS13 06923080003	$1.18
Available: Ships in 7-12 days. Add to View Price
#23 SPROCKET SUPPORT CPL. SILVER 7501005004491	$206.27
Available: Ships in 7-12 days. Add to View Price
#24 SPACER BUSH. SPROCKET SUPP. 06 60110012000	$18.89
Available: Ships in 7-12 days. Add to View Price
#25 NILOS RING 6006AV 60110016000	$9.61
Available: Ships in 7-12 days. Add to View Price
#26 BALL BEARING 6006 DDU2CG23S6NM 0625060060	$17.48
Available: Ships in 7-12 days. Add to View Price
#27 SPACER BUSH. SPR. SUPP. IN. 06 60110014000	$16.27
Available: Ships in 7-12 days. Add to View Price
#28 RUBBER DAMPING BLOCK '91 54610459000	$7.98
Available: Ships in 7-12 days. Add to View Price
#29 BRAKE DISK REAR D=240MM 27010060000	$249.25
Available: Ships in 7-12 days. Add to View Price
#30 SHCS ISO 14580 M6x16 SL 014580060166S	$1.18
Available: Ships in 7-12 days. Add to View Price
#31 SENSOR WHEEL ABS REAR 76542021000	$32.54
Available: Ships in 7-12 days. Add to View Price
#32 WHEEL SPINDLE CPL. 75310085144	$74.25
Available: Ships in 7-12 days. Add to View Price
#33 CHAIN TENSIONER R/S LC8 03 60010084000	$21.38
Available: Ships in 7-12 days. Add to View Price
#34 COLLAR NUT WH. SPINDLE REAR 03 60010086000	$13.90
Available: Ships in 7-12 days. Add to View Price
#35 ABS-SENSOR 76042125000	$189.97
Available: Ships in 7-12 days. Add to View Price
#37 CHAIN DID 118 LINKS 78010167118 Superseded by 78010267118	$112.34
Available: Ships in 7-12 days. Add to View Price
#38 RIVETING LINK FOR 78010167118 78010166100 Superseded by 78010266100	$13.09
Available: Ships in 7-12 days. Add to View Price
#99 Drivetain kit 15Z/42Z 00050002016 Superseded by SPAB15G423M118B	$179.95
Unavailable
