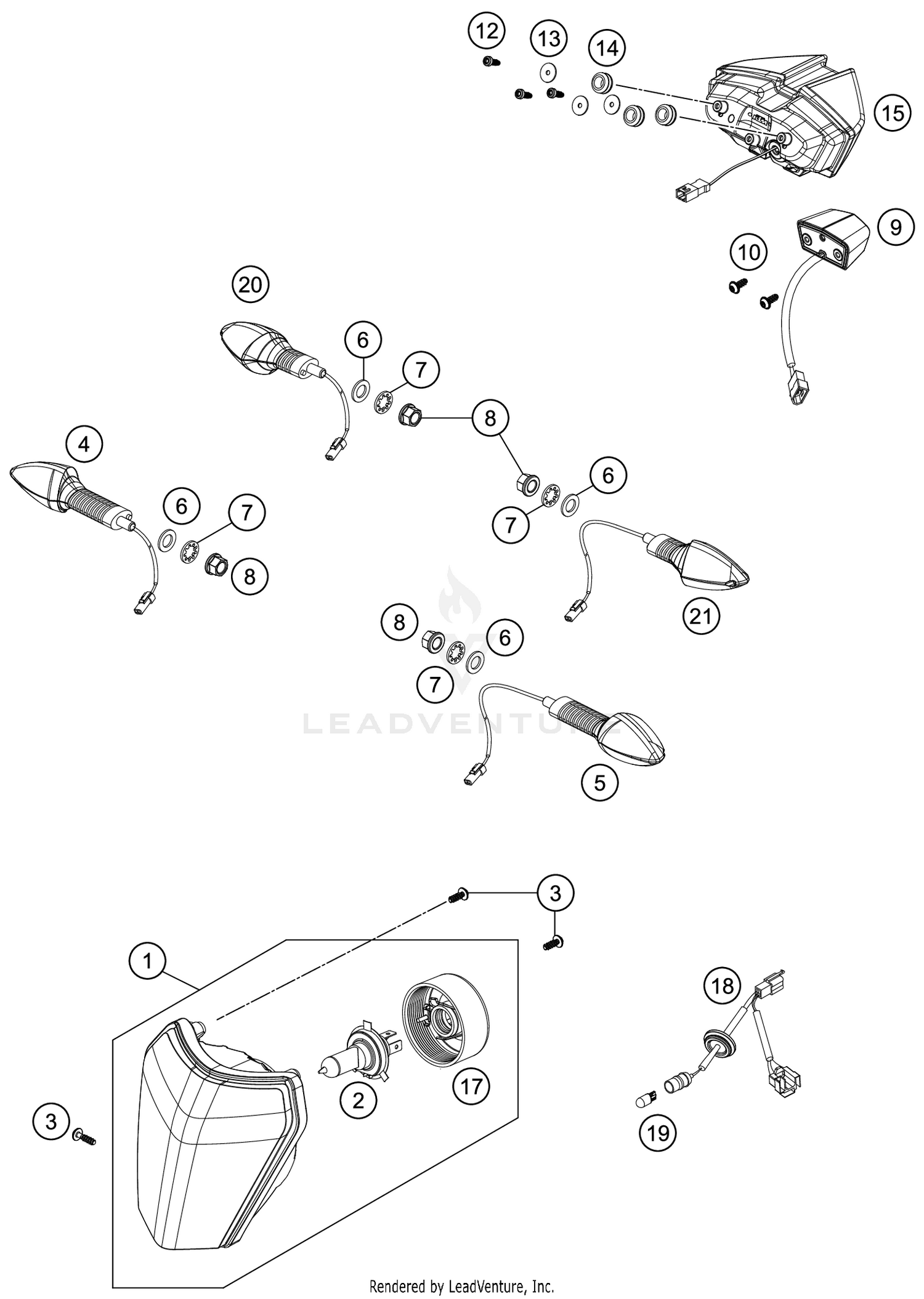

2019 KTM 690 ENDURO R LIGHTING SYSTEM OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Headlight
76914001000
Superseded by 76914001100
|
$109.95 | ||
|
Unavailable |
|||
|
#2
BULB H4 12V 60/55W (P43T)
57111038000
|
$43.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
EJOT PT screw K50x14
0081050141
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FLASHER CPL.FRONT R/S REAR L/S
26514026000
|
$38.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
FLASHER CPL.FRONT L/S REAR R/S
26514025000
|
$38.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER 18x10,5x1,6
0433100003
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
LOCK WASHER DIN6797-J10,5 ZI
0797100003
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
license plate lighting
60314047000
|
$35.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
EJOT PT screw K50x12
0081050121
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
EJOT PT screw K40x18 T20
0081240181
|
$0.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SHIM 4,3X15X1,25MM GALVANIZED
61041088050
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
rubber grommet 9x11x16x8.5 mm
60006001022
|
$1.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Tail light
63514040000
|
$163.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
rubber cap for headlight
76914001050
|
$4.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
wiring harness head light
76911079000
|
$14.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BULB 12V 5W (W2,1X9,5D) PHIL.
49011435100
|
$4.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
FLASHER CPL.FRONT L/S REAR R/S
60114025000
|
$28.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
FLASHER CPL.FRONT R/S REAR L/S
60114026000
|
$28.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
