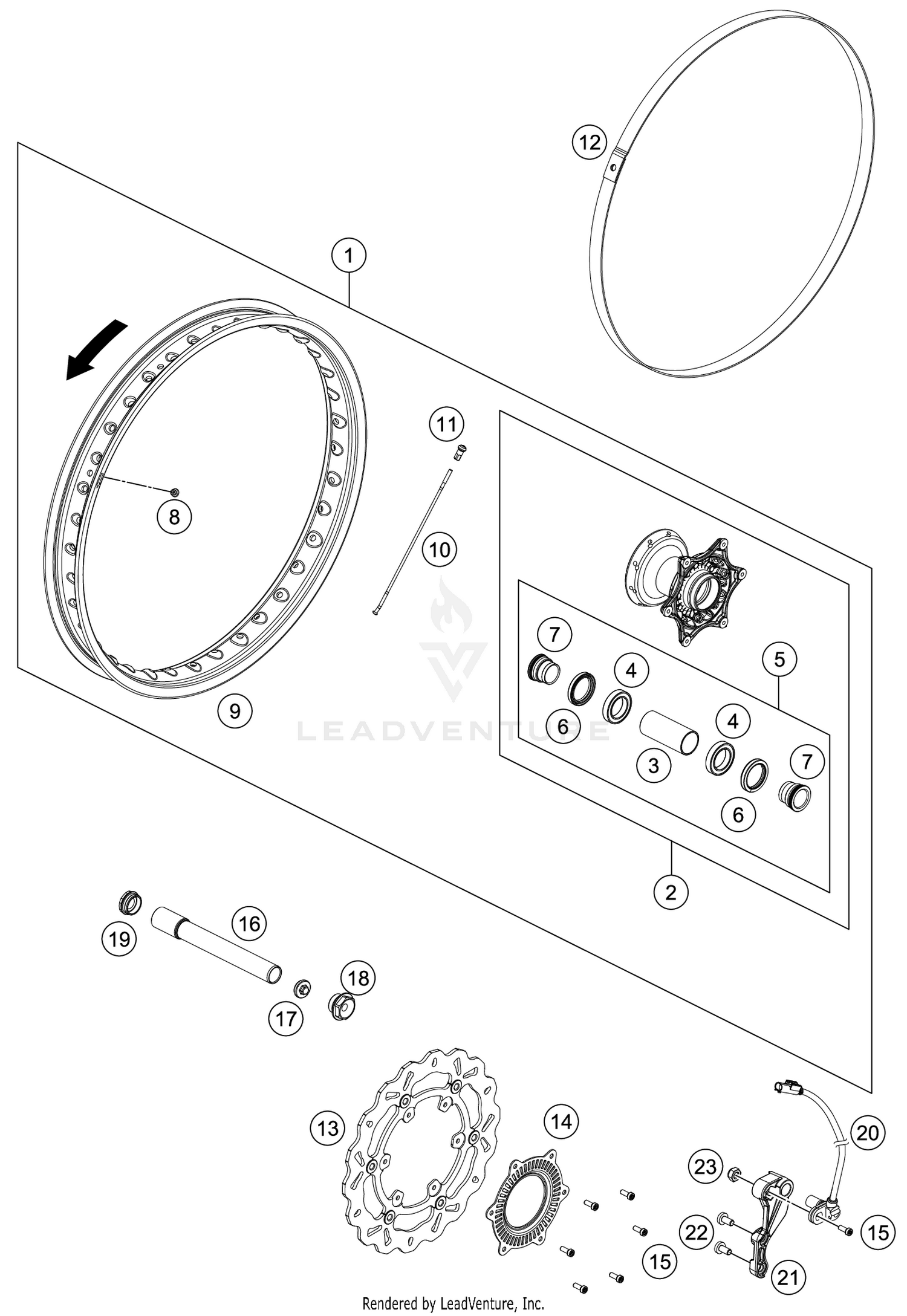

2019 KTM 690 ENDURO R FRONT WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL. 1,85X21'' 16
7650910104430
|
$795.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FRONT HUB CPL.
7530901004491
|
$297.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEA.SPACERTUBE 35X2 L=79,4 03
54809011000
|
$25.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$33.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
FRONT WHEEL REP. KIT
78009015000
|
$106.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$8.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER BUSHING F. FR. WHEEL 08
78009012000
|
$30.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLUG FOR RIM
55003135000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RIM 1,85X21'' DID BLACK 16
7650917000030
|
$365.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPOKE M4,5X226-18'' INOX
75309073226
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Spoke nipple, Quadrax M4,5
81210072100
Superseded by 81210072200
|
$1.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RIM BAND FRONT 2MM 2003
58409073100
|
$7.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FRONT BRAKE DISC D=300MM
76509260000
|
$306.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Front sensor wheel
60142020100
|
$83.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SHCS ISO 14580 M6x16 SL
014580060166S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Wheel spindle, front
77309081000
Superseded by 77309081100
|
$82.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
AUXILIARY SCREW FRONT 06
54809081070
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPINDLE SCREW M24X1,5 WS=27 03
54809082000
|
$9.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG BUSHING WS=27 03
54809081050
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
ABS SENSOR
27042025000
|
$254.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SENSOR BRACKET
27042024100
|
$16.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
INT. TORX OVAL HEAD M 5X10 8.8
0018050103
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
