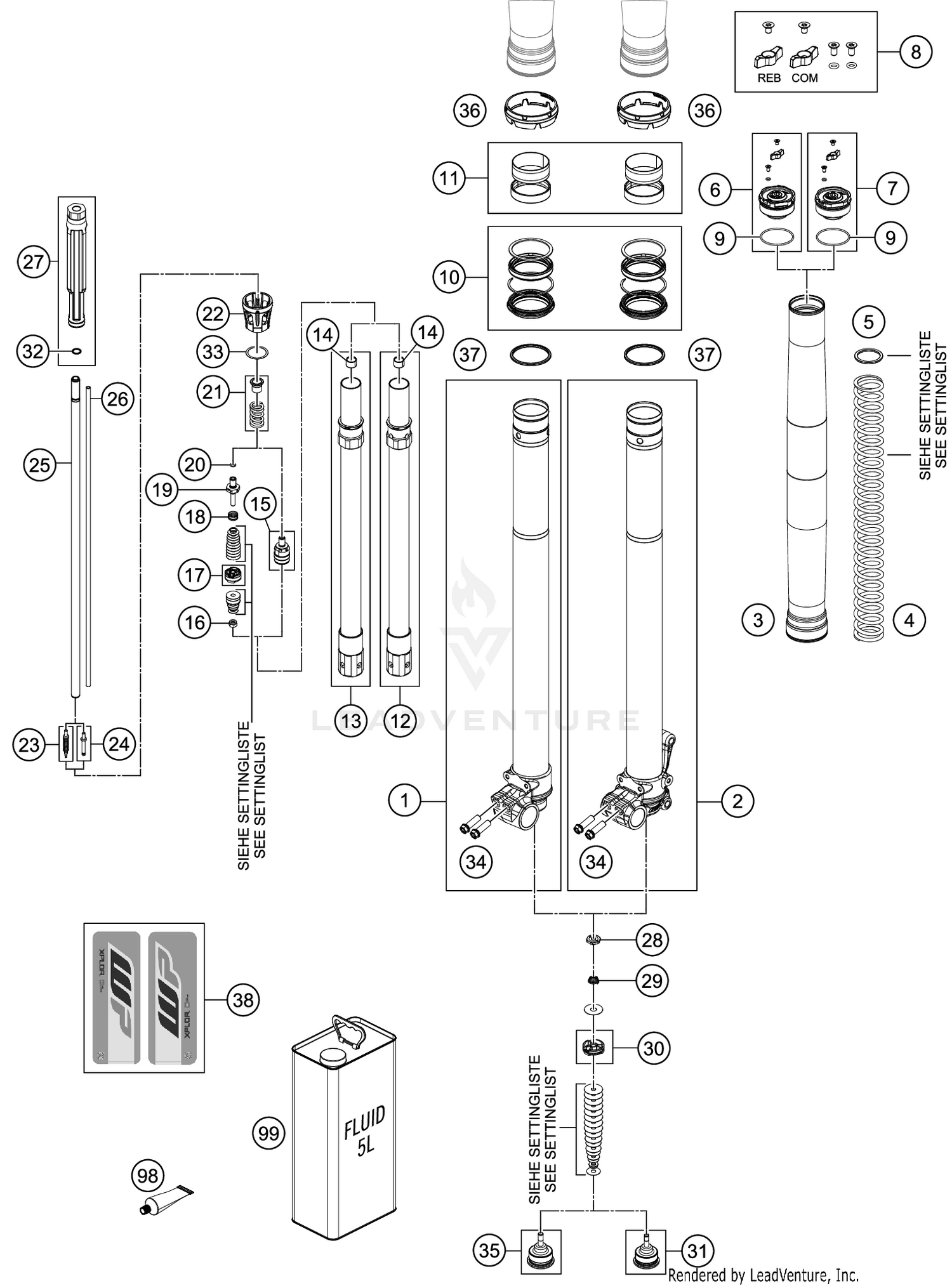

2019 KTM 690 ENDURO R FRONT FORK DISASSEMBLED OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Axle Clamp R/S + Tube D48mm 35mm
48601713S1
|
$423.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Axle Clamp L/S + Tube D48mm 35mm
48601712S1
|
$418.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Fork outer tube 49,13x577 dt54 db60 natu
48600736
|
$448.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Mainspring (43,2) 5,9-430 fork
91410143
|
$34.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Washer 35x43x1,5 plastic
48600458
|
$1.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Washer 35x43x2,5 plastic
48600456
|
$1.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Preload bush 35x43x3,5
48600457
|
$1.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Screw cap M51x1,5 rebound cpl.
48601960S
|
$58.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Screw cap M51x1,5 compression cpl.
48601961S
|
$58.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Adjuster Kit screw cap
RP10021
Superseded by RP10021T
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-ring 46x2 NBR70 siliconized yellow
48600048
|
$2.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Seal kit 48mm SKF black
RP10012
Superseded by RP10048T
|
$56.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$24.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Tube, including screw sleeve with hole
48600763S5
|
$162.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Tube with screwsleeve
48600763S6
|
$151.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Guide bushing 12x14x10
48600430
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Tap compression cpl.
48601843S
|
$63.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$3.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Midvalve piston assembly d23
48602002S
|
$17.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Spring (11,4) 0,4-8 valve
48600382
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Tap 6x46 rebound
48600576
|
$9.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
O-ring 6x1,2 NBR70
48600299
|
$0.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$3.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Spring retainer 27,08x43x45
48601298
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
Needle 4,5x43,6 cpl.
48600277S
|
$8.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
Needle 4,5x38,2 cpl.
48601558S
|
$11.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
Piston rod 12x518
48601956
|
$25.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Adjuster Tube L488.5
48601957
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
hydrostop l205 d31,9 cpl.
48601958S
|
$39.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
Spring (8,5) l6,5 valve
48600202
|
$1.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
Piston 6x27,3x9 compression cpl.
48601934S
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Screw cap M29,3x1 OC split cpl.
48601553S
|
$24.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
O-ring 11x2,5 NBR70 PTFE yellow
04500003
|
$0.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Shim 27,5x33x0,3
48601702
|
$10.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
Screw cap M29,3x1
48601980S
|
$20.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
Fork protection ring 60,1mm
48601948
|
$3.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
Stroke indicator 48mm red
48602007
|
$3.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
sticker set
52000198SET
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T14034
|
$27.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
FORK OIL SAE4 5L
48601166S1
|
$176.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
