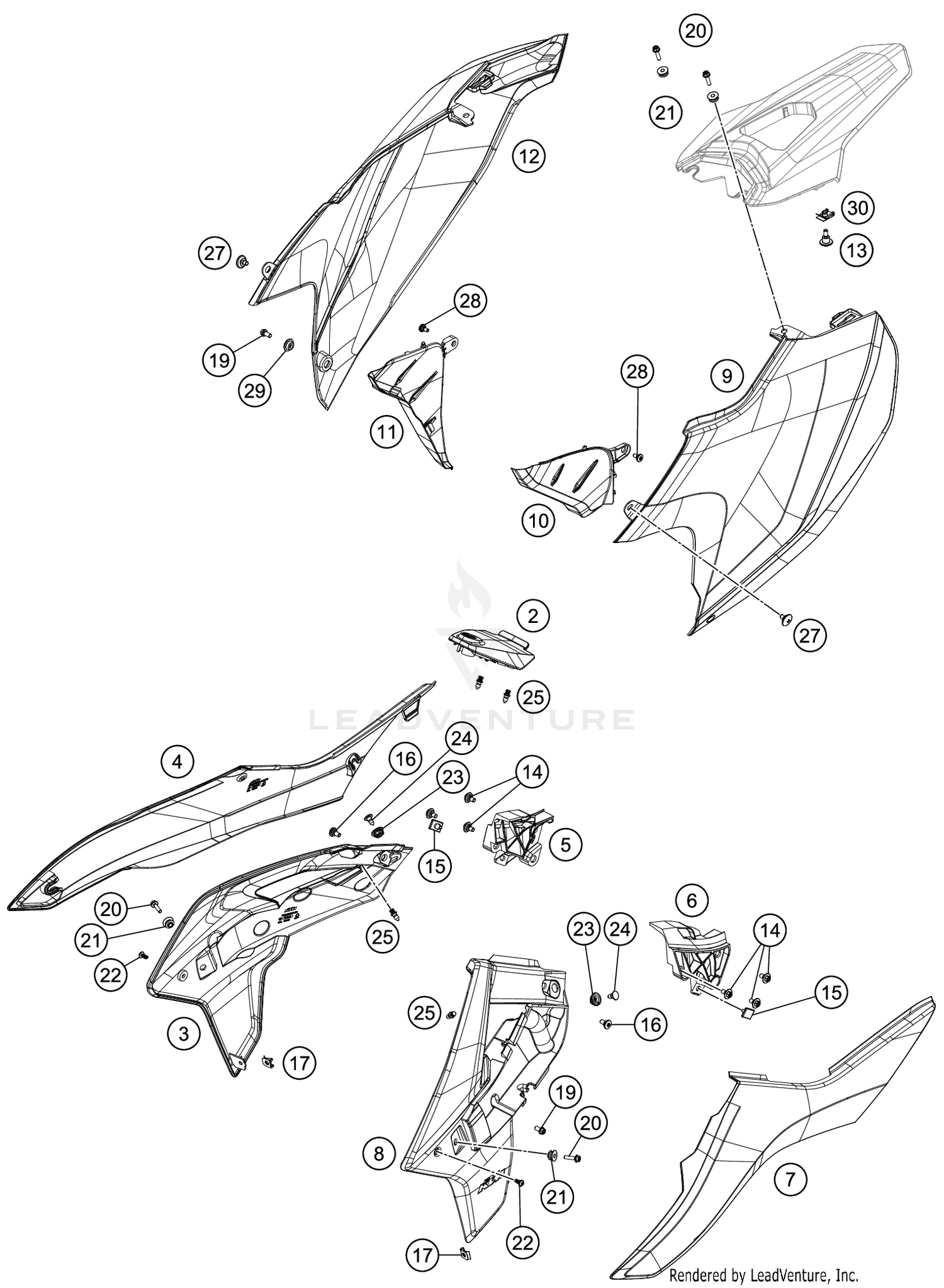

2019 KTM 690 ENDURO R COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
Ignition lock cover
76911068000
|
$31.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Spoiler right
76908051000C1
|
$26.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
front fairing right
76908061000ABA
|
$88.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Seat carrier, right
76907042000
|
$14.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Seat carrier, left
76907041000
|
$14.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
front fairing left
76908060000ABA
|
$95.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
spoiler left
76908050000C1
|
$26.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
side fairing left
76908041000ABA
|
|||
|
Unavailable |
|||
|
#10
side fairing, left front
76908041030
|
$10.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
side fairing, right front
76908042030
|
$10.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
side fairing right
76908042000ABA
|
|||
|
Unavailable |
|||
|
#13
SPECIAL SCREW M6X21 WS=8
60035001000
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
special screw M6x12x3
83008000012
|
$2.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Isolation pad
77307040041
|
$1.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
special screw M6x14
69008021040
|
$1.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
RANGE CHANGE METAL NUT M5
54603048200
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
HH collar screw M5x20 TX30
0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
seat sleeve
21007046000
|
$7.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
EJOT PT screw K50x12
0081050121
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
quick release rubber grommet
47106003160
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
Quick lock pin flat
47106003170
|
|||
|
Unavailable |
|||
|
#25
ALU SCHNELLVERSCHLUSSPIN KURZ
47106003350
|
|||
|
Unavailable |
|||
|
#27
SCREW FOR SEAT M6X11,5/8
58407011100
|
$3.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
special screw M5x12
69008021160
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
COLLAR BUSH. F.REAR FENDER 07
77308013010
|
$4.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
clip nut M6
54603048100
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
