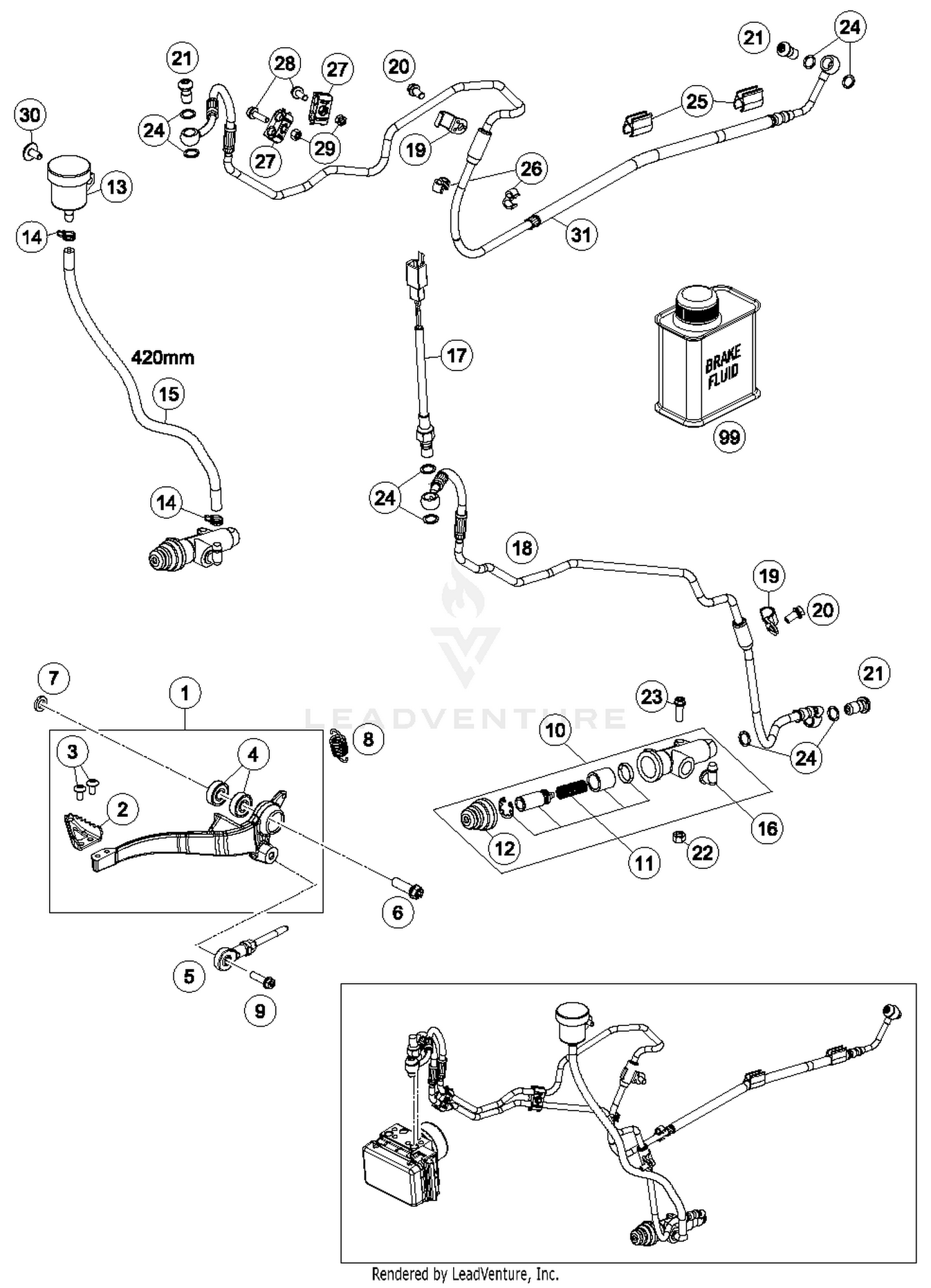

2018 KTM 690 ENDURO R Rear Brake Control OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOT BRAKE LEVER CPL. 11
7651305024401
|
$123.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
STEP PLATE FOOT BRAKE LEVER 03
60013051000
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SCREW TORX M5X10
78105081010
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$21.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PUSH ROD CPL.
76513056144
|
$21.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HH COLLAR SCREW M8X30 TX40
0025080306S
|
$2.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
washer DIN 125 A -8.4
0125080003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Return spring for brake lever
54603062100
Superseded by 54603062200
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH collar screw M6x20 TX30
0025060206S
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
MAIN BRAKE CYLINDER '89
54513101044
|
$126.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
REPAIR KIT PISTON 13MM
76513061000
|
$55.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RUBBER SLEEVE
54513151000
|
$17.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BRAKE FLUID RESERVOIR '89
54513030044
|
$19.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Hose reservoir 6x1,5
69013069001
Superseded by 57313072001
|
$15.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
ANGLE PIECE
54513155000
|
$14.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BRAKE LIGHT SWITCH REAR
62111051000
|
$27.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BRAKE HOSE REAR MASTER CYL.
76542003000
|
$121.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP
76542050000
|
$3.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
banjo bolt M10x1x19.5
62113020100
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STOP NUT M6 DIN6926 A2-70
0926060000
|
$2.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HH collar screw M6x25 TX30
0025060256
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CABLE SUPPORT 10/6MM 06
54813026000
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CLIP 5/7 MM 06
60111094000
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SUPPORT FOR BRAKE HOSE M5
60113146000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HH collar screw M5x16 TX30
0025050166
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
HEXAGON NUT DIN0934-M 5
0934050003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
HH collar screw M6x13 TX30
0024060136
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BRAKE HOSE REAR CALIPER
76542001000
|
$141.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
