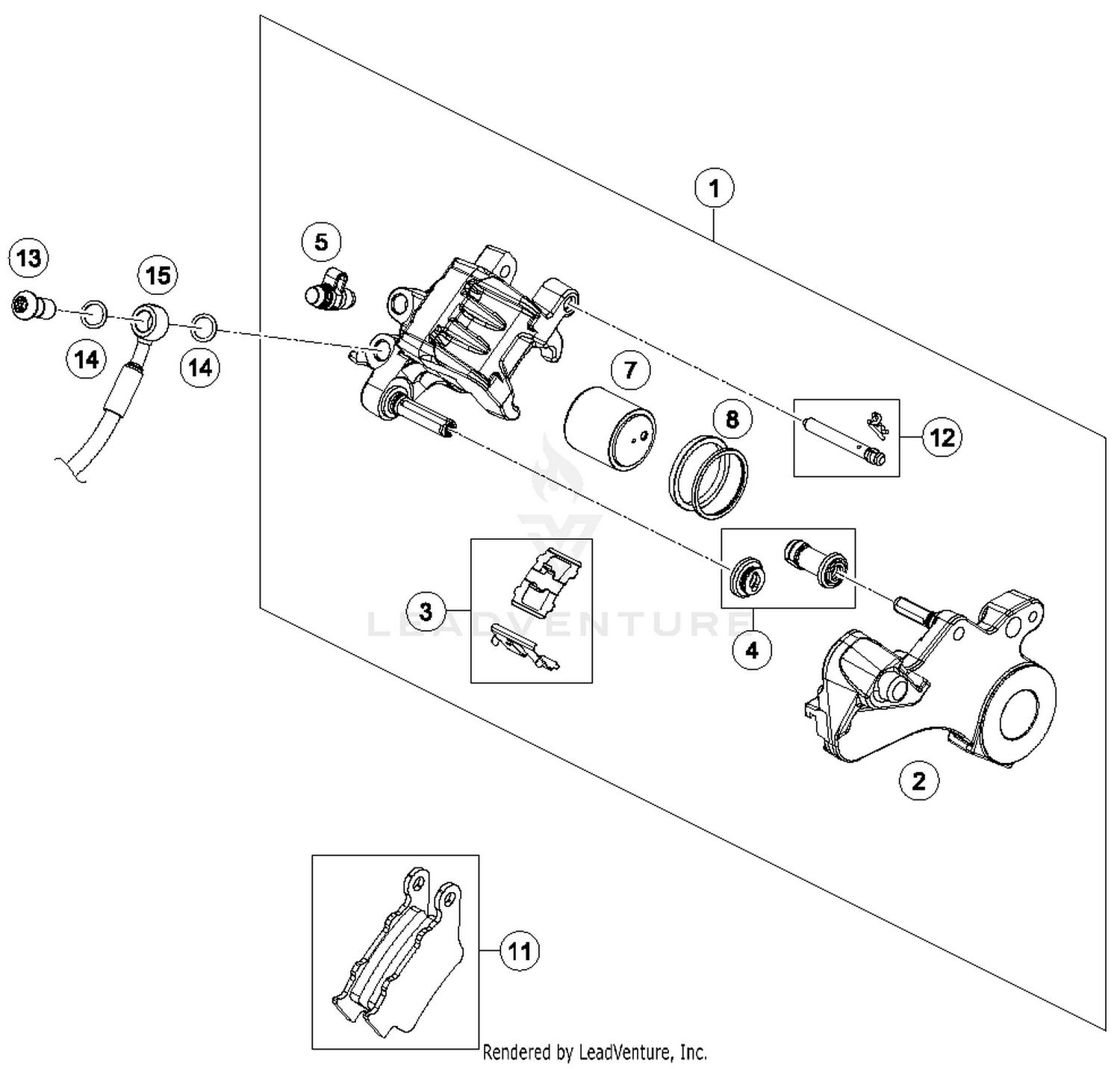

2018 KTM 690 ENDURO R Rear Brake Caliper OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear brake caliper without lining
7601308000101
Superseded by 7601308010101
|
$273.69 | ||
|
Unavailable |
|||
|
#2
BRAKE CALIPER BRACKET REAR
7601317500001
|
$142.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RETAINING SPRING SET
54613311200
|
$15.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CUP SET SHORT
54613218000
Superseded by 54613218100
|
$22.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BLEEDER SCREW WITH CAP
61013020200
|
$7.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BRAKE PISTON 32MM
50313083000
|
$30.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
REPAIR KIT SEALING RINGS 32MM
50313081000
|
$14.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BRAKE PAD SET REAR SBS-S-40GF
75013090000
|
$40.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT SET 05
61013082000
|
$17.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
banjo bolt M10x1x19.5
62113020100
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BRAKE HOSE REAR CALIPER
76542001000
|
$141.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
