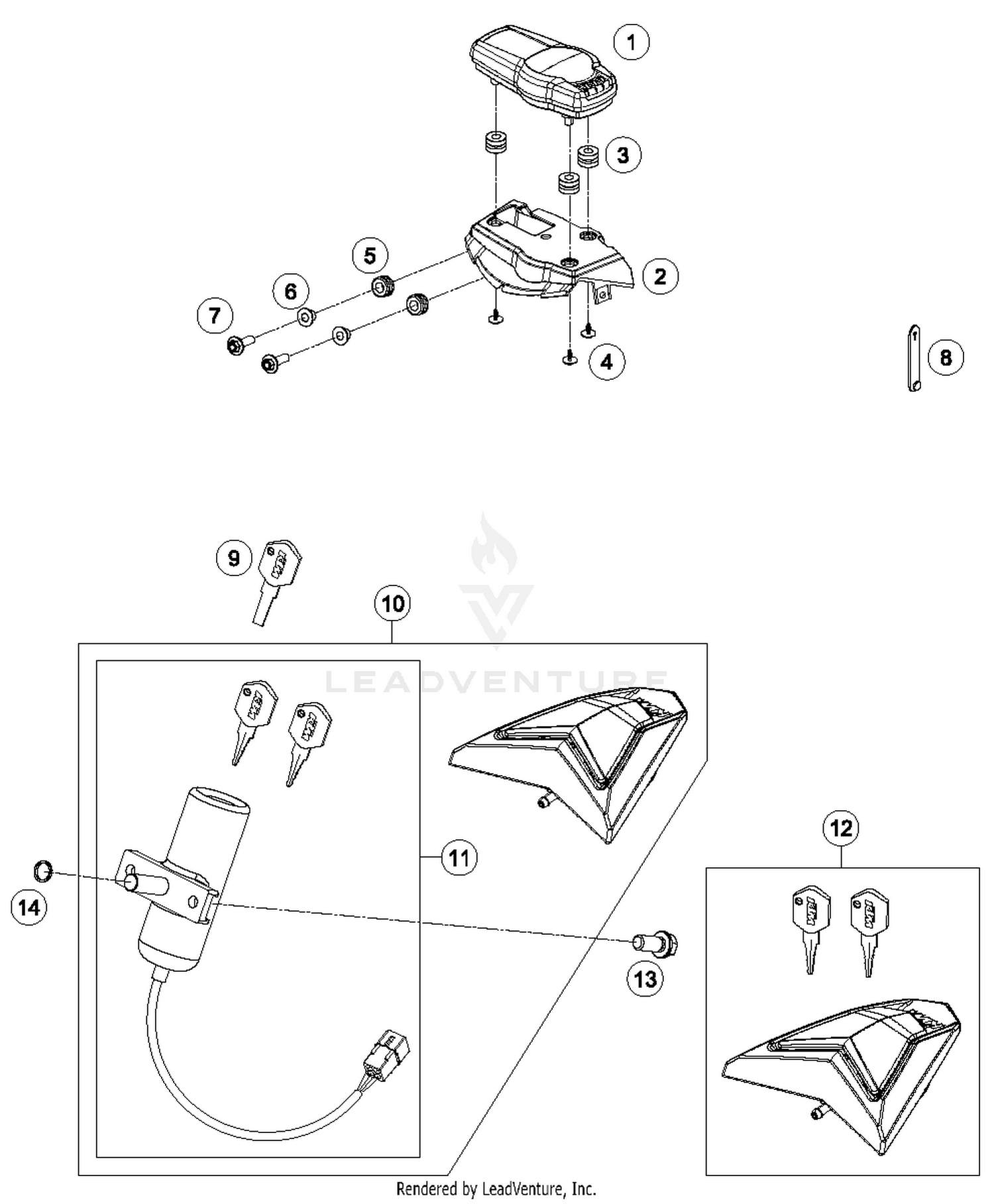

2018 KTM 690 ENDURO R Instruments / Lock System OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
76014169000
|
$470.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPEEDOMETER BRACKET
76514060000
|
$14.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
rubber grommet 16x10.8x3
58214069051
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
EJOT DELTA PT SCREW 45X12-Z
0081645121
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
rubber grommet D=8mm open
31008060000
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
COLLAR BUSHING 6,1X8,1X14X8 07
75014010050
|
$3.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH collar screw M6x15 TX30
0024060156
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
RUBBER CABLE TIE 45MM 03
60011093045
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Ignition lock
40011166100
Superseded by 76911067010
|
$15.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Lock kit
76511066244
|
$188.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Ignition Switch with key
76511066100
|
$127.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
TANK CAP
76507008100
|
$117.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
o-ring 10.00x2.00 silicone
0770100020
|
$1.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
