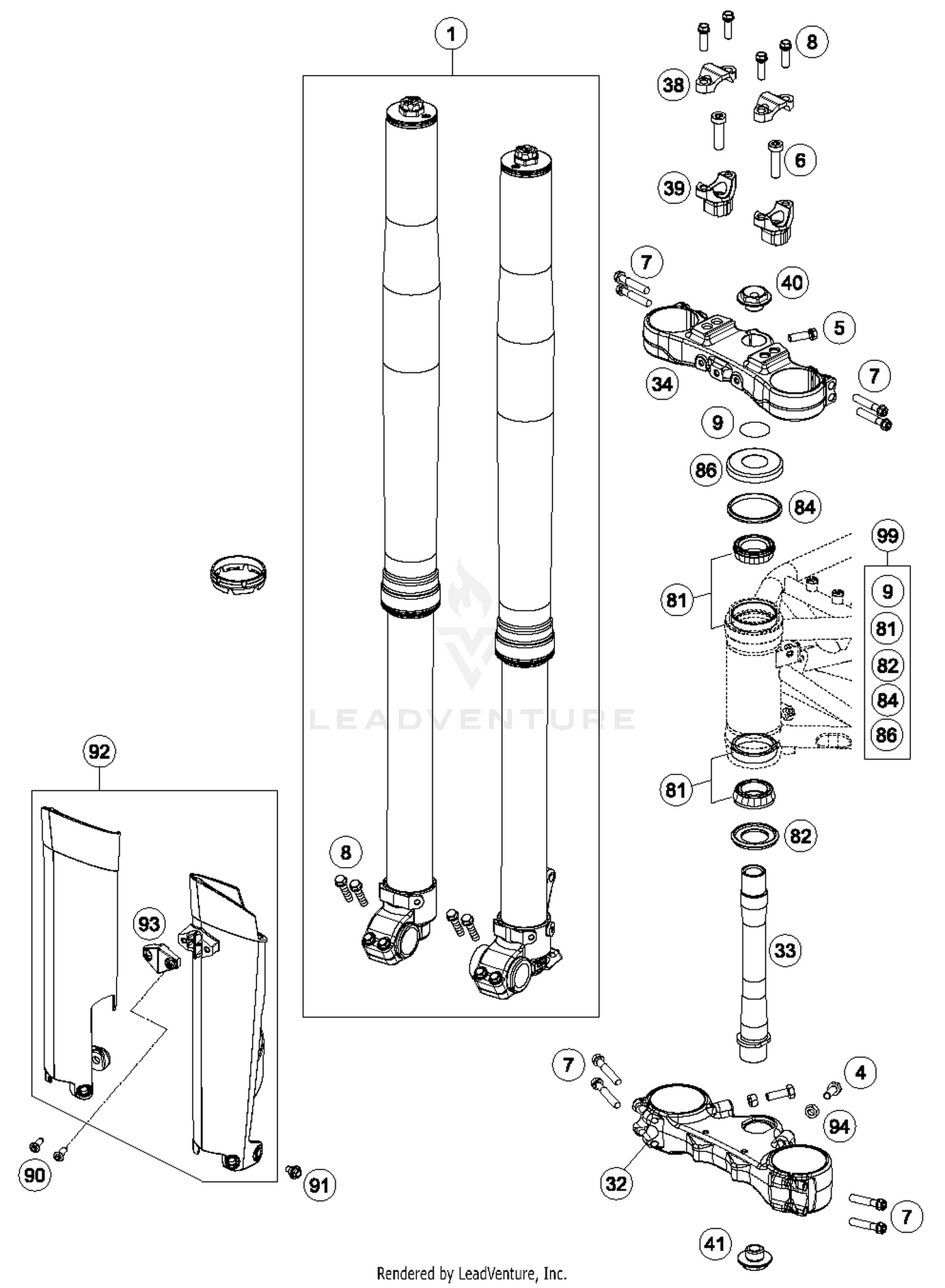

2018 KTM 690 ENDURO R Front Fork, Triple Clamp OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK 690 ENDURO R 2014
14188N1001
|
$2,761.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HH SCREW DIN0933-M 8X25
0933080253
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$3.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH COLLAR SCREW M8X40 TX40
0025080406
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O-RING 25X3,55 NBR70 05
0770025035
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOT.TRIPLE CLAMP 60 MM
7650103103133
|
$275.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Excentric head tube
76501033000
Superseded by 76501033200
|
$120.39 | ||
|
Unavailable |
|||
|
#34
TOP TRIPLE CLAMP 54MM
7650103403133
|
$192.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP 28MM
77201038000
|
$24.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=42MM 05
59401039042
|
$36.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
|
$11.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$49.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
77701084000
|
$19.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$7.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#86
STEERING HEAD COVER
54201086000
|
$8.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#90
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$2.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92
FORK PROTECT. L/S+R/S BLACK
7800109420030
|
$31.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#93
CLAMP F.SPEED.CABLE D=6MM 08
7800108500030
|
$4.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#94
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Stearing Head repair kit
00050000930
Superseded by 54201081144
|
$88.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
