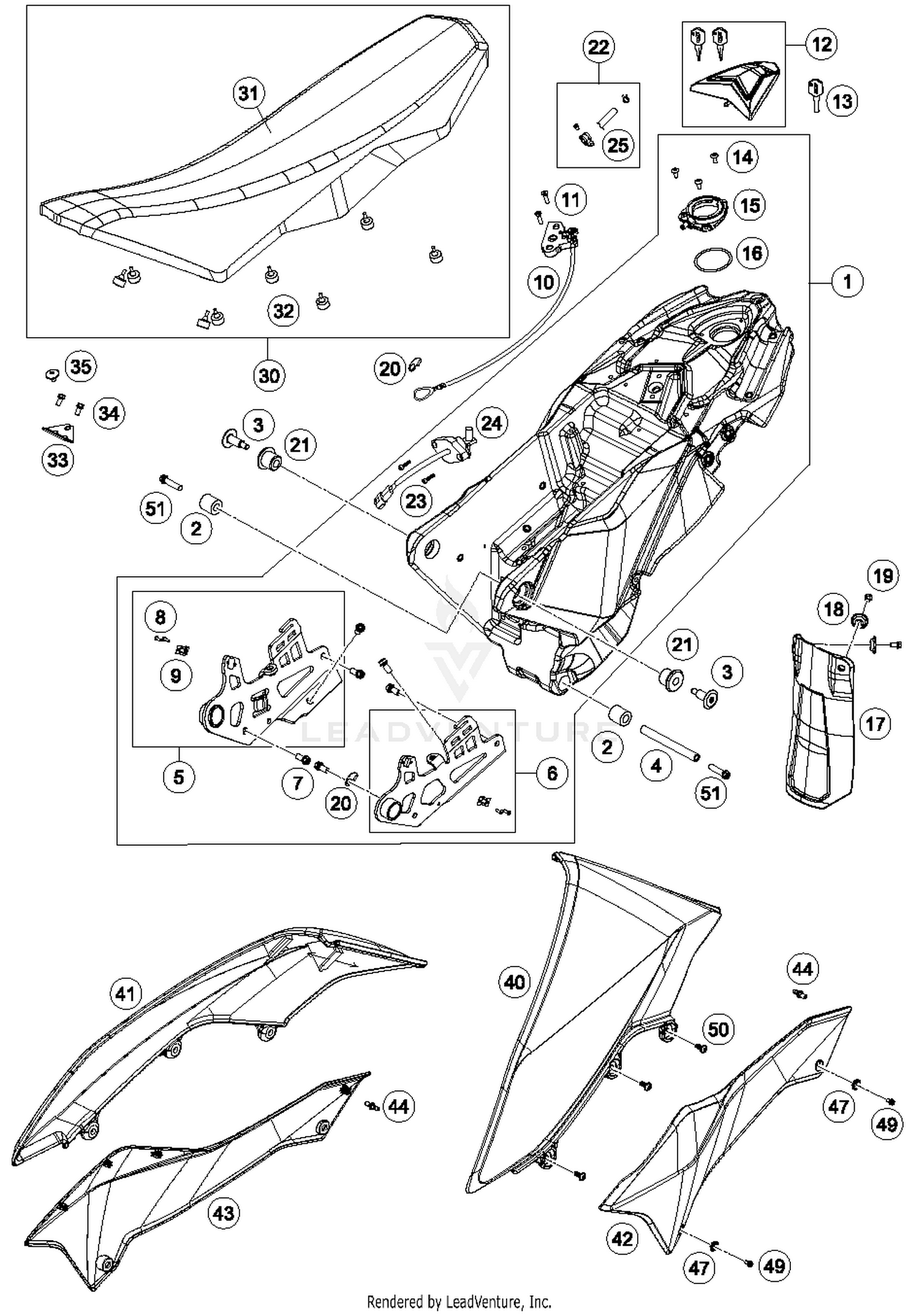

2015 KTM 690 ENDURO R Tank, Seat, Cover OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 FUEL TANK CPL. 7650701324433A	$1,797.97
Available: Ships in 7-12 days. Add to View Price
#2 RUBBER BUSHING 11,7X24,7 L=26 76507065100	$15.97
Available: Ships in 7-12 days. Add to View Price
#3 Attachement bolt top 76507060000 Superseded by 76507060200	$49.79
Available: Ships in 7-12 days. Add to View Price
#4 Bearing sleeve, bottom 76507061000 Superseded by 76507061100	$20.29
Available: Ships in 7-12 days. Add to View Price
#5 TANK-RETAINING PLATE R/S 08 76507028000	$102.02
Available: Ships in 7-12 days. Add to View Price
#6 TANK-RETAINING PLATE L/S 76507027100	$84.66
Available: Ships in 7-12 days. Add to View Price
#7 HH COLLAR SCREW M8X16 TX40 0025080166	$3.07
Available: Ships in 7-12 days. Add to View Price
#8 BLIND RIVET 3,3X9,7 GROOVED 04 54806108052	$1.09
Available: Ships in 7-12 days. Add to View Price
#9 QUICK RELEASE-SPRING HANGER 54806008050	$1.20
Available: Ships in 7-12 days. Add to View Price
#10 SEAT LOCK 76507050000	$39.32
Available: Ships in 7-12 days. Add to View Price
#11 BHCS ISO 7380 M6X18 0738060181	$1.18
Available: Ships in 7-12 days. Add to View Price
#12 TANK CAP 76507008100	$117.61
Available: Ships in 7-12 days. Add to View Price
#13 Ignition lock 40011166100 Superseded by 76911067010	$15.06
Available: Ships in 7-12 days. Add to View Price
#14 SCREW TORX M5X10 05 58605083010	$1.89
Available: Ships in 7-12 days. Add to View Price
#15 CLOSING FLANGE 76507108050	$11.39
Available: Ships in 7-12 days. Add to View Price
#16 O-RING 50,00X3,00 VITON 0770050030	$4.03
Available: Ships in 7-12 days. Add to View Price
#17 SPLASH PROTECTOR 76506010000 Superseded by 76506010100	$9.78
Available: Ships in 7-12 days. Add to View Price
#18 BUCKET 72210079000	$2.73
Available: Ships in 7-12 days. Add to View Price
#19 HH collar screw M6x10 TX30 0025060106	$2.02
Available: Ships in 7-12 days. Add to View Price
#20 CLAMP F. CABLE SEAT LOCK 76507053000	$6.76
Available: Ships in 7-12 days. Add to View Price
#21 RUBB.BEAR.BOX 12x24x35 L=24,5 76507066000	$13.59
Available: Ships in 7-12 days. Add to View Price
#22 TANK BREAT. - MODIFICATION KIT 76507031044	$52.47
Available: Ships in 7-12 days. Add to View Price
#23 AH SCREW DIN0912-M 5X16 0912050163	$0.70
Available: Ships in 7-12 days. Add to View Price
#24 GAS-LEVEL SENSOR ADV. 2006 58207080100	$75.54
Available: Ships in 7-12 days. Add to View Price
#25 HOSE EPA D=4/8 L=2000MM 78015021000	$49.88
Available: Ships in 7-12 days. Add to View Price
#30 SEAT 76507140000	$213.83
Available: Ships in 7-12 days. Add to View Price
#31 SEAT COVER 2012 76507140050	$42.76
Available: Ships in 7-12 days. Add to View Price
#32 SEAT RUBBER 10 MM 75007046010	$2.84
Available: Ships in 7-12 days. Add to View Price
#33 BRACKET F. SEAT 76507048000	$18.13
Available: Ships in 7-12 days. Add to View Price
#34 COLLAR SCREW M6X12 TX 0023060123	$1.18
Available: Ships in 7-12 days. Add to View Price
#35 SCREW FOR SEAT M6X11,5/8 58407011100	$3.68
Available: Ships in 7-12 days. Add to View Price
#40 SPOILER L/S BLACK 7650815010030	$16.29
Available: Ships in 7-12 days. Add to View Price
#41 SPOILER R/S BLACK 7650815110030	$16.29
Available: Ships in 7-12 days. Add to View Price
#42 SIDE COVER L/S WHITE 14 7650814100028B	$67.99
Available: Ships in 7-12 days. Add to View Price
#43 SIDE COVER R/S 14 7650814200028B	$67.99
Available: Ships in 7-12 days. Add to View Price
#44 QUICK RELEASE-NIPPLE 03 54806008051	$1.86
Available: Ships in 7-12 days. Add to View Price
#47 collar bushing 6.5x16x5 mm 76508043150	$7.19
Available: Ships in 7-12 days. Add to View Price
#49 HH collar screw M6x16 TX30 0025060166	$2.02
Available: Ships in 7-12 days. Add to View Price
#50 EJOT PT screw K50x12 0081050121	$1.18
Available: Ships in 7-12 days. Add to View Price
#51 HH COLLAR SCREW M8X30 TX40 0025080306S	$2.97
Available: Ships in 7-12 days. Add to View Price
