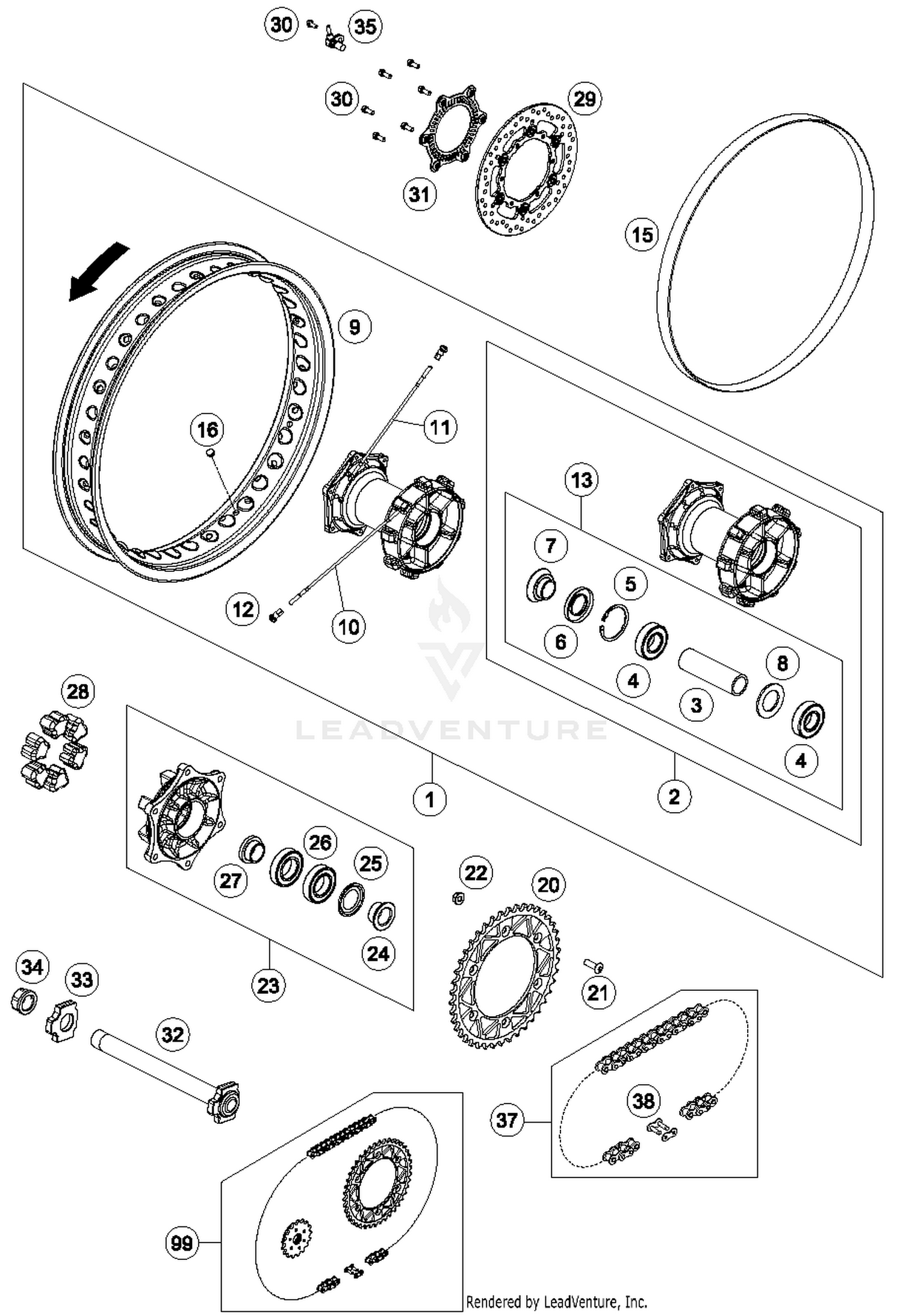

2015 KTM 690 ENDURO R Rear Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL CPL. 2,50X18'' 08
7651000104430
|
$801.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REAR WHEEL HUB CPL.
7531001004491
|
$303.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING SPACER TUBE L=106MM 07
75310011000
|
$20.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$30.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-52X2
0472052200
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT SEAL RING 30X52X7
0760305271
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER BUSH. REAR WHEEL R/S 06
60110013000
|
$21.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPACER RING 03
60010015000
|
$10.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RIM 2,50X18'' DID BLACK 08
7651007000030
|
$317.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPOKE M5X217 -17G 18'' INOX
75310073217
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPOKE M5X207-27G 18'' INOX
75310173207
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Spoke nipple Quadrax M5
58309072100
Superseded by 60310072200
|
$1.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
REAR WHEEL REP. KIT
75010015000
|
$82.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
RIM BAND REAR 2MM 2003
58410073200
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLUG FOR RIM
55003135000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPROCKET 45T 08
75010051045
|
$64.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPROCKET STEALTH 42T 07
75010051042
|
$68.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
hex nut EN 1661 M8 WS13
06923080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SPROCKET SUPPORT CPL. SILVER
7501005004491
|
$206.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPACER BUSH. SPROCKET SUPP. 06
60110012000
|
$18.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
NILOS RING 6006AV
60110016000
|
$9.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BALL BEARING 6006 DDU2CG23S6NM
0625060060
|
$17.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
|
$16.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
RUBBER DAMPING BLOCK '91
54610459000
|
$7.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BRAKE DISK REAR D=240
76510160000
|
$225.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
SHCS ISO 14580 M6x16 SL
014580060166S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SENSOR WHEEL ABS REAR
76542021000
|
$32.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
WHEEL SPINDLE CPL.
75310085144
|
$74.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
CHAIN TENSIONER R/S LC8 03
60010084000
|
$21.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
COLLAR NUT WH. SPINDLE REAR 03
60010086000
|
$13.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
ABS-SENSOR
76042025000
|
$79.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
CHAIN DID 118 LINKS
78010167118
Superseded by 78010267118
|
$112.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
RIVETING LINK FOR 78010167118
78010166100
Superseded by 78010266100
|
$13.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Drivetain kit 15Z/42Z
00050002016
Superseded by SPAB15G423M118B
|
$179.95 | ||
|
Unavailable |
|||
