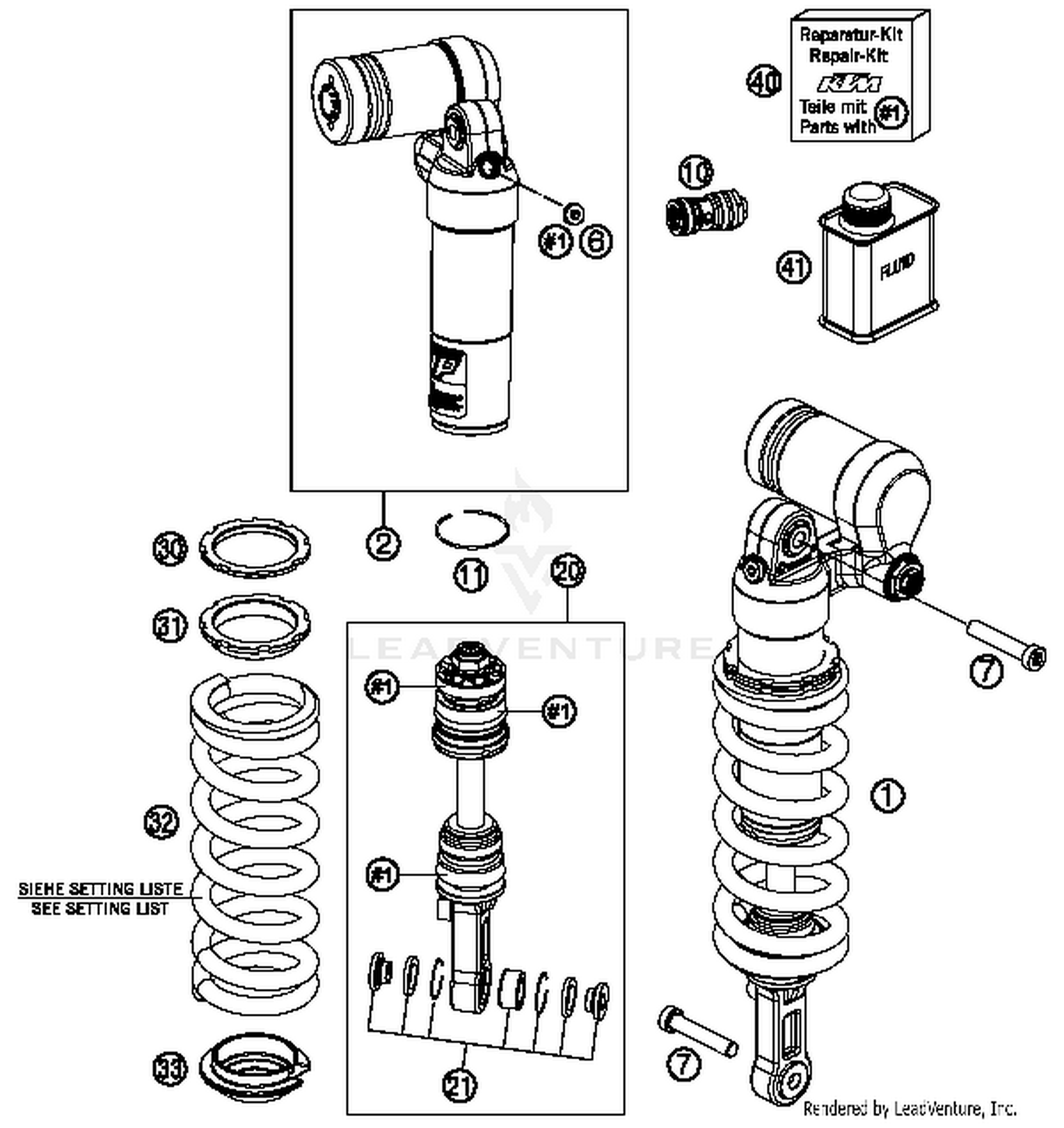

2015 KTM 690 ENDURO R Monoshock OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK ENDURO-R 2012
15187L1001
|
$1,814.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SHOCK ABS. UPPER CPL. 09
46180776S1
|
$771.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HS cylinder-head screw R1/8 l8
50180095
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CYL. SCREW M10X1,25 L=53
76504016000
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Compression cpl.
46180533S1
|
$406.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Round-wire snap ring 49x1,8
46810010
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MONOSH. LOWER PART CPL. ENDURO
46180654S14
|
$878.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
REPAIR KIT BEARINGS 07
R15006
|
$115.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
Lock nut shock M54x1,5
46180766
|
$25.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Adjustment nut shock M54x1,5
46180855
|
$45.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
SPRING 220MM 80N/MM (61)
91110004S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
SPRING 220MM 85N/MM (61)
91110005S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Spring retainer 28x73x15 black
46180396
Superseded by 46181299
|
$61.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
REPAIR KIT GASKET 05
R15004
|
$100.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$197.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
