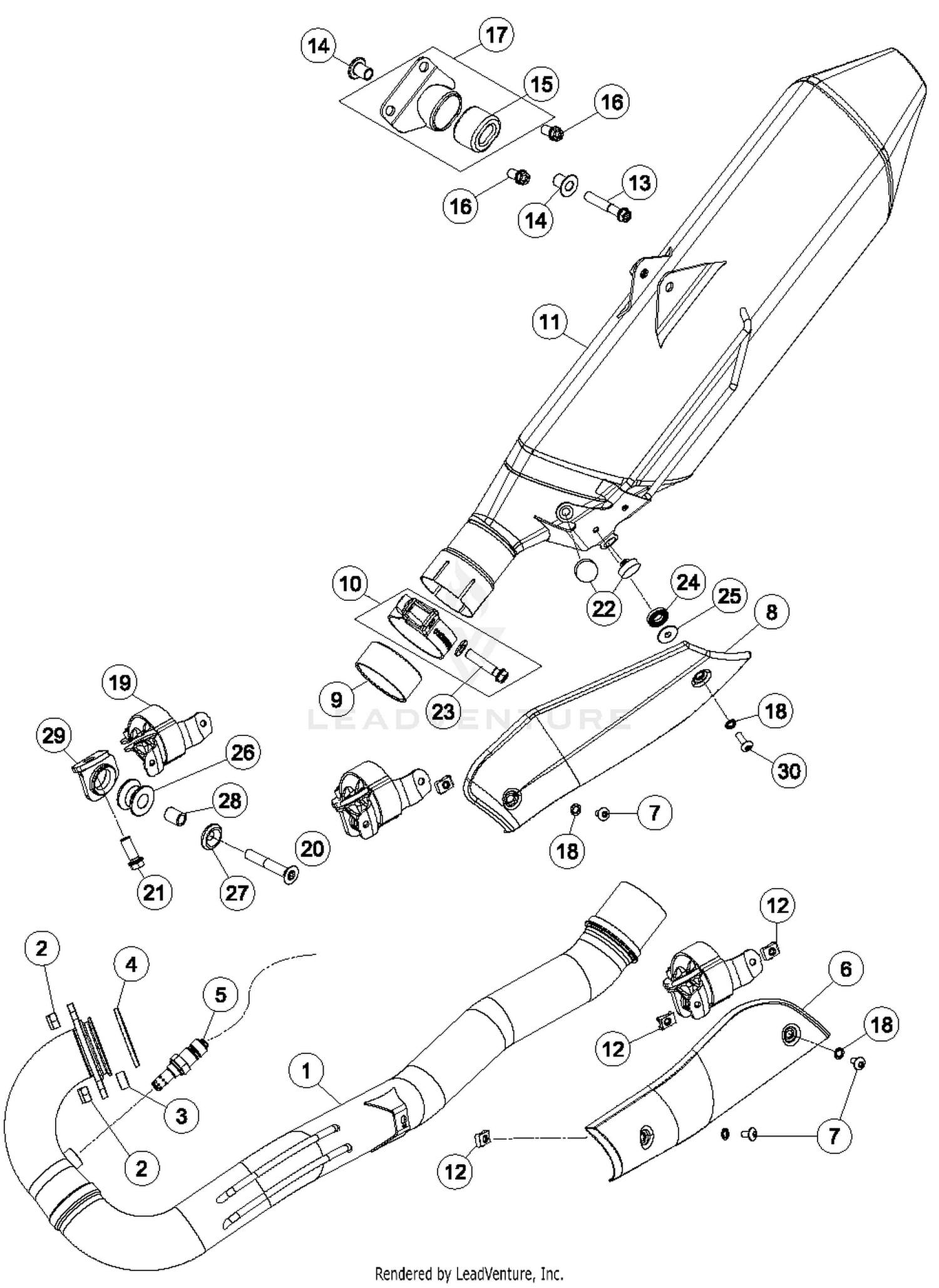

2015 KTM 690 ENDURO R Exhaust System OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD CPL. LC4 ENDURO
76505007100
|
$589.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
self-locking nut M8 Cu
51010086100
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SPACER BUSH. 8,5X15X7,5 05
61005009000
|
$4.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
EXHAUST GASKET 05
61005005000
|
$9.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
LAMBDA SENSOR
75041090100
|
$161.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HEAT SHIELD EXHAUST MANIFOLD
76505090010
|
$76.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW TORX M5X10
78105081010
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HEAT SHIELD SILENCER
76505090020
|
$71.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GRAPHIT RING 55X50X25 05
58605005000
|
$16.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLAMP FOR SILENCER 57,4MM 08
76505051000
|
$27.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SILENCER USA
76505082200
|
$1,648.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
clip nut M5
69008021080
|
$2.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
HH collar screw M8x45 TX40
0025080456
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Bushing
60305069000
Superseded by 60305069100
|
$1.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
DAMPING RUBBER
61305068000
|
$15.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
HOLDER SILENCER CPL.
76505084100
|
$57.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
TOOTH LOCK WASHER DIN6797-J
0797050000
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP WELD ASSEMBLY
76505007025
|
$31.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
COUN.-SUNK SCREW M8X50 ISA10.9
0019080506
|
$1.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HH collar screw M8x20
0025080206
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
RUBBER BUFFER
54308042000
|
$2.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HH collar screw M8x35 TX40
0025080356
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
decoupling element
75036052010
|
$3.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BUSH 5.5X9X19X3.5
76505069000
|
$11.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
damp. component silicone grey
54305068100
|
$8.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPECIAL WASHER 8X24 ALU H=4,2
62603061000
|
$5.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
SPACER BUSHING 8,4X12X16
56505069000
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
EXHAUST SUPPORT
76505007027
|
$36.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
SCREW M5X14 TORX 25 07
58605083014
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
