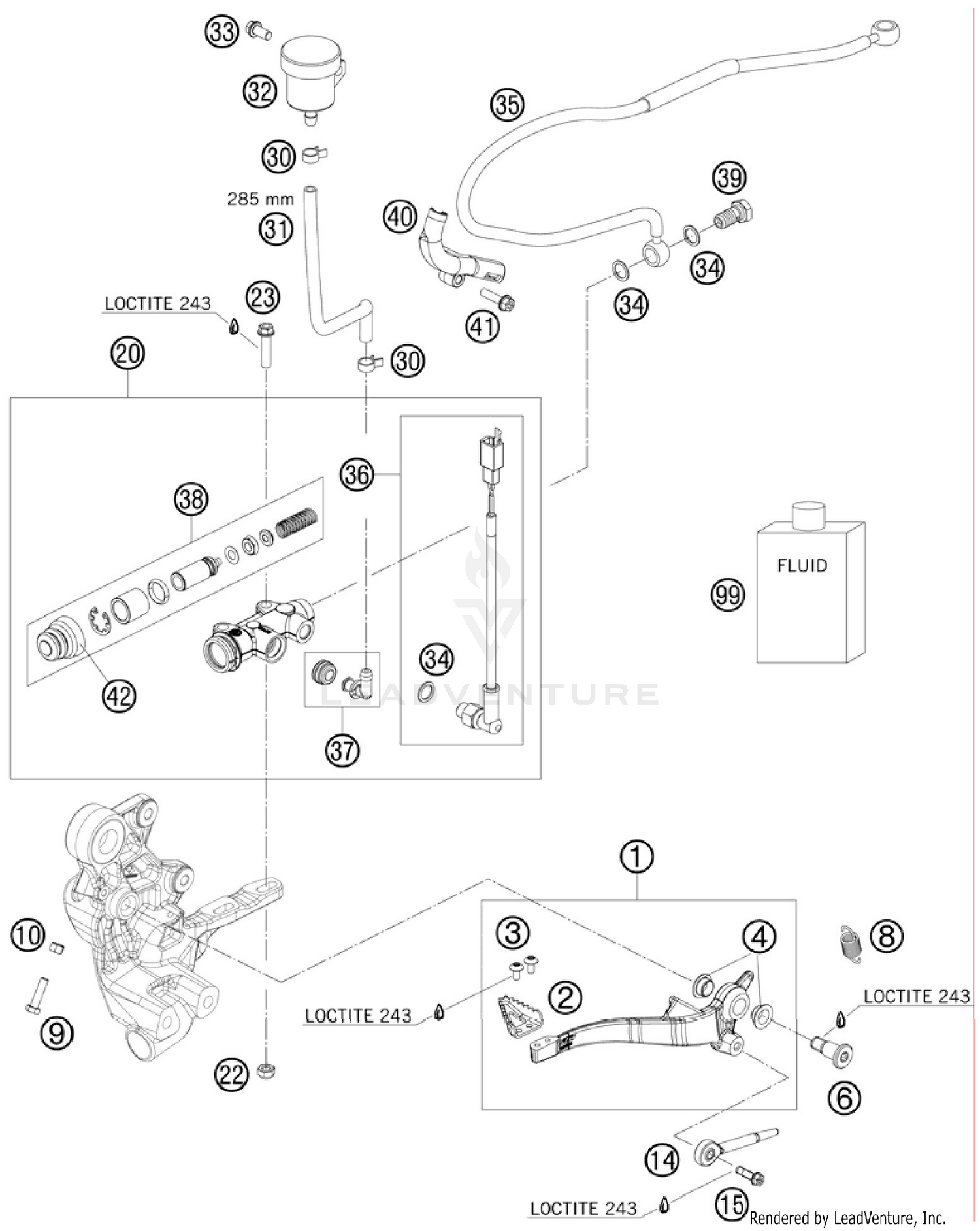

2010 KTM 690 ENDURO R Rear Brake Control OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
STEP PLATE FOOT BRAKE LEVER 03
60013051000
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SCREW TORX M5X10 05
58605083010
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SLIDE BEARING FOOT BRAKE LEVER
76513053000
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPECIAL SCREW M10 LH PRECOTE
76513057100
|
$15.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH SCREW DIN933 M5x20
0933050203
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HEXAGON NUT DIN0934-M 5
0934050003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PUSH ROD
76513056000
|
$52.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HH collar screw M6x20 TX30
0025060206S
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
FOOT BRAKE CYLINDER 13MM
76513060000
|
$140.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STOP NUT M6 DIN6926 A2-70
0926060000
|
$2.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HH collar screw M6x25 TX30
0025060256
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$15.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BRAKE FLUID RESERVOIR '89
54513030044
|
$19.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
COLLAR SCREW M6X12 TX
0024060123
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
BRAKE HOSE REAR 805MM
76513072000
|
$74.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BRAKE LIGHT SWITCH REAR
76511051000
|
$39.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
ANGLE PIECE
54513155000
|
$14.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
REPAIR KIT PISTON 13MM
76513061000
|
$55.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
banjo bolt M10x1x19 black
54813020100
|
$9.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
BRACKET FOR BRAKE HOSE 08
76513047000
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
HH collar screw M5x20 TX30
0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
RUBBER SLEEVE
54513151000
|
$17.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
