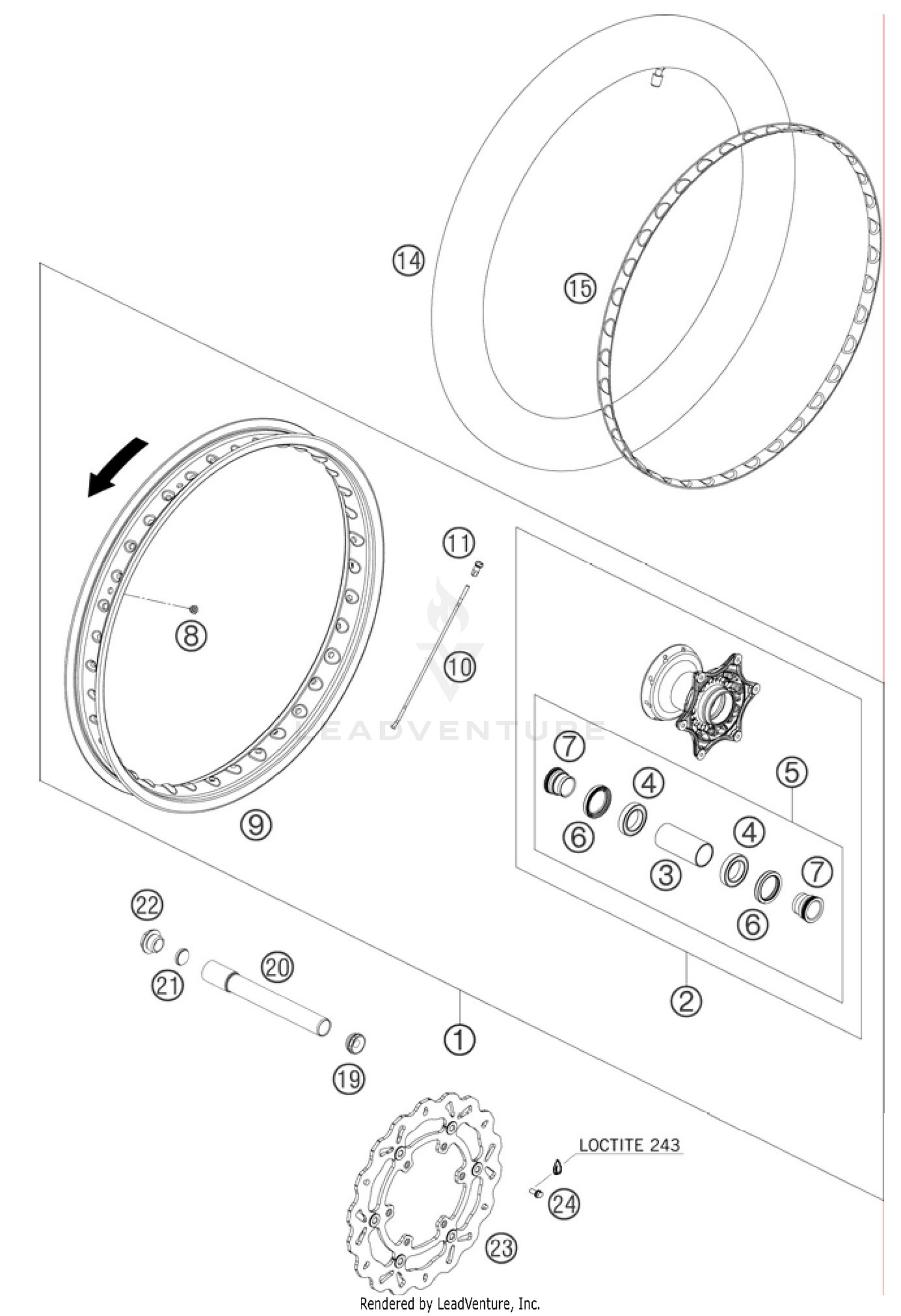

2010 KTM 690 ENDURO R Front Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL. 1,85X21'' 08
7650900104430
|
$839.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FRONT HUB CPL. 08
75309010044
|
$294.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEA.SPACERTUBE 35X2 L=79,4 03
54809011000
|
$25.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$33.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
FRONT WHEEL REP. KIT
78009015000
|
$106.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$8.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER BUSHING F. FR. WHEEL 08
78009012000
|
$30.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLUG FOR RIM
55003135000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RIM 1,85X21'' DID BLACK 08
7650907000030
|
$366.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPOKE M4,5X226-18'' INOX
75309073226
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Spoke nipple, Quadrax M4,5
50309072100
Superseded by 81210072200
|
$1.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HOSE 21"
50309075000
|
$38.19 | ||
|
Unavailable |
|||
|
#15
RIM BAND FRONT 2MM 2003
58409073100
|
$7.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG BUSHING WS=27 03
54809081050
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Wheel spindle, front
77309081000
Superseded by 77309081100
|
$82.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
AUXILIARY SCREW FRONT 06
54809081070
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPINDLE SCREW M24X1,5 WS=27 03
54809082000
|
$9.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
FRONT BRAKE DISC D=300
76509060100
|
$384.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
