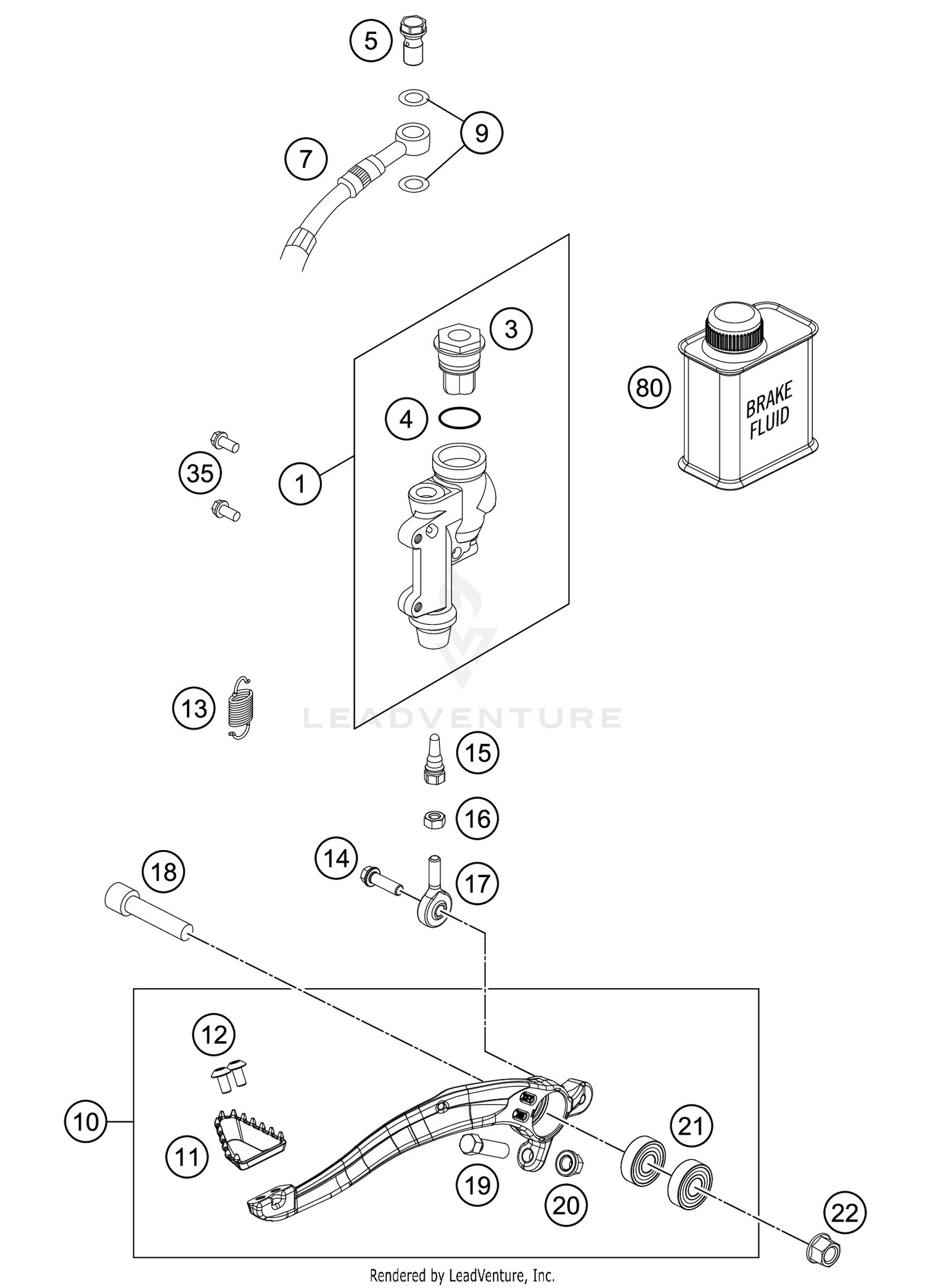

2020 KTM 450 SX-F REAR BRAKE CONTROL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR BRAKE CYLINDER CPL.SX 09
77013060044
|
$296.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
REAR BRAKE CYL. COVER CPL. 04
54813062100
|
$45.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FOOT-BRAKE CYL. GASKET SX 03
54813063000
|
$9.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
banjo bolt M10x1x19 black
54813020200
Superseded by 54813020100
|
$9.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Rear Brakehose
77213070300
|
$93.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FOOT BRAKE LEVER CPL.
79413050044
|
$153.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STEP BRAKE LEVER 16
79413051000
|
$24.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW TORX M5X10
78105081010
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RETURN SPRING F. BRAKE LEVER
79003062000
|
$4.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HH collar screw M6x20 TX30
0025060206S
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PUSH ROD L=28MM 03
54813056000
|
$15.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Joint head CMP6
54813055000
Superseded by 54813055100
|
$18.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$3.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPECIAL SCREW M8X26 WS=10
59001037000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
flanged nut M8 WS10
46030045000
|
$7.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
deep groove ball bearing SKF 6000-2RS1
0625060002
|
$12.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
