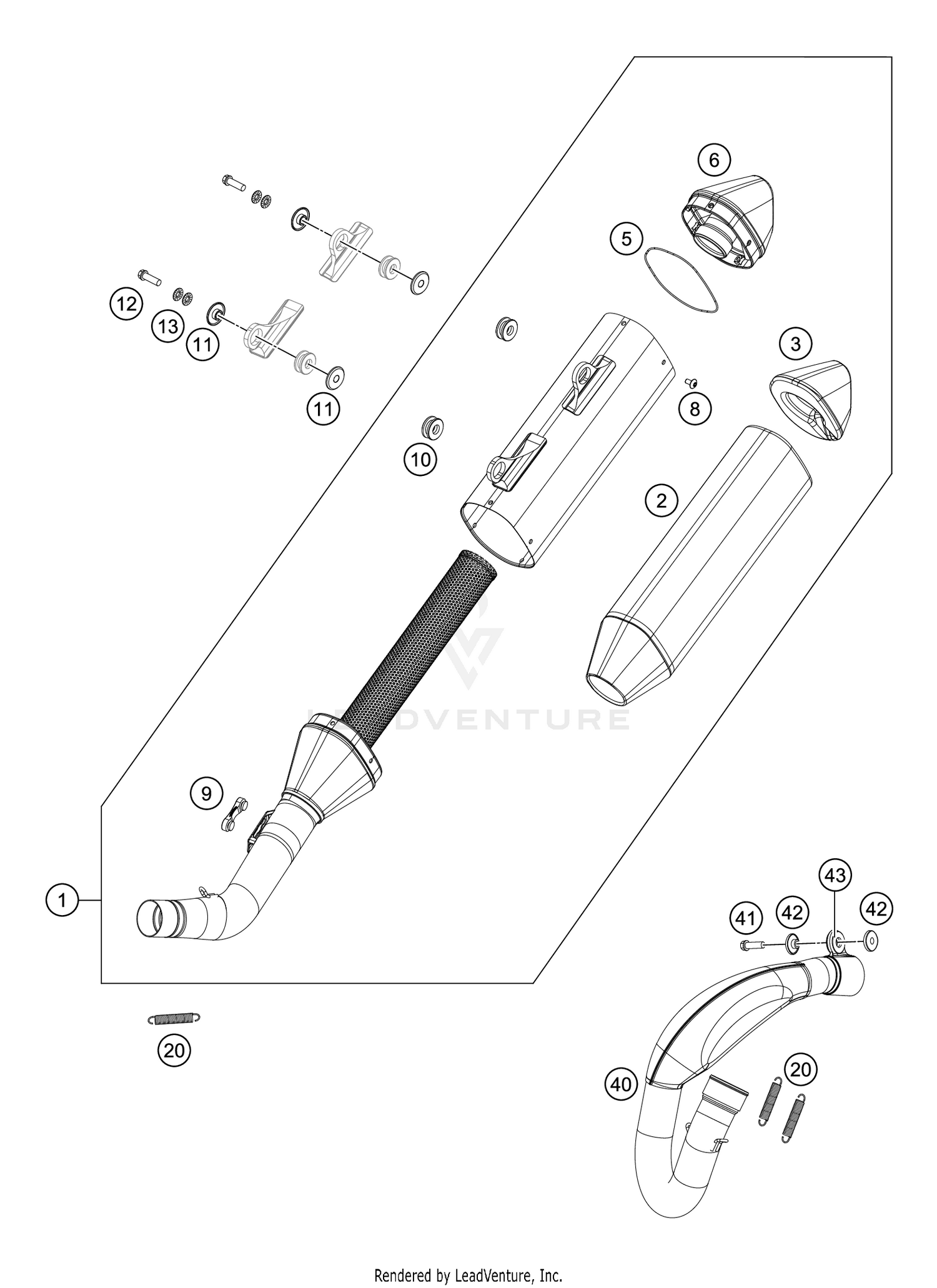

2020 KTM 450 SX-F EXHAUST SYSTEM OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Silencer
79105079000
Superseded by 79105079100
|
$891.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Rockwool preformed
79105078520
|
$43.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Rockwool preformed
79105078080
Superseded by A46005078080
|
$15.59 | ||
|
Unavailable |
|||
|
#5
O-RING 80,00X2,00 VITON
0770800021
|
$6.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Endcap cpl.
79105079060
|
$192.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW TORX M5X10
78105081010
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
exhaust spacer
79105098000
|
$5.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
DAMP. COMPON. BLACK
77205068000
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUSHING 7.5x12x28x8.3 11
77205169000
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HH collar screw M6x30 TX30
0025060306
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Tension spring L=65ámm
50305016000
Superseded by 50305016200
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
Exhaust mainfold 450 SX-F
79505007100
Superseded by 79505007200
|
$365.63 | ||
|
Unavailable |
|||
|
#41
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
BUSHING 8.5x12x28x8.3
77805069000
|
$5.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Damper gray
79105068000
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
