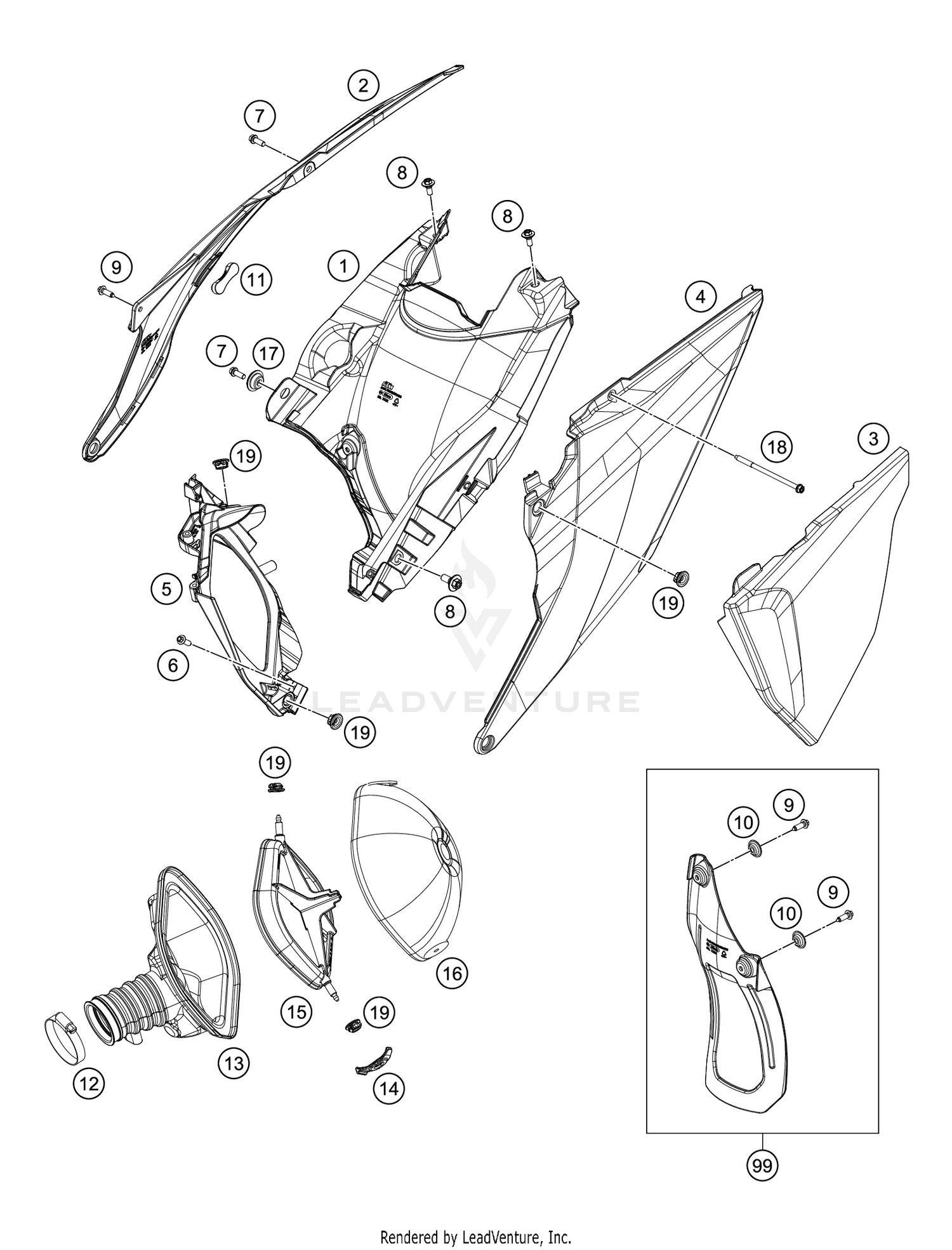

2020 KTM 450 SX-F AIR FILTER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 Air filter box 79106001000AB	$28.99
Available: Ships in 7-12 days. Add to View Price
#2 Filter box cover right 79106004000AB	$24.99
In Stock: Ready to ship. Add to View Price
#3 Air filter cover left 79106003000ABA	$49.99
Available: Ships in 7-12 days. Add to View Price
#4 Filter box cover left 79106005000AB	$43.19
Available: Ships in 7-12 days. Add to View Price
#5 Air filter box front part 79106001010AB	$16.99
Available: Ships in 7-12 days. Add to View Price
#6 SCREW FOR PLASTIC K60X20 SW6 0017060205	$1.07
Available: Ships in 7-12 days. Add to View Price
#7 HH collar screw M6x16 TX30 0025060166	$2.02
Available: Ships in 7-12 days. Add to View Price
#8 SPECIAL SCREW M6X15X3 83008000015	$2.26
Available: Ships in 7-12 days. Add to View Price
#9 SCREW F. PLASTIC K60X20AL SW6 0017060206	$2.70
Available: Ships in 7-12 days. Add to View Price
#10 Chain slider bushing 77304066050 Superseded by 77304066150	$0.49
Available: Ships in 7-12 days. Add to View Price
#11 exhaust spacer 79105098000	$5.11
Available: Ships in 7-12 days. Add to View Price
#12 HOSE CLAMP 45-65MM 78006027000	$4.03
Available: Ships in 7-12 days. Add to View Price
#13 Airbox rubber 79506026000	$61.66
Available: Ships in 7-12 days. Add to View Price
#14 FILTER MOUNTING BRACKET 79006017000	$1.09
Available: Ships in 7-12 days. Add to View Price
#15 AIR FILTER SUPPORT 79006016000	$23.68
Available: Ships in 7-12 days. Add to View Price
#16 AIR FILTER 79006015000	$31.49
Available: Ships in 7-12 days. Add to View Price
#17 COLLAR BUSH. F.REAR FENDER 07 77308013010	$4.69
Available: Ships in 7-12 days. Add to View Price
#18 Seat screw 79107040010	$2.13
Available: Ships in 7-12 days. Add to View Price
#19 quick release rubber grommet 47106003160	$3.32
Available: Ships in 7-12 days. Add to View Price
#99 SPLASH PROTECTOR KIT 79006010010	$22.99
Available: Ships in 7-12 days. Add to View Price
