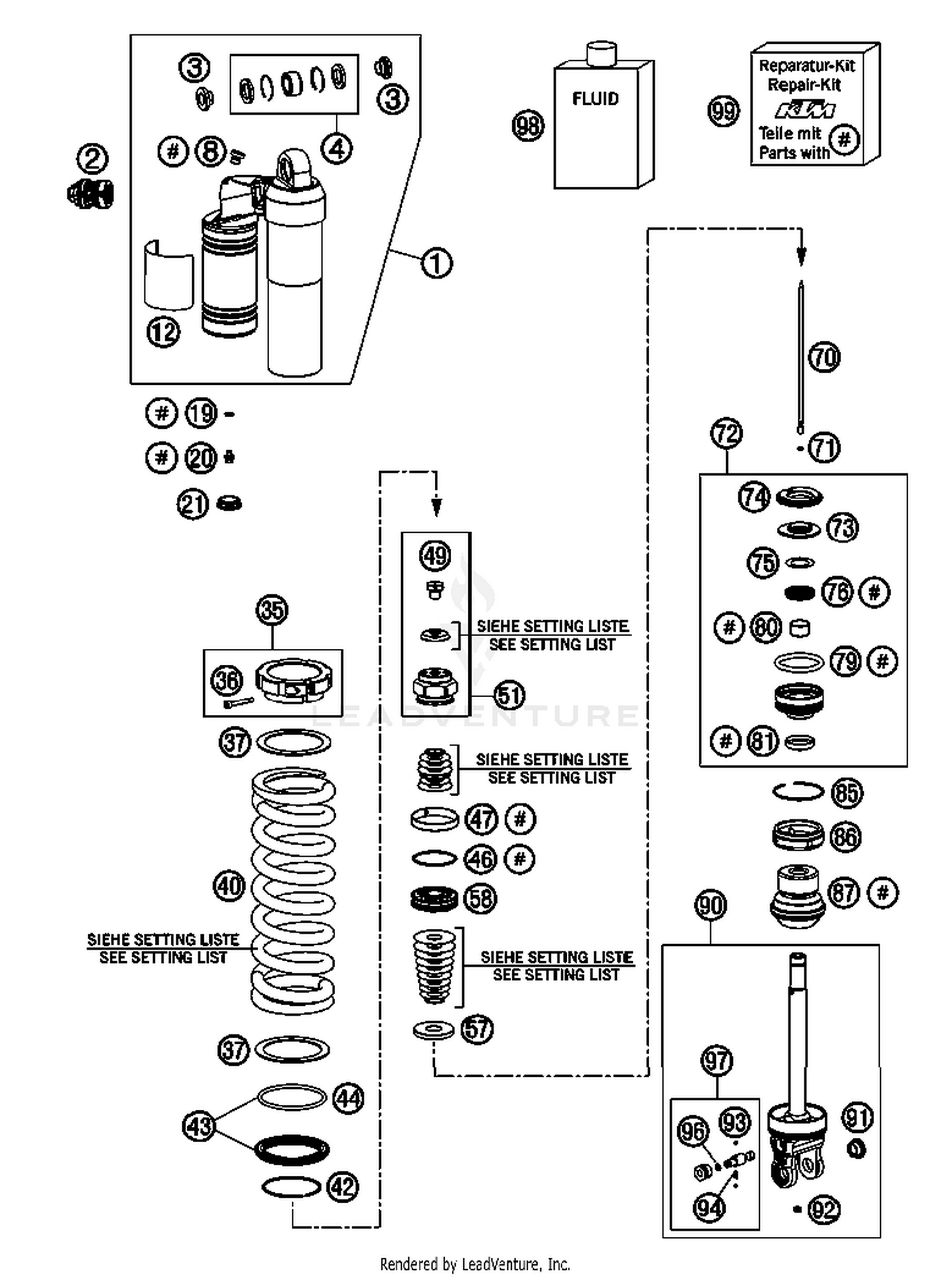

2008 KTM 450 SMR Monoshock Disassembled OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TOP PART CPL. M57,5X1 H30,5
50180597S3
|
|||
|
Unavailable |
|||
|
#2
DCC-COMPR.DAMP.CONTROL CPL.
50180213S4
|
|||
|
Unavailable |
|||
|
#3
Distance bush 12x15/18/24,5x10,5
46180007
|
$17.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$33.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HS cylinder-head screw R1/8 l8
50180095
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Sticker WP PDS 62x100
52000041
Superseded by 52000085
|
$16.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O-ring 5,28x1,78 NBR70 black
46810893
|
$0.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151S
|
$11.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Rubber cap do not open 22x5,5 NBR
46811208
|
$2.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
SPRING RET. (SCREW) M56X1 ANO.
50180520S
Superseded by 50180582S
|
$156.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
HS cylinder-head screw M5x30
50180327
|
$3.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
Intermediate washer spring 61,7x78x1,5
50180114
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 250 76N/MM
91210070S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING (64/62) 80-250
91210072S
Superseded by 91210119
|
$163.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 250 84 N/MM
91210073S
|
$139.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
Round-wire snap ring 58,5x2
50180273
|
$1.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
SPRING RET. D=80 W. O-RING 05
50180463S
|
$32.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
O-ring 66,27x1,78 Viton70
50180352
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
O-ring 44x,17x1,78 Viton70
50180099
|
$1.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
Piston ring 47,95x49,95x8
50180135
|
$11.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
HH screw ventilation M6 l5,5
46180056
|
$10.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
PISTON ROD NUT M16X1 CPL.
50180616S
|
|||
|
Unavailable |
|||
|
#57
REBOUND DISC D=34, H=8
50180196
|
$68.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#58
Piston 16,05x49,6x13,5 4,5/7
50180197
|
$45.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#70
NEEDLE L=171
50180513
|
$11.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#71
O-ring 2,2x1,6 Viton75 green
46811265
|
$0.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#72
Sealholder 50x28 cpl.
50180603S
|
$74.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#73
Washer 18,5x43,7x6
50180113
|
$25.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#74
Rubber pad rebound 27x48x8 NBR80
50180107
|
$3.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#75
Shim 29,75x19x0,4
50180604
|
$1.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#76
Seal ring cpl. 18x30x5
50180605S
Superseded by 50180605ST
|
$21.95 | ||
|
Unavailable |
|||
|
#79
O-ring 41x5 NBR70
50180103
|
$0.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
Guide bushing 18x20x12
46180119
|
$5.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#81
Dirt scarper NOK 18mm black
50180606
|
$6.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#85
Round-wire snap ring 53x1,75
50180126
|
$0.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#86
COVER D=50 07
50180511
|
$35.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#87
Rubber pad 17x58x59
50180480
|
$19.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#90
MONOSHOCK LOWER PART CPL. 07
50180512S1
|
$638.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#91
Threaded bush M12 d20
50180105
|
$15.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92
Rubber plug 8x3,5 NBR50
50180297
|
$2.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#93
Steel ball d3
40540603
|
$0.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#94
Spring (1,7) l7,9
48600028
|
$2.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#96
O-ring 4x1,5 NBR70
50180222
|
$0.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#97
ADJUSTING SCREW REBOUND TRAVEL
50180434S
|
$28.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180342S1
Superseded by 50180751S1
|
$197.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
REPAIR KIT 5018 PDS 06
R12014
|
$158.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
