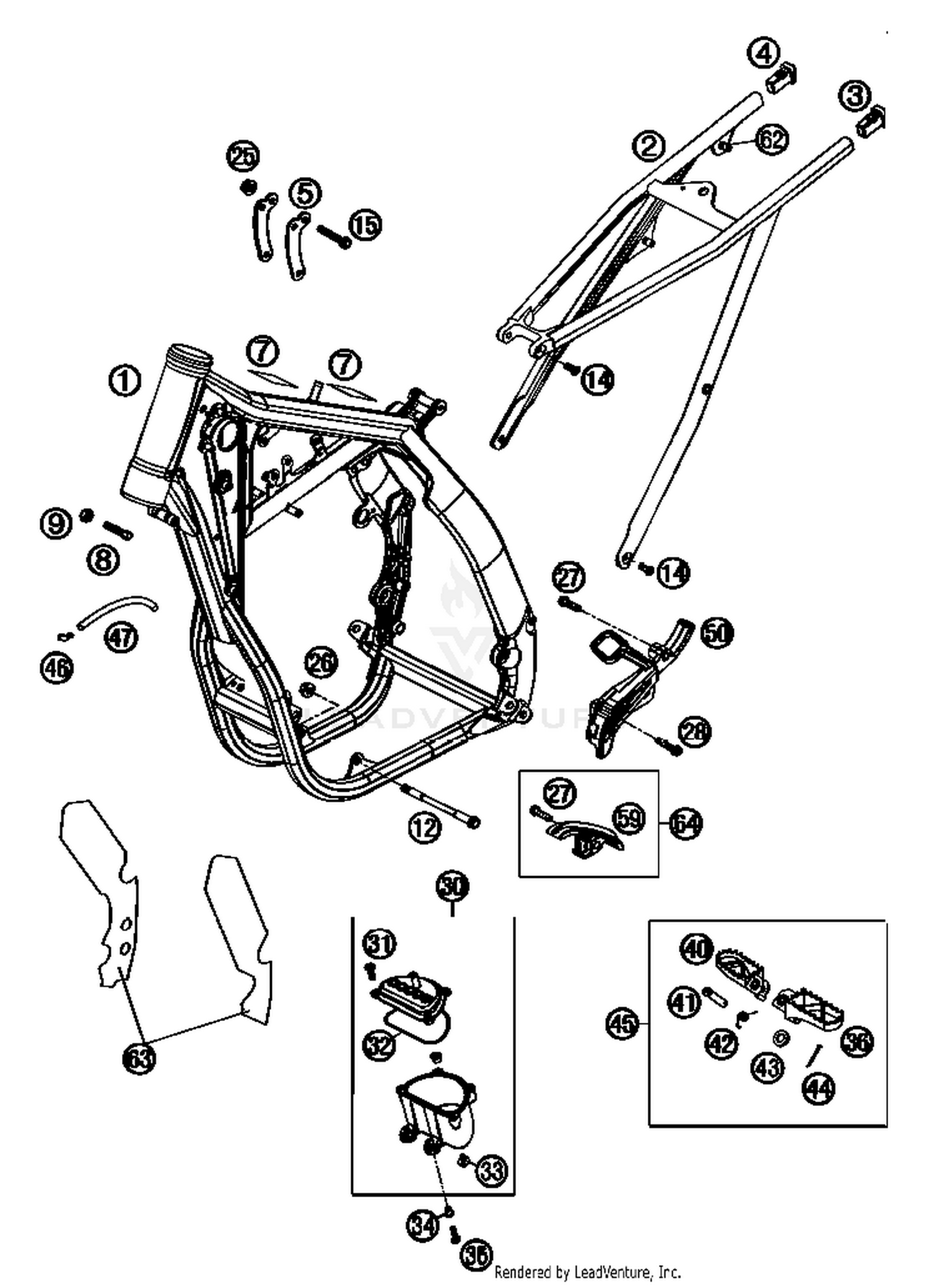

2008 KTM 450 SMR Frame OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SMR "JE08"
7730320100030
|
|||
|
Unavailable |
|||
|
#2
SUB FRAME SX ''Q7'' 07
77303002000
|
$379.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
ENGINE BRACE 450 SX-F 07
77303013000
|
$19.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
|
$1.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
ENGINEBRAC.SCREW M10X123 WS=13
59003013000
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HH collar screw M6x40 TX30
0025060406
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
EXPANSION TANK CPL. 2004
59431096000
|
$63.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
O-RING 80,00X2,00 VITON
0770800021
|
$6.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
HH COLLAR SCREW M6X10 TX30
0024060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
COLLAR BUSHING 6,3X8X13X9,5
58314060050
Superseded by 45239060050
|
$4.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
HH COLLAR SCREW M6X25 TX30
0024060256
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$12.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
PIN DIN0094-3,2X25 STEEL
0094032253
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
FOOTPEG L.+R. CPL. 03
5030314013390
|
$167.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$4.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
HOSE EPA D=6/10 L=2000MM
78015019001
Superseded by 78015019000
|
$62.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
CHAIN SPROCKET COVER
77303096000
|
$14.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59
CHAIN SLIDING PIECE BELOW 07
77303053000
|
$8.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#62
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#63
FRAME PROTECTION STICK. SET 07
77303094000
|
$33.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#64
CHAIN SLIDING KIT BELOW CPL07
77303053010
|
$10.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
