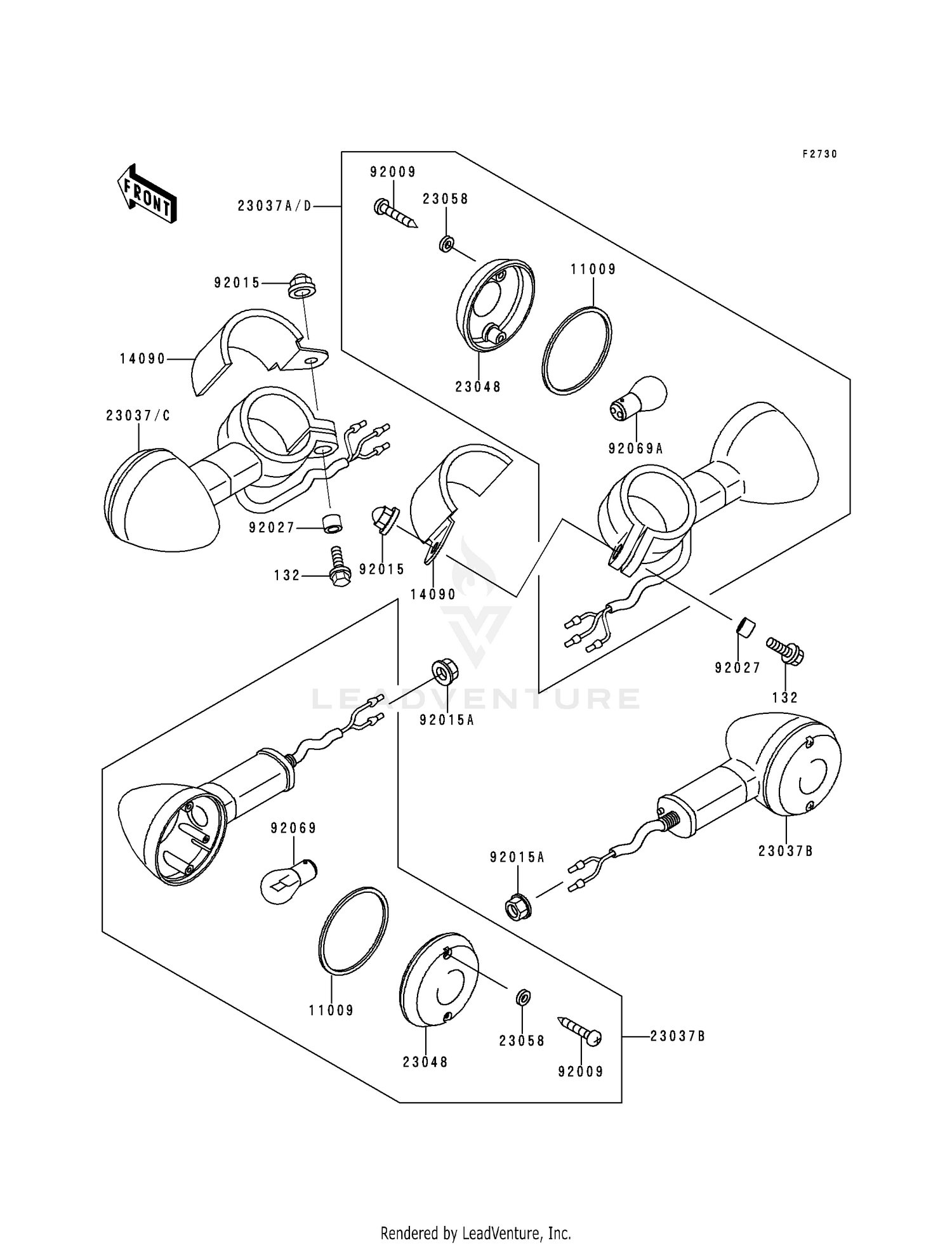

1998 Kawasaki VULCAN 800 TURN SIGNALS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT
132E0620
Superseded by 92002-1607
|
$4.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11009
GASKET,SIGNAL LAMP
11009-1413
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14090
COVER,SIGNAL LAMP
14090-1578
|
$19.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23037B
LAMP-ASSY-SIGNAL,RR
23037-1315
|
$70.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23037C
LAMP-ASSY-SIGNAL,FR,L
23037-1317
|
$82.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23037D
LAMP-ASSY-SIGNAL,FR,R
23037-1318
|
$82.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP,RR
23048-1066
Superseded by 23048-0036
|
$8.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23058
WASHER,PLAIN,4MM
23058-002
|
$2.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X25
92009-1637
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,CAP,6MM
92015-1385
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1428
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X12
92027-162
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$4.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92069A
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
