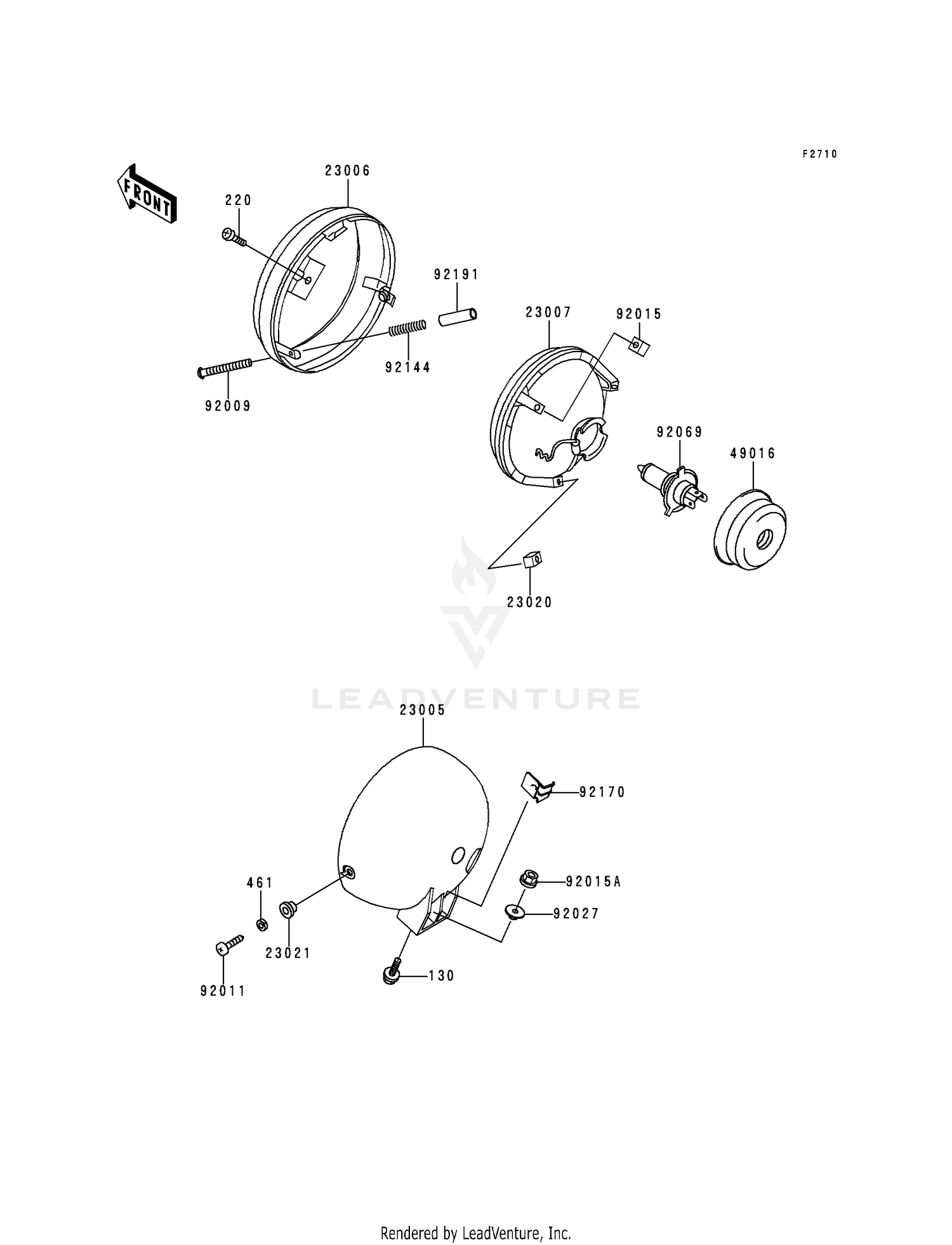

1998 Kawasaki VULCAN 800 HEADLIGHT(S) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#130 BOLT-FLANGED,6X20 130V0620 Superseded by 130BA0620	$1.69
Available: Ships in 7-12 days. Add to View Price
#220 SCREW-PAN-CROS,5X12 220D0512 Superseded by 220AA0512	$0.46
Available: Ships in 7-12 days. Add to View Price
#461 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available: Ships in 7-12 days. Add to View Price
#23005 BODY-COMP-HEAD LAMP 23005-1149	$129.01
Available: Ships in 7-12 days. Add to View Price
#23006 RIM-LAMP 23006-1070	$76.53
Available: Ships in 7-12 days. Add to View Price
#23007 LENS-COMP,HEAD LAMP 23007-1169	$136.29
Available: Ships in 7-12 days. Add to View Price
#23020 NUT,4MM,FOCUS ADJUST 23020-018	$4.33
Available: Ships in 7-12 days. Add to View Price
#23021 WASHER 23021-010	$4.01
Available: Ships in 7-12 days. Add to View Price
#49016 COVER-SEAL,HEAD LAMP SOCKET 49016-1129	$8.99
Available: Ships in 7-12 days. Add to View Price
#92009 SCREW,FOCUS ADJUST,4X65 92009-1472	$5.01
Available: Ships in 7-12 days. Add to View Price
#92011 SCREW,5MM 92011-024 Superseded by 92009-1947	$2.41
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,5MM 92015-1157	$4.54
Available: Ships in 7-12 days. Add to View Price
#92015A NUT,FLANGED,6MM 92015-1367	$3.59
Available: Ships in 7-12 days. Add to View Price
#92027 COLLAR,L=6.5 92027-252	$4.66
Available: Ships in 7-12 days. Add to View Price
#92069 BULB,12V 60/55W,H4 92069-1002 Superseded by 92069-0050	$17.13
Available: Ships in 7-12 days. Add to View Price
#92144 SPRING,FOCUS ADJUST 92144-1149	$7.32
Available: Ships in 7-12 days. Add to View Price
#92170 CLAMP 92170-1624	$5.14
Available: Ships in 7-12 days. Add to View Price
#92191 TUBE,3.5X5.5X19 92191-1217	$2.30
Available: Ships in 7-12 days. Add to View Price
