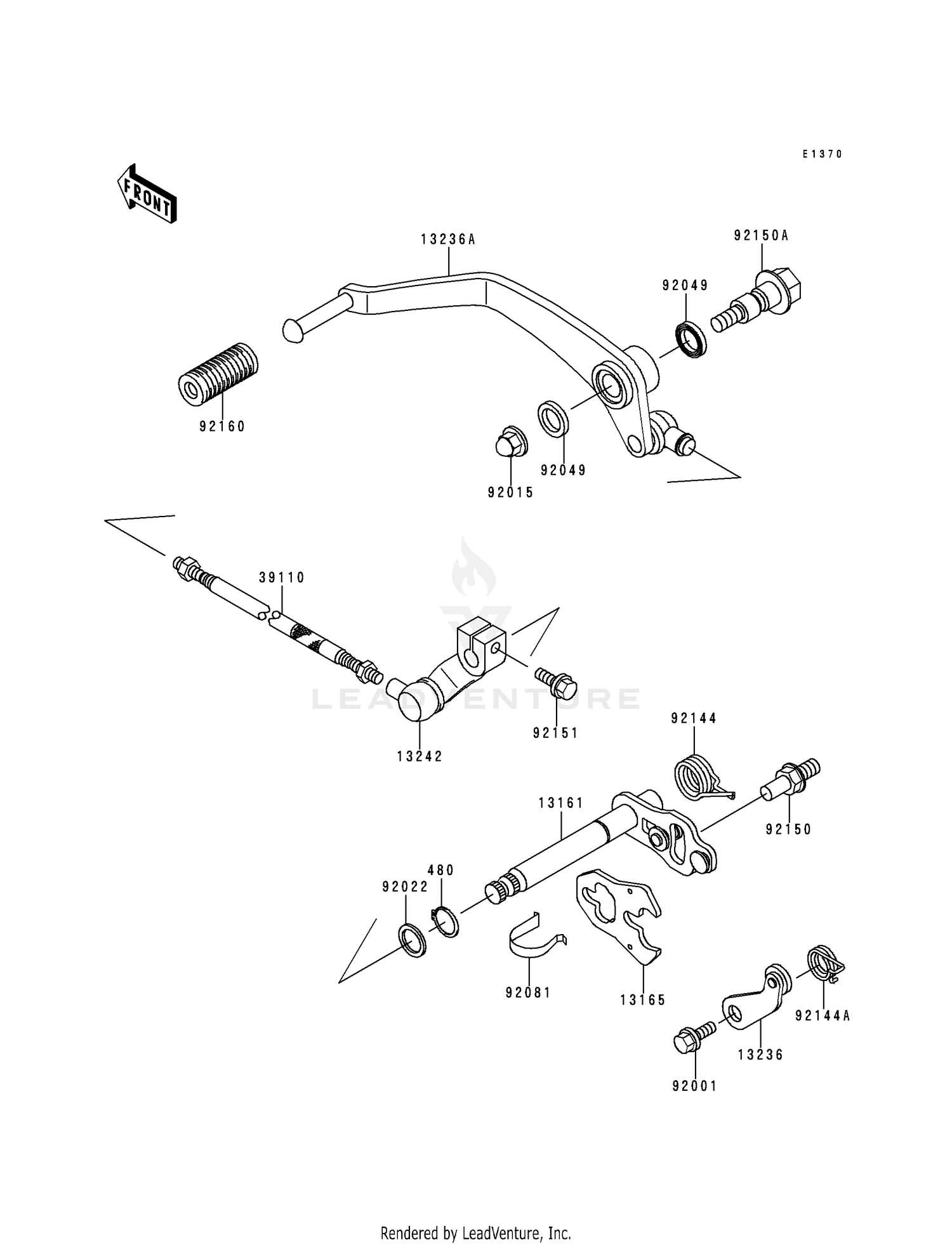

1998 Kawasaki VULCAN 800 GEAR CHANGE MECHANISM OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#480 CIRCLIP-TYPE-C,13MM 480J1300	$3.57
Available: Ships in 7-12 days. Add to View Price
#13161 LEVER-COMP-CHANGE SHA 13161-1218	$65.87
Available: Ships in 7-12 days. Add to View Price
#13165 PAWL,CHANGE LEVER 13165-1151	$13.21
Available: Ships in 7-12 days. Add to View Price
#13236 LEVER-COMP,POSITION 13236-1126	$12.63
Available: Ships in 7-12 days. Add to View Price
#13236A LEVER-COMP 13236-1271 Superseded by 13236-1407	$79.42
Available: Ships in 7-12 days. Add to View Price
#13242 LEVER-ASSY-CHANGE 13242-1290	$53.01
Available: Ships in 7-12 days. Add to View Price
#39110 ROD-ASSY-TIE 39110-1111 Superseded by 39110-1124	$18.10
Available: Ships in 7-12 days. Add to View Price
#92001 BOLT,FLANGED,6X14 92001-1715	$9.90
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,CAP,8MM 92015-1370 Superseded by 92015-1371	$4.66
Available: Ships in 7-12 days. Add to View Price
#92022 WASHER,13.2X20X0.5 92022-1224	$4.01
Available: Ships in 7-12 days. Add to View Price
#92049 SEAL-OIL,VB13193 92049-1398	$5.79
Available: Ships in 7-12 days. Add to View Price
#92081 SPRING,CHANGE LEVER 92081-1829	$8.24
Available: Ships in 7-12 days. Add to View Price
#92144 SPRING,CHANGE PEDAL RETURN 92144-1345	$16.24
Available: Ships in 7-12 days. Add to View Price
#92144A SPRING,LEVER 92144-1850	$3.90
Available: Ships in 7-12 days. Add to View Price
#92150 BOLT,RETURN SPRING 92150-1869 Superseded by 92154-1885	$7.98
Available: Ships in 7-12 days. Add to View Price
#92150A BOLT,CHANGE PEDAL 92150-1908	$18.70
Available: Ships in 7-12 days. Add to View Price
#92151 BOLT,6X20 92151-1450	$2.30
Available: Ships in 7-12 days. Add to View Price
#92160 DAMPER,CHANGE PEDAL 92160-1637	$7.53
Available: Ships in 7-12 days. Add to View Price
