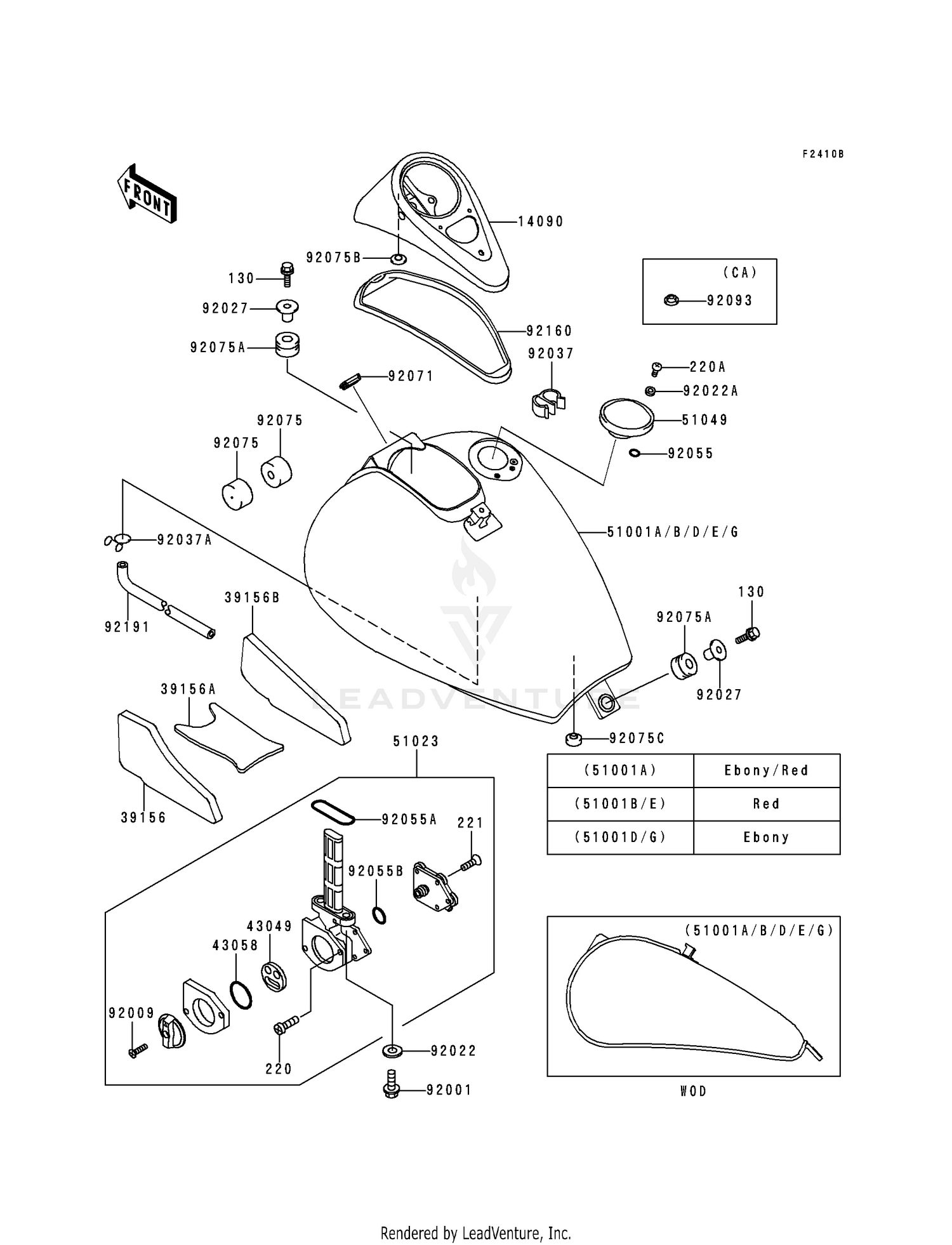

1998 Kawasaki VULCAN 800 FUEL TANK (VN800-A4) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#14090 COVER,METER 14090-1560	$106.18
Available: Ships in 7-12 days. Add to View Price
#39156 PAD,FUEL TANK,LH 39156-1512	$25.35
Available: Ships in 7-12 days. Add to View Price
#39156A PAD,FUEL TANK,CNT 39156-1513	$25.35
Available: Ships in 7-12 days. Add to View Price
#39156B PAD,FUEL TANK,RH 39156-1514 Superseded by 39156-1629	$26.41
Available: Ships in 7-12 days. Add to View Price
#43049 PACKING,TAP VALVE 43049-1075 Superseded by 43049-1099	$9.08
Available: Ships in 7-12 days. Add to View Price
#43058 RING 43058-1083	$8.15
Available: Ships in 7-12 days. Add to View Price
#51001A TANK-COMP-FUEL,EBONY/C.P.RED 51001-1479-2N
Unavailable
#51001B TANK-COMP-FUEL,C.P.RE 51001-1531-A5 Superseded by 51001-1604-A5	$685.07
Available: Ships in 7-12 days. Add to View Price
#51001D TANK-COMP-FUEL,EBONY 51001-1531-H8 Superseded by 51001-1604-H8	$653.62
Available: Ships in 7-12 days. Add to View Price
#51001E TANK-COMP-FUEL,CP RED 51001-1533-A5	$781.26
Available: Ships in 7-12 days. Add to View Price
#51001G TANK-COMP-FUEL,EBONY 51001-1533-H8	$834.21
Available: Ships in 7-12 days. Add to View Price
#51023 TAP-ASSY,FUEL 51023-1219 Superseded by 51023-1260	$124.66
Available: Ships in 7-12 days. Add to View Price
#51049 CAP-TANK,FUEL 51049-1103 Superseded by 51049-1132	$100.91
Available: Ships in 7-12 days. Add to View Price
#130 BOLT-FLANGED,8X30 130H0830 Superseded by 130BA0830	$1.92
Available: Ships in 7-12 days. Add to View Price
#220 SCREW-PAN-CROS,3X8 220B0308 Superseded by 220AA0308	$0.58
Available: Ships in 7-12 days. Add to View Price
#220A SCREW-PAN-CROS,5X10 220D0510 Superseded by 220AA0510	$0.69
Available: Ships in 7-12 days. Add to View Price
#221 SCREW-CSK-CROS,4X14 221B0414 Superseded by 221AA0414	$3.41
Available: Ships in 7-12 days. Add to View Price
#92001 BOLT,FLANGED,6X25 92001-1524 Superseded by 92153-0514	$1.98
Available: Ships in 7-12 days. Add to View Price
#92009 SCREW-CSK-RD-CROS,4X12 92009-1742 Superseded by 222AB0412	$2.48
Available: Ships in 7-12 days. Add to View Price
#92022 WASHER,6.2X11X1.5 92022-183	$3.57
Available: Ships in 7-12 days. Add to View Price
#92022A WASHER,5.1X10X1.0 92022-1977	$3.40
Available: Ships in 7-12 days. Add to View Price
#92027 COLLAR,L=19.3 92027-1780	$6.12
Available: Ships in 7-12 days. Add to View Price
#92037 CLAMP,BRAKE HOSE & SE 92037-1458	$6.07
Available: Ships in 7-12 days. Add to View Price
#92037A CLAMP,TUBE 92037-147	$6.57
Available: Ships in 7-12 days. Add to View Price
#92055 RING-O 92055-1023	$3.57
Available: Ships in 7-12 days. Add to View Price
#92055A RING-O,FUEL TAP PACKING 92055-1112	$4.66
Available: Ships in 7-12 days. Add to View Price
#92055B RING-O 92055-1539 Superseded by 92055-1649	$6.00
Available: Ships in 7-12 days. Add to View Price
#92071 GROMMET 92071-1187	$4.66
Available: Ships in 7-12 days. Add to View Price
#92075 DAMPER,FUEL TANK 92075-125	$5.79
Available: Ships in 7-12 days. Add to View Price
#92075A DAMPER 92075-1736	$6.12
Available: Ships in 7-12 days. Add to View Price
#92075B DAMPER,RUBBER 92075-261	$4.01
Available: Ships in 7-12 days. Add to View Price
#92075C DAMPER,9X24X14 92075-281	$5.79
Available: Ships in 7-12 days. Add to View Price
#92093 SEAL,FUEL TANK CAP 92093-1030	$7.29
Available: Ships in 7-12 days. Add to View Price
#92160 DAMPER,METER COVER 92160-1593	$43.54
Available: Ships in 7-12 days. Add to View Price
#92191 TUBE 92191-1015	$27.70
Available: Ships in 7-12 days. Add to View Price
