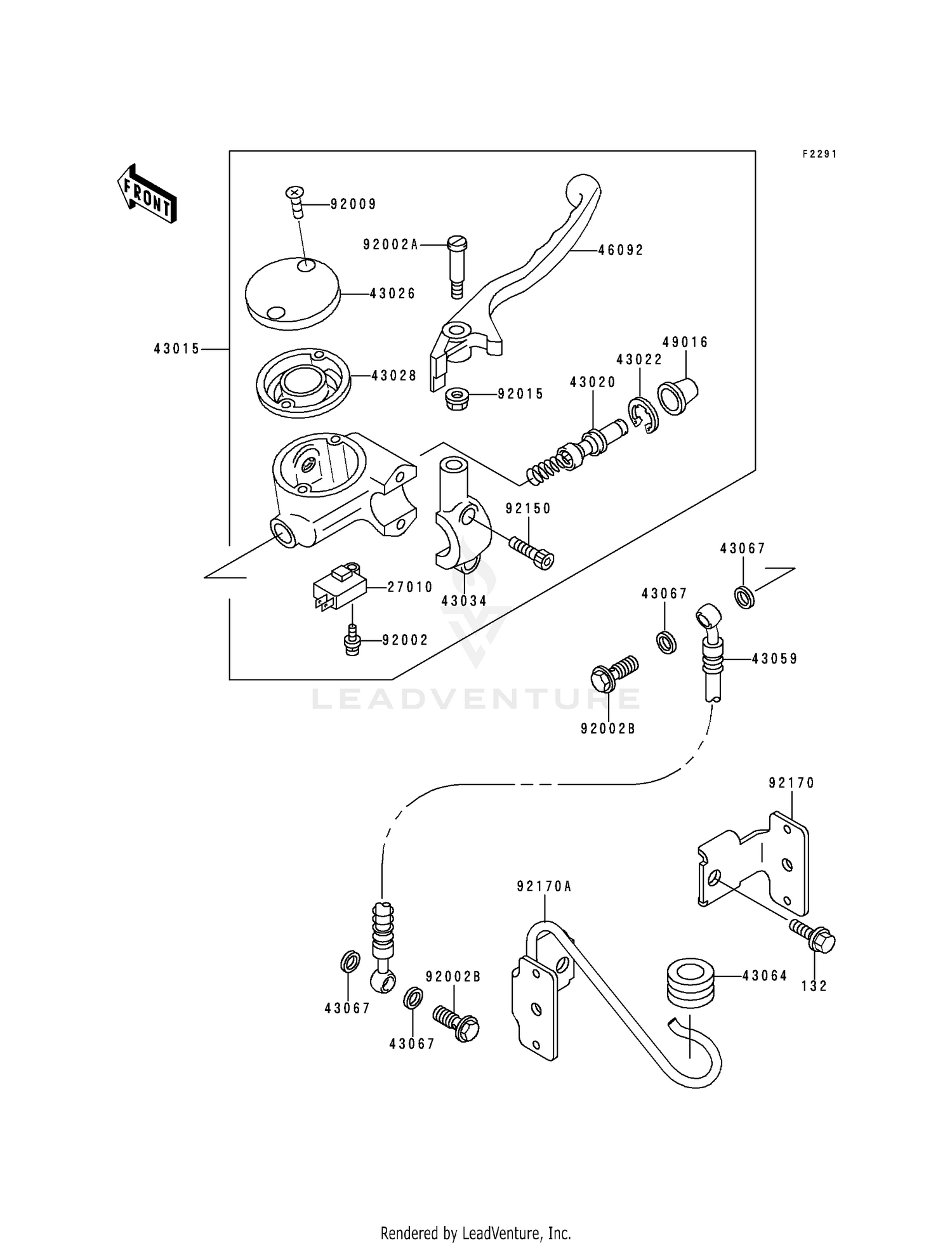

1998 Kawasaki VULCAN 800 FRONT MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL
132E0610
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1170
|
$26.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1511
Superseded by 43015-0054
|
$405.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1098
|
$47.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1078
|
$55.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1071
|
$21.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43034
HOLDER-BRAKE
43034-1102
|
$47.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43059
HOSE-BRAKE,FR
43059-1894
Superseded by 43095-1278
|
$128.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43064
GROMMET,HOSE CLAMP
43064-006
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAK
46092-1172
|
$27.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002A
BOLT,LEVER SET
92002-1561
|
$10.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002B
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW
92009-1440
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150
BOLT,SOCKET,6MM
92150-1025
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170
CLAMP,HOSE
92170-1554
|
$11.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170A
CLAMP,HOSE
92170-1611
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
