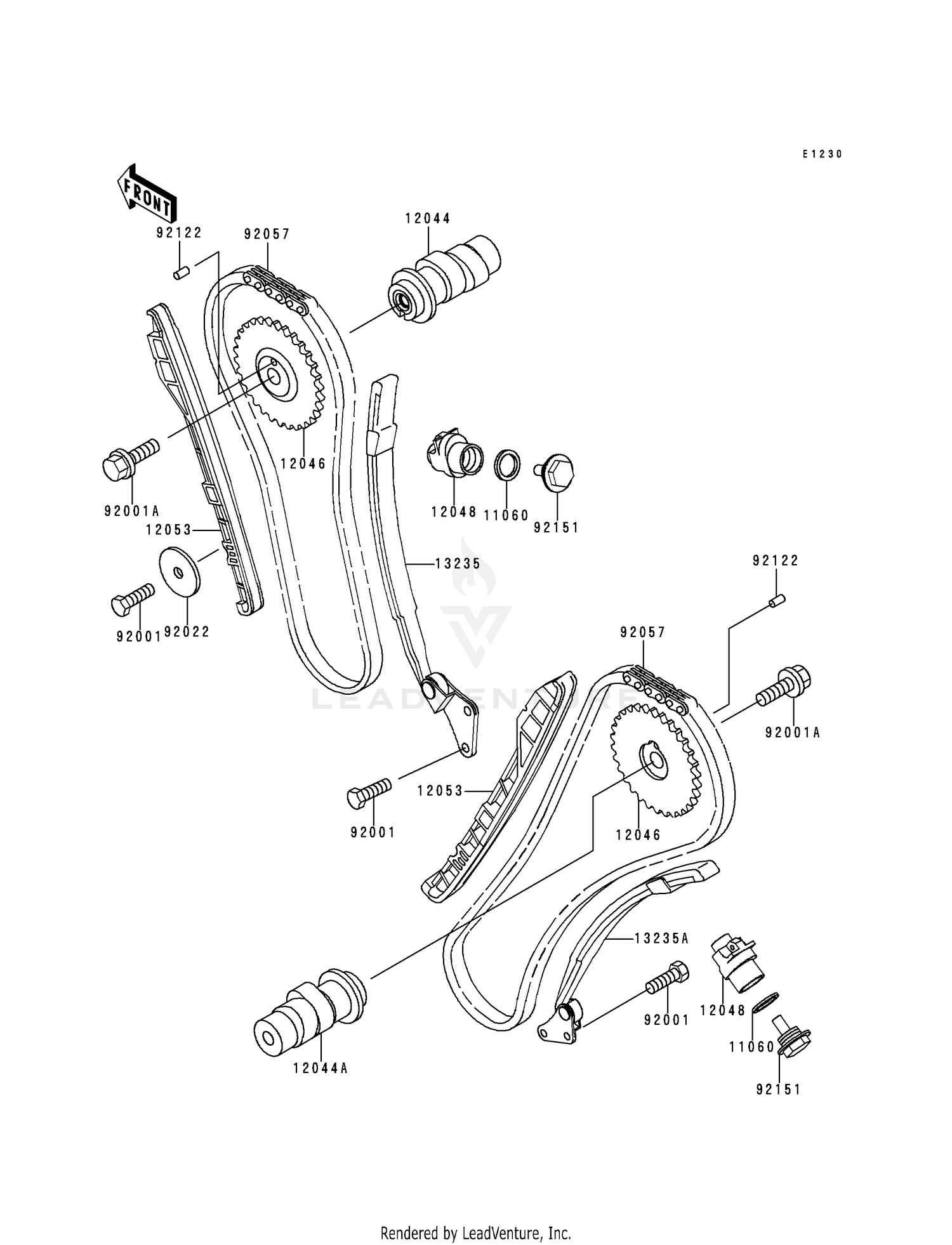

1998 Kawasaki VULCAN 800 CAMSHAFT(S)/TENSIONER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,TENSIONER
11060-1682
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12044
CAMSHAFT-VALVE,FR
12044-1377
|
$195.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12044A
CAMSHAFT-VALVE,RR
12044-1378
|
$176.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12046
SPROCKET
12046-1171
|
$44.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12048
TENSIONER-ASSY
12048-1145
|
$104.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12053
GUIDE-CHAIN
12053-1354
|
$54.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13235
GUIDE-COMP,FR
13235-1067
|
$97.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13235A
GUIDE-COMP,RR
13235-1068
|
$99.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,6X16
92001-1457
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001A
BOLT,10X23
92001-1859
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,7X28X1.6
92022-227
Superseded by 92022-1282
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92057
CHAIN,CAM
92057-1403
|
$97.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92122
ROLLER,4X9.8
92122-1197
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92151
BOLT,TENSIONER
92151-1136
|
$13.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
