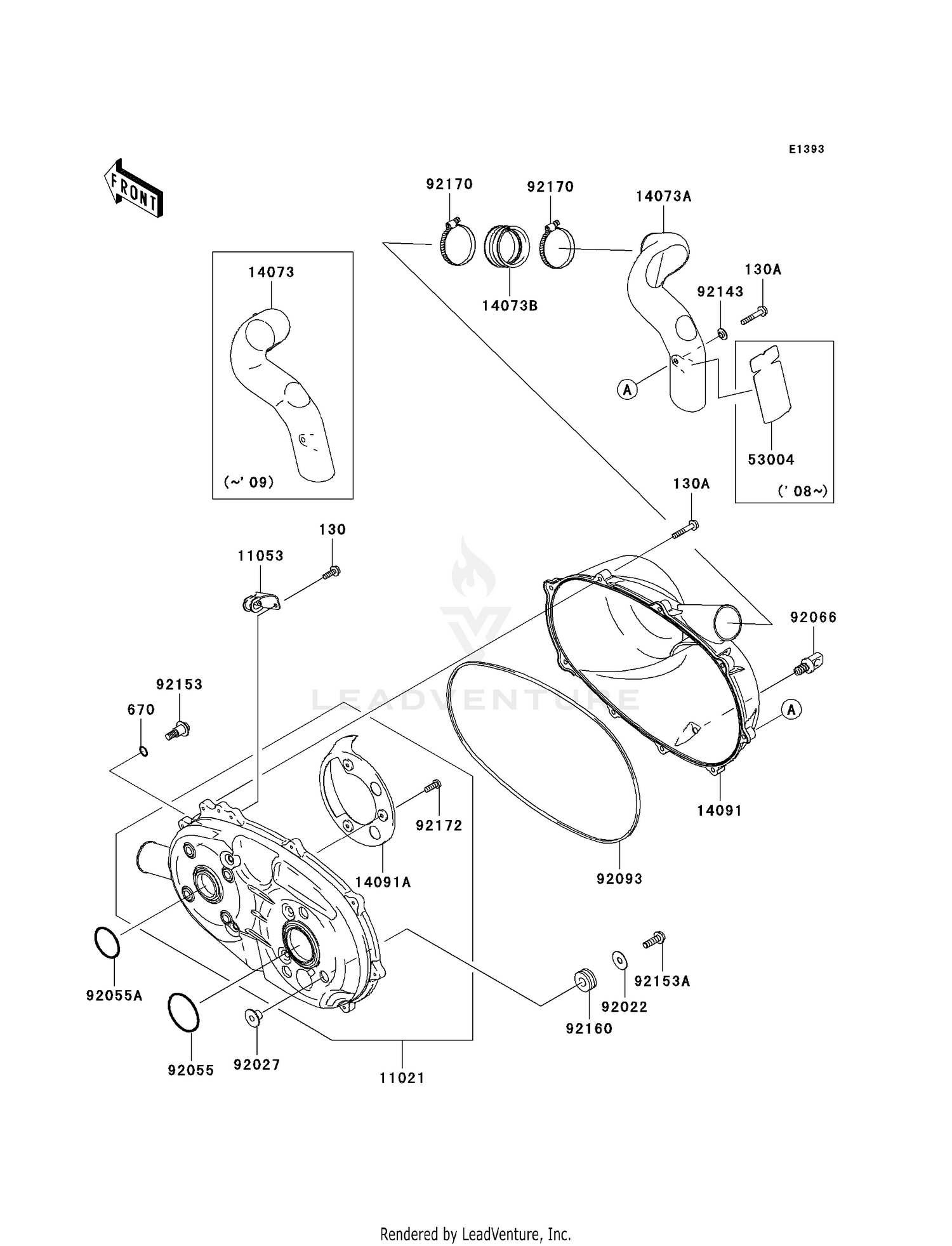

2009 Kawasaki MULE 600 CONVERTER COVER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#130 BOLT-FLANGED,6X18 130BB0618	$1.69
Available: Ships in 7-12 days. Add to View Price
#130A BOLT-FLANGED,6X35 130BB0635	$4.44
Available: Ships in 7-12 days. Add to View Price
#670 O RING,12MM 670D2012	$2.73
Available: Ships in 7-12 days. Add to View Price
#11021 CASE-ASSY,BELT CONVER 11021-0003	$115.03
Available: Ships in 7-12 days. Add to View Price
#11053 BRACKET 11053-1483	$7.02
Available: Ships in 7-12 days. Add to View Price
#14073 DUCT,EXHAUST 14073-0071 Superseded by 14073-0287	$45.22
Available: Ships in 7-12 days. Add to View Price
#14073B DUCT,JOINT 14073-1775	$4.11
Available: Ships in 7-12 days. Add to View Price
#14091 COVER,BELT CONVERTER 14091-0192	$80.21
Available: Ships in 7-12 days. Add to View Price
#14091A COVER 14091-0391	$23.65
Available: Ships in 7-12 days. Add to View Price
#53004 MAT 53004-0030	$31.20
Available: Ships in 7-12 days. Add to View Price
#92022 WASHER,8.5X26X0.8 92022-101	$4.01
Available: Ships in 7-12 days. Add to View Price
#92027 COLLAR 92027-4015	$9.90
Available: Ships in 7-12 days. Add to View Price
#92055 RING-O,64X4 92055-0048	$3.85
Available: Ships in 7-12 days. Add to View Price
#92055A RING-O 92055-1501	$4.15
Available: Ships in 7-12 days. Add to View Price
#92066 PLUG,DRAIN,11X19 92066-1580	$5.64
Available: Ships in 7-12 days. Add to View Price
#92093 SEAL 92093-0018 Superseded by 92093-0179	$20.14
Available: Ships in 7-12 days. Add to View Price
#92143 COLLAR 92143-1087	$4.01
Available: Ships in 7-12 days. Add to View Price
#92153 BOLT,8X26.5 92153-0594	$4.28
Available: Ships in 7-12 days. Add to View Price
#92153A BOLT,FLANGED,8X25 92153-0953	$2.57
Available: Ships in 7-12 days. Add to View Price
#92160 DAMPER 92160-1012	$5.14
Available: Ships in 7-12 days. Add to View Price
#92170 CLAMP 92170-1764	$10.69
Available: Ships in 7-12 days. Add to View Price
#92172 SCREW,5X14 92172-0166	$2.01
Available: Ships in 7-12 days. Add to View Price
