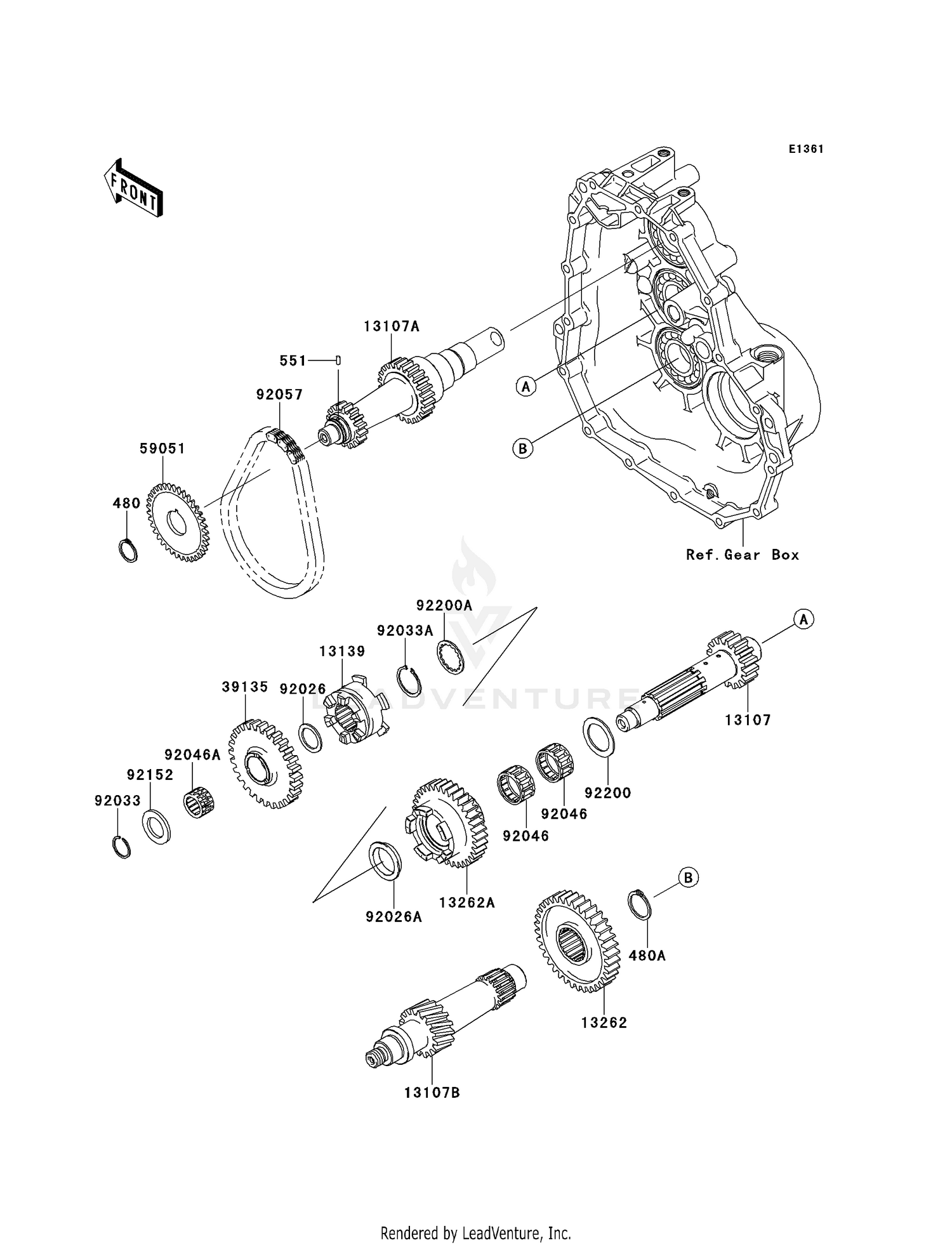

2013 Kawasaki MULE 600 TRANSMISSION OEM Parts Diagram

Item MSRP Qty
#480 CIRCLIP-TYPE-C,25MM
480J2500
$1.98
Available to order.
Add to View Price
#480A CIRCLIP-TYPE-C,32MM
480J3200
$1.74
Available to order.
Add to View Price
#551 PIN-DOWEL,3X8
551A0308
$0.55
Available to order.
Add to View Price
#13107 SHAFT,SECOND,18T
13107-0078
$208.91
Available to order.
Add to View Price
#13107A SHAFT,FIRST,INPUT,16T&24T
13107-0086
$245.41
Available to order.
Add to View Price
#13107B SHAFT,THIRD,16T
13107-0090
$245.41
Available to order.
Add to View Price
#13139 SHIFTER,FR/RR
13139-0004
$93.40
Available to order.
Add to View Price
#13262 GEAR-TRANSMISSION SPUR,36T
13262-0108
$96.02
Available to order.
Add to View Price
#13262A GEAR-TRANSMISSION SPUR,35T
13262-0142
$142.17
Available to order.
Add to View Price
#39135 SPROCKET-DRIVEN,30T
39135-0001
$124.20
Available to order.
Add to View Price
#59051 GEAR-SPUR,37T
59051-0049
$18.77
Available to order.
Add to View Price
#92026 SPACER,21.2X29X1.6
92026-1568
$7.42
Available to order.
Add to View Price
#92026A SPACER,28X39X8
92026-1629
$15.23
Available to order.
Add to View Price
#92033 RING-SNAP,20MM
92033-015
$4.01
Available to order.
Add to View Price
#92033A RING-SNAP,25.9X30.6X1.2
92033-1037
$4.37
Available to order.
Add to View Price
#92046 BEARING-NEEDLE,FWF-283317
92046-1278
$22.29
Available to order.
Add to View Price
#92046A BEARING-NEEDLE,REVERSE GEAR
92046-1279
$19.11
Available to order.
Add to View Price
#92057 CHAIN,REVERSE,23RH302-38ASM
92057-0072
$42.37
Available to order.
Add to View Price
#92152 COLLAR,21.2X34.0X3.0
92152-0241
$7.02
Available to order.
Add to View Price
#92200 WASHER,28.2X40.0X1.6
92200-0090
$4.28
Available to order.
Add to View Price
#92200A WASHER,28.5X34.0X1.5
92200-1240
$9.55
Available to order.
Add to View Price
