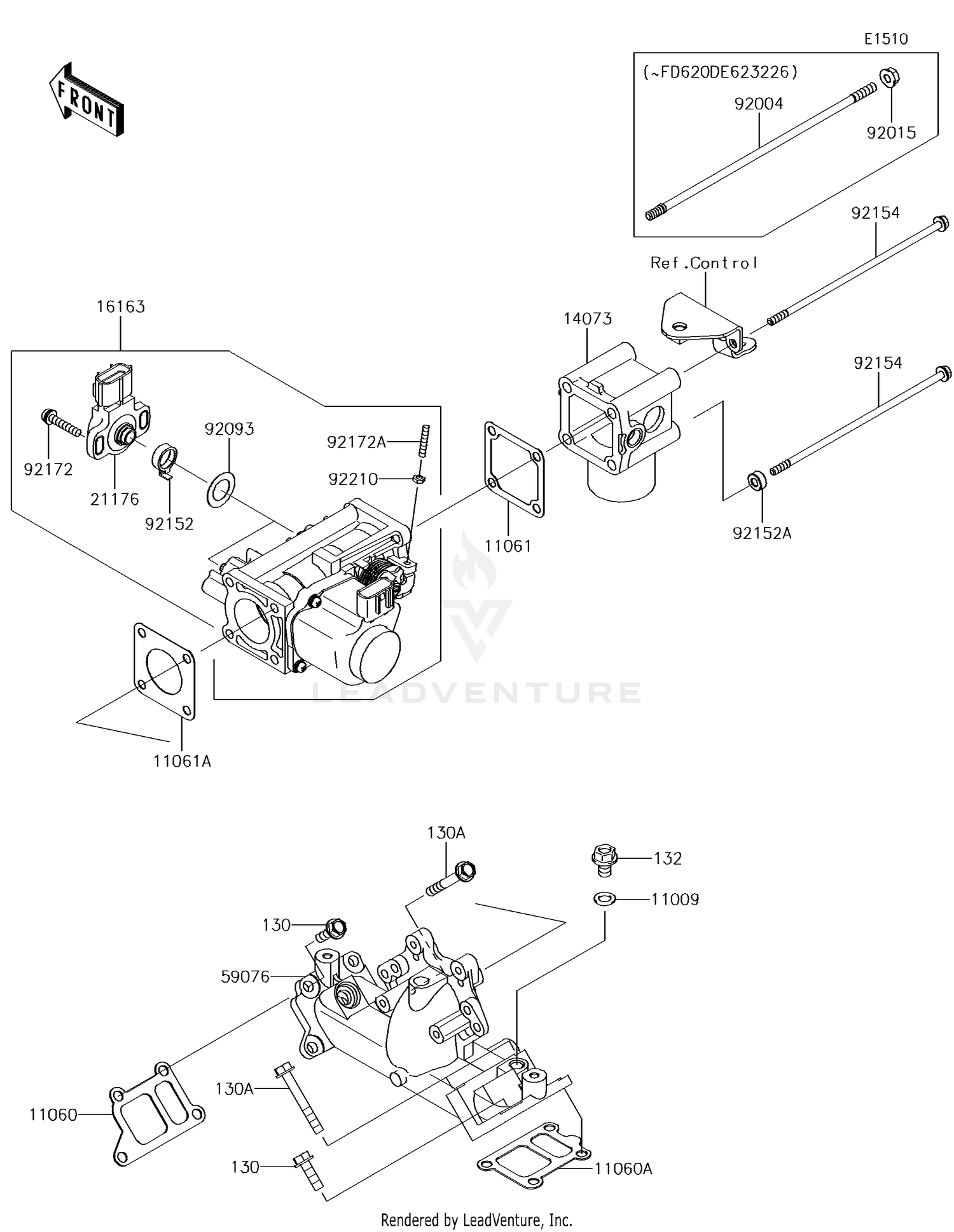

2015 Kawasaki MULE 4010 4X4 Throttle OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11009 GASKET,8.2X14X1.0 11009-1344	$3.14
Available: Ships in 7-12 days. Add to View Price
#11060 GASKET,INTAKE MANIFOLD 11060-2087	$3.30
Available: Ships in 7-12 days. Add to View Price
#11060A GASKET,INTAKE MANIFOLD 11060-2088	$2.78
Available: Ships in 7-12 days. Add to View Price
#11061 GASKET 11061-0861	$3.43
Available: Ships in 7-12 days. Add to View Price
#11061A GASKET 11061-2179	$3.35
Available: Ships in 7-12 days. Add to View Price
#130 BOLT-FLANGED,6X20 130BA0620	$1.69
Available: Ships in 7-12 days. Add to View Price
#130A BOLT-FLANGED,6X45 130CA0645	$1.44
Available: Ships in 7-12 days. Add to View Price
#132 BOLT-FLANGED-SMALL,8X12 132BB0812	$1.76
Available: Ships in 7-12 days. Add to View Price
#14073 DUCT 14073-0780	$100.06
Available: Ships in 7-12 days. Add to View Price
#16163 THROTTLE-ASSY 16163-0793	$877.60
Available: Ships in 7-12 days. Add to View Price
#21176 SENSOR 21176-2112	$157.41
Available: Ships in 7-12 days. Add to View Price
#59076 MANIFOLD-INTAKE 59076-0718	$256.71
Available: Ships in 7-12 days. Add to View Price
#92004 STUD,6X200 92004-2161	$6.69
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,FLANGED,6MM 92015-1367	$3.59
Available: Ships in 7-12 days. Add to View Price
#92093 SEAL 92093-2133	$8.11
Available: Ships in 7-12 days. Add to View Price
#92152 COLLAR 92152-2093	$6.45
Available: Ships in 7-12 days. Add to View Price
#92172 SCREW 92172-0254	$2.89
Available: Ships in 7-12 days. Add to View Price
#92172A SCREW 92172-2106	$4.62
Available: Ships in 7-12 days. Add to View Price
#92210 NUT 92210-2120	$1.58
Available: Ships in 7-12 days. Add to View Price
