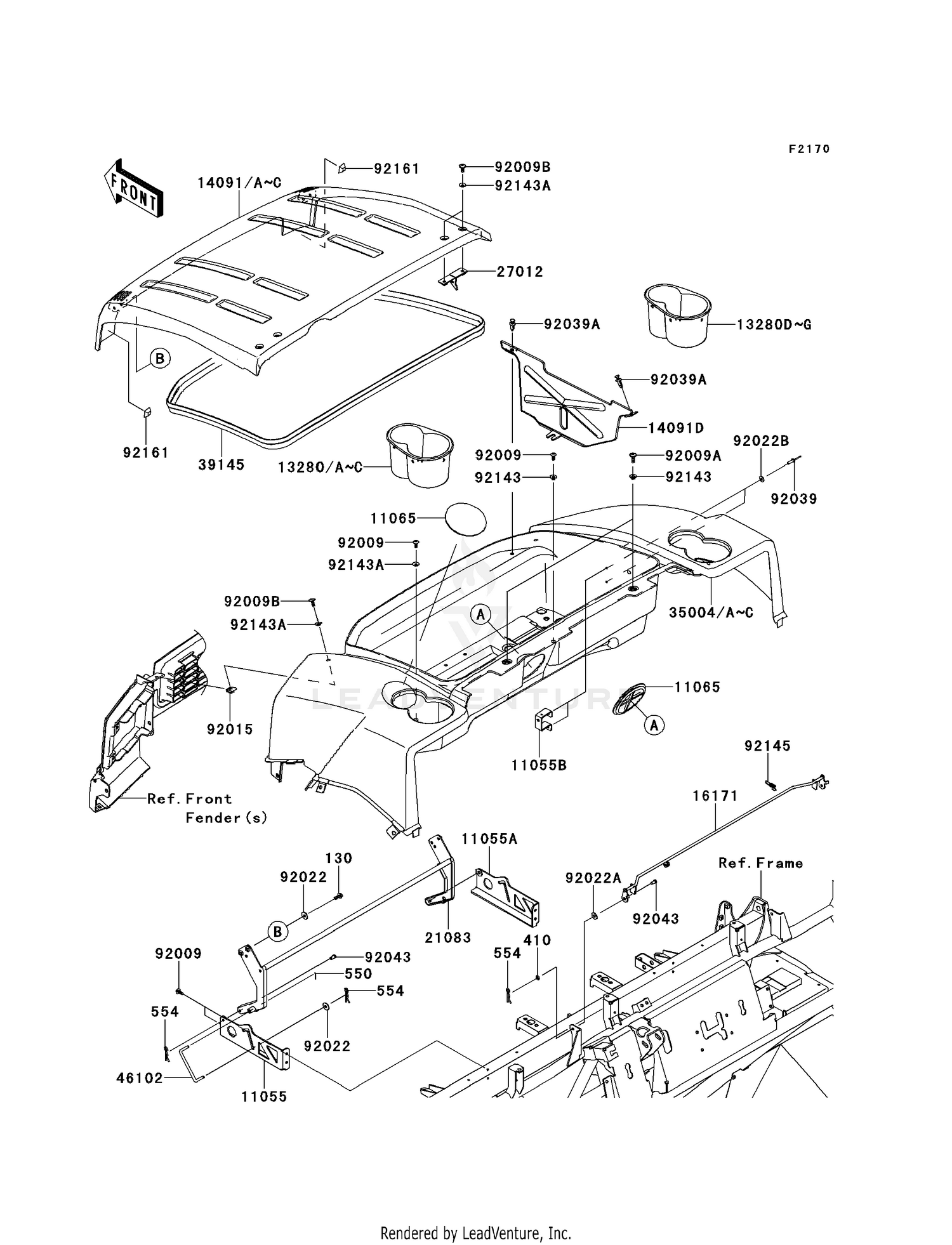

2011 Kawasaki MULE 4010 4X4 FENDERS (M9F-MBF) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11055
BRACKET,HINGE,LH
11055-0037
|
$20.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11055A
BRACKET,HINGE,RH
11055-0038
|
$20.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11055B
BRACKET,RESERVOIR TANK
11055-0124
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11065
CAP,F.BLACK
11065-1053-6Z
|
$7.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280
HOLDER,CUP HOLDER,LH,D.R.RED
13280-0265-16L
|
$12.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280C
HOLDER,CUP HOLDER,LH,
13280-0265-839
|
$13.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280D
HOLDER,CUP HOLDER,RH,D.R.RED
13280-0266-16L
|
$12.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280G
HOLDER,CUP HOLDER,RH,
13280-0266-839
|
$13.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14091
COVER,FRONT FENDER,D.R.RED
14091-0829-16L
|
$165.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14091C
COVER,FRONT FENDER,S.
14091-0829-839
|
$165.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14091D
COVER,RESERVOIR TANK
14091-1715
|
$28.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16171
LINK
16171-0013
|
$33.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21083
ARM,HOOD
21083-0051
|
$70.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27012
HOOK,HOOD
27012-0119
|
$5.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35004
FENDER-FRONT,CNT,D.R.RED
35004-0096-16L
|
$310.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35004C
FENDER-FRONT,CNT,S.BL
35004-0096-839
|
$310.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39145
TRIM-SEAL,L=2350
39145-0032
|
$43.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46102
ROD
46102-0103
|
$3.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1166
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009A
SCREW,6X22,BLACK
92009-1256
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009B
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,CLAMP,6MM
92015-1678
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6,BLACK
92022-1346
|
$0.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022A
WASHER,7X18X1.2
92022-1545
|
$1.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022B
WASHER,4.3X12.5X1
92022-1949
|
$3.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92039
RIVET
92039-1150
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92039A
RIVET
92039-1229
Superseded by 92039-0776
|
$1.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043
PIN,6X9
92043-1626
|
$2.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92143
COLLAR
92143-1057
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92143A
COLLAR
92143-1087
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING
92145-0215
|
$4.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER,FR HOOD
92161-0790
|
$2.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130BB0616
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410AA0600
|
$1.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#550
PIN COTTER 1.6X15
550AA1615
Superseded by 550D1615
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#554
PIN-SNAP,1.2X21.2
554DA0600
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
