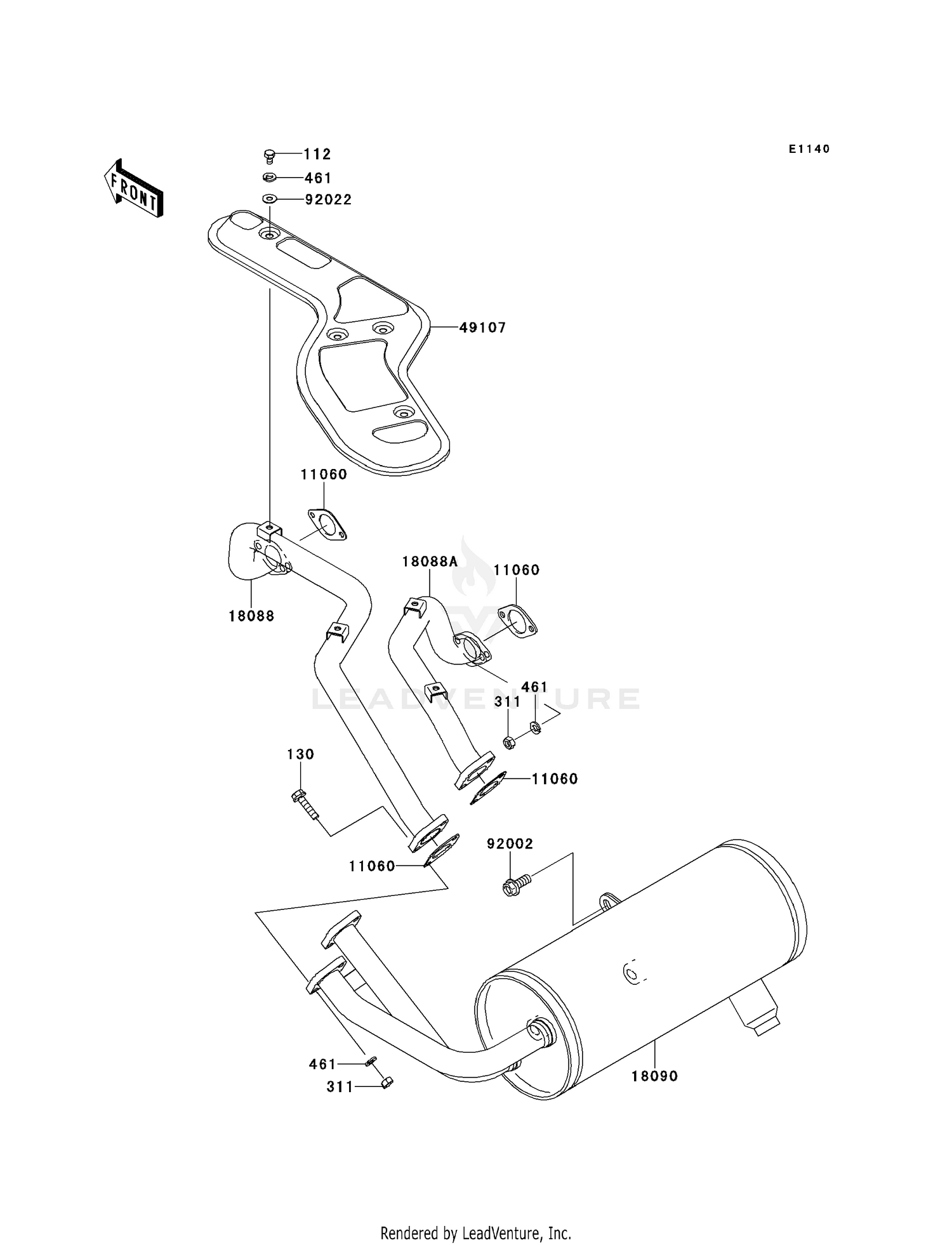

2010 Kawasaki MULE 4010 4X4 MUFFLER(S) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET,6X10
112BB0610
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130BA0625
|
$1.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311BA0600
|
$2.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461DA0600
|
$0.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11060
GASKET,EXHAUST PIPE
11060-2079
|
$4.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18088
PIPE-EXHAUST,FR
18088-0518
|
$87.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18088A
PIPE-EXHAUST,RR
18088-0519
|
$62.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18090
BODY-COMP-MUFFLER
18090-1912
Superseded by 18091-1104
|
$193.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49107
COVER-EXHAUST PIPE
49107-1211
|
$44.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,8X20
92002-1250
|
$5.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1.0
92022-1093
|
$2.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
